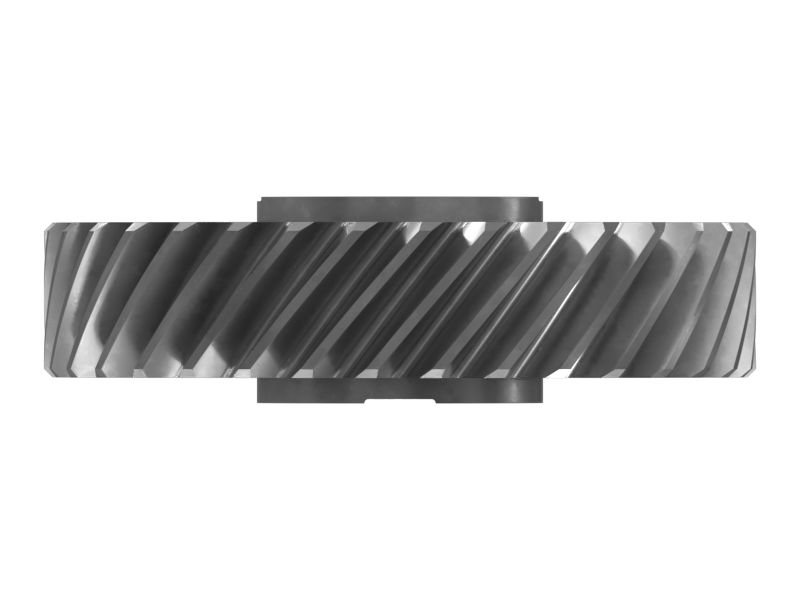

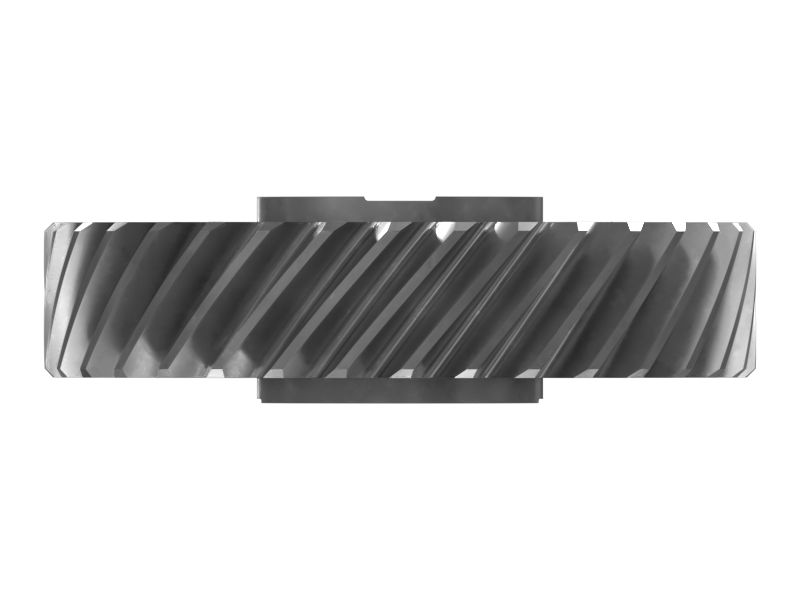

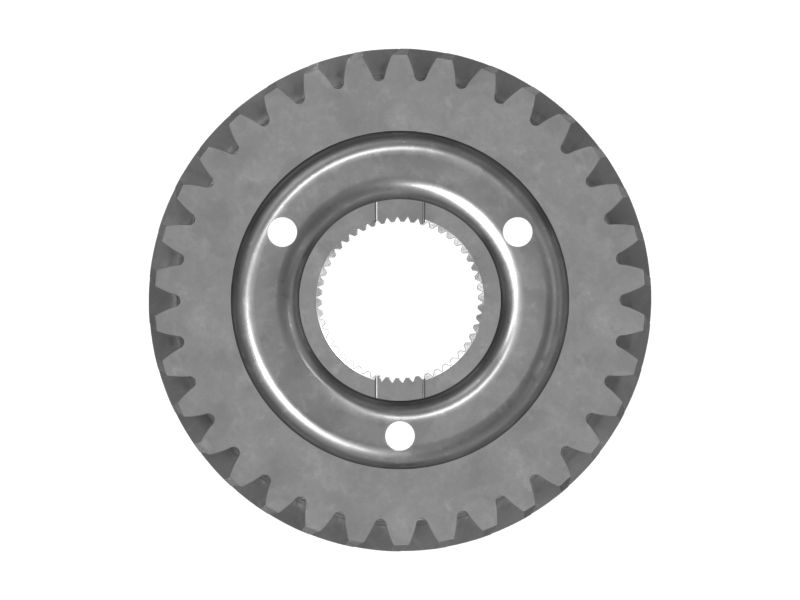

9W-9461: ШЕСТЕРНЯ РЕДУКТОРА

Description:
Gear for use in bevel & transfer gear group that transmits power from the transmission to axles, thru bevel gear & pinion, and transfer gears on Cat machines.

Attributes:
• Material: Steel
• Helical Gear Number of Teeth: 34
• Helix Hand: LH
• Internal Spline Number of Teeth: 50
• Cat gears are machined from carefully selected materials to exacting specifications that match the loads encountered in Cat machines. They are manufactured using special, and in some cases proprietary, heat treat processes — including case carburizing, nitriding, and induction hardening. Cat gears have the industry's highest power density, or the amount of power a gear can transmit relative to its size and are designed with reusability in mind. Consequently, they are more durable and keep your overall machine operating costs down.

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Outside Diameter (mm): 249.13

• Inside Diameter (mm): 78.26

• Length (mm): 72.00

• Outside Diameter (in): 9.808

• Inside Diameter (in): 3.081

• Length (in): 2.834

• Material: Low Alloy Steel
