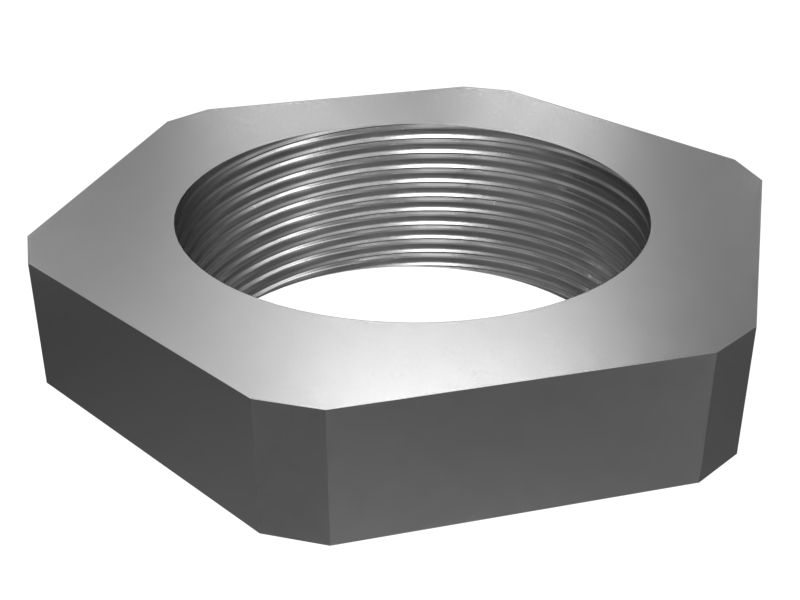

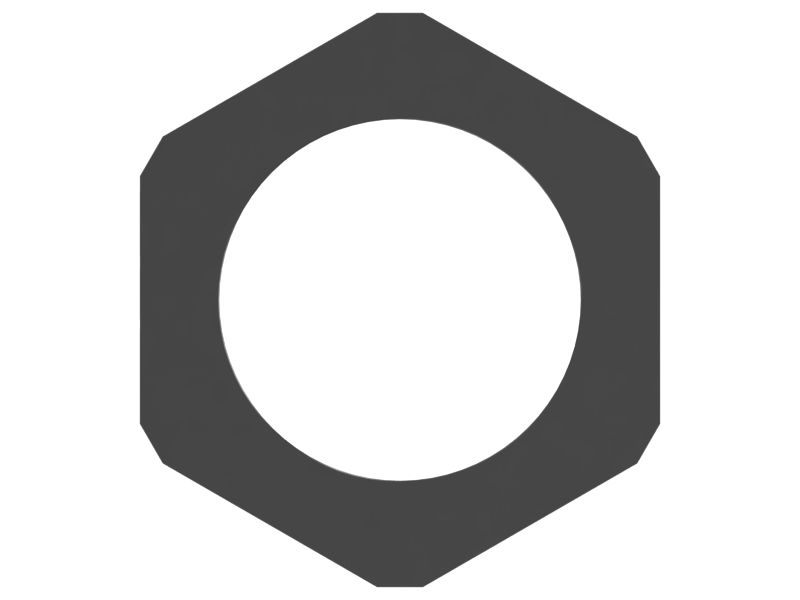

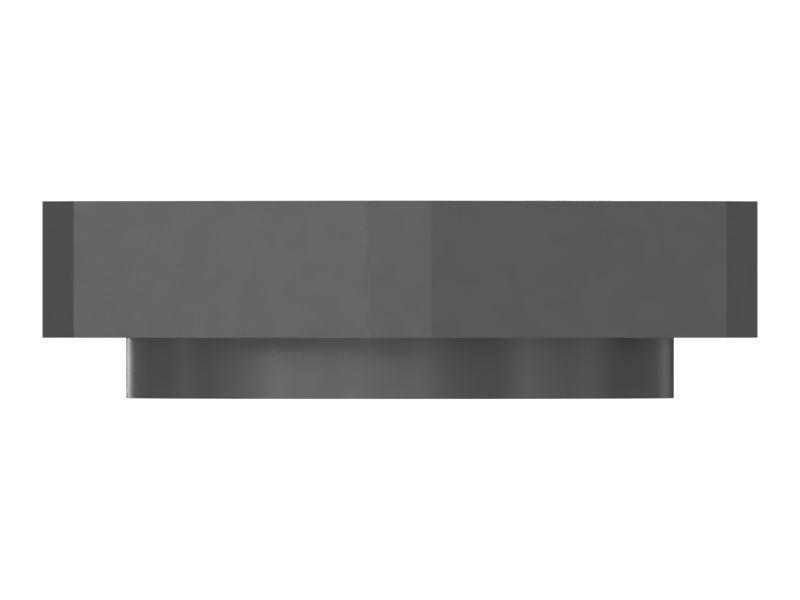

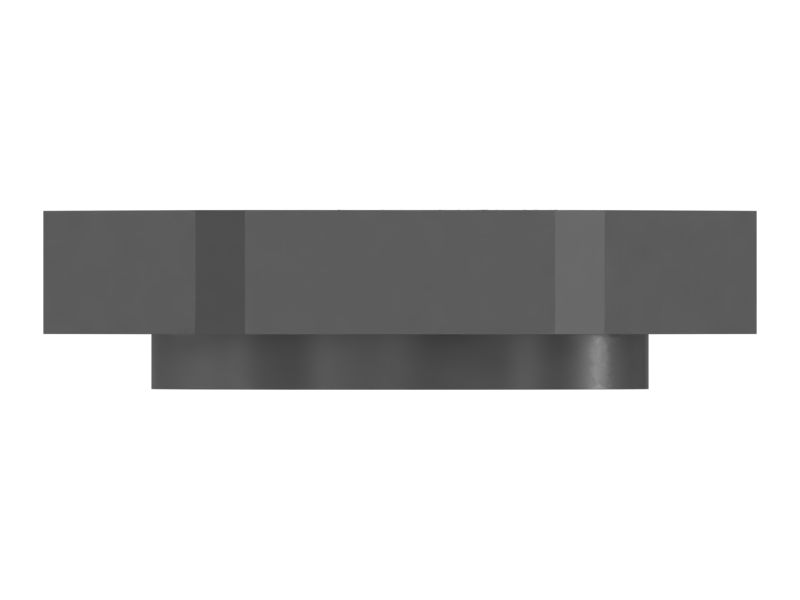

9V-6561: ГАЙКА

The Drive Pump Gear Stake Lock Nut is engineered to secure drive pump gears in equipment, ensuring accurate alignment and reliable performance, this nut features a unique stake lock design, wherein a portion of the nut is deformed to engage with a slot and groove on the shaft, effectively preventing rotational movement and loosening of the gear assembly. Its threaded design facilitates easy installation and tightening onto the shaft, guaranteeing a secure and stable attachment point for the drive pump gear.

Attributes:
• Resists wear, corrosion, and fatigue.
• High-grade materials for durability.
• Anti-vibration design maintains stability.
• Withstands High loads and intense forces.
• Threaded design allows for easy installation and tightening.

Applications:
The Drive Pump Gear Stake Lock Nut is installed at the end of the shaft where the drive pump gear is mounted, preventing rotational movement and ensuring that the drive pump gear remains securely fastened in place.

• Nut Type: Hex

• Thread Size (in - TPI) (in): 13/6-18

• Thread Size (dia x pitch) (mm): 2.157x18

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Coating: Oil with Corrosion Inhibitor

• Hand of Thread: RH

• Material: Alloy Mixed
