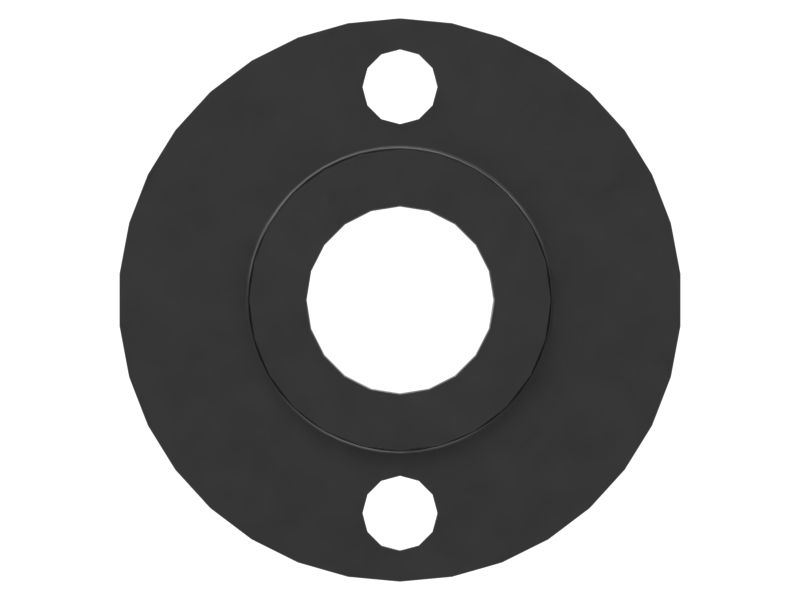

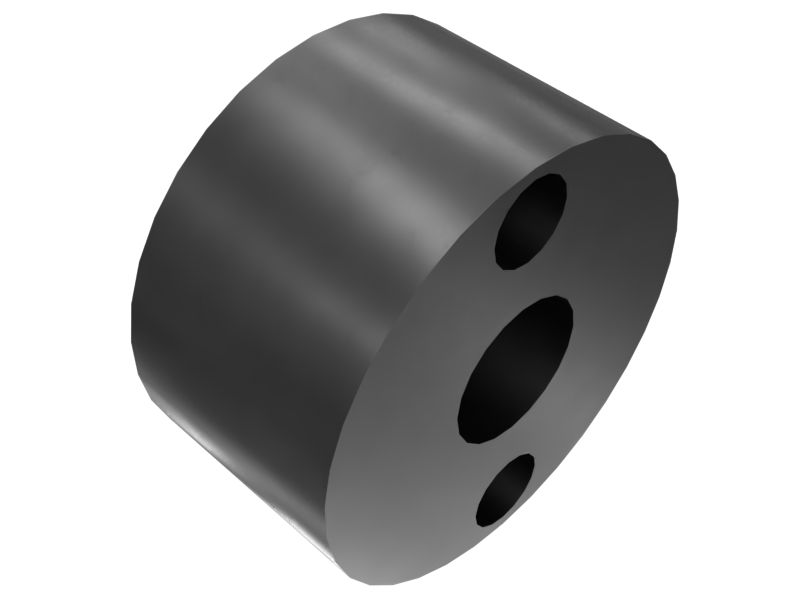

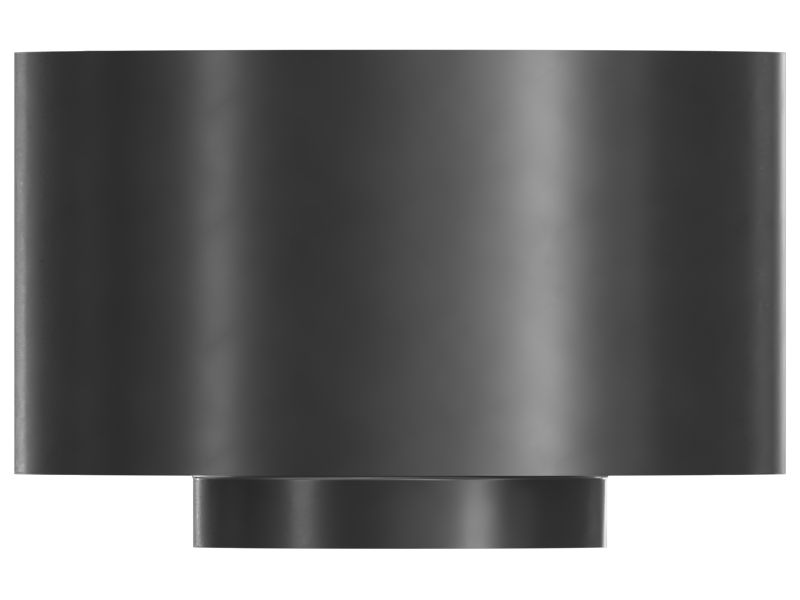

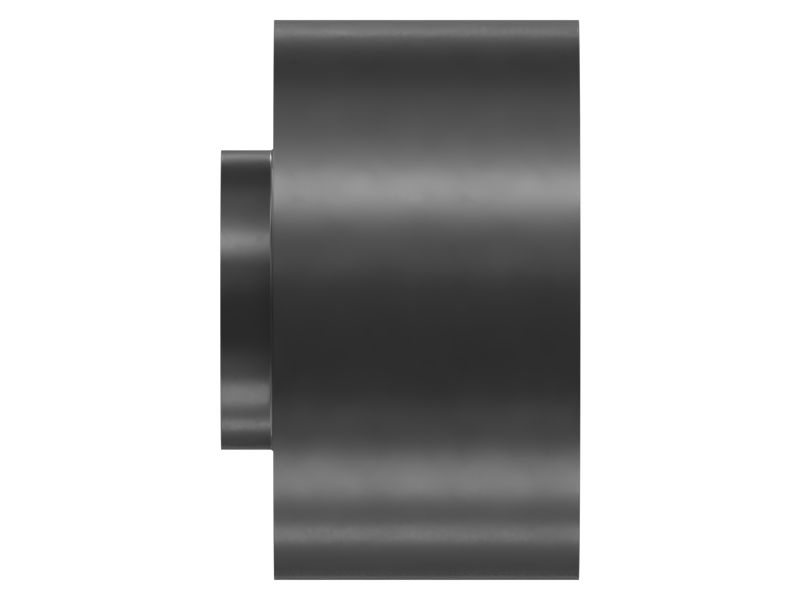

9U-7678: Track Pin Assembler Base

The Track Pin Assembler Base is a component in the undercarriage system of track equipment, used to join the individual track links. It enables the continuous movement of the track, providing the necessary stability and traction required for equipment. This distributes the weight and ensures the smooth articulation of the track as the equipment moves. The base pin, along with other associated components, maintains the integrity of the track link connections under high operational stress, preventing misalignment, and failure.

Attributes:
• Offers hydraulic pressure regulation for controlled pin extraction.
• Facilitates controlled force for the assembly of track pins.
• Provides a secure grip to prevent slippage.
• Ensures safe and efficient assembly without damaging the track chain.

Applications:
The Track Pin Assembler Base is located in the undercarriage system of tracked equipment, connecting individual track links to ensure consistent, smooth movement.

• Weight (kg): 0.858

• Weight (lb): 1.892

• Outer Diameter (mm): 67

• Outer Diameter (in): 2.638

• Width (mm): 42.8

• Width (in): 1.685

• Hole Size (mm): 9

• Hole Size (in): 0.354

• Internal Thread: 1"-8-2B

• Material: Steel,Low Alloy Steel,Coating Mixed
