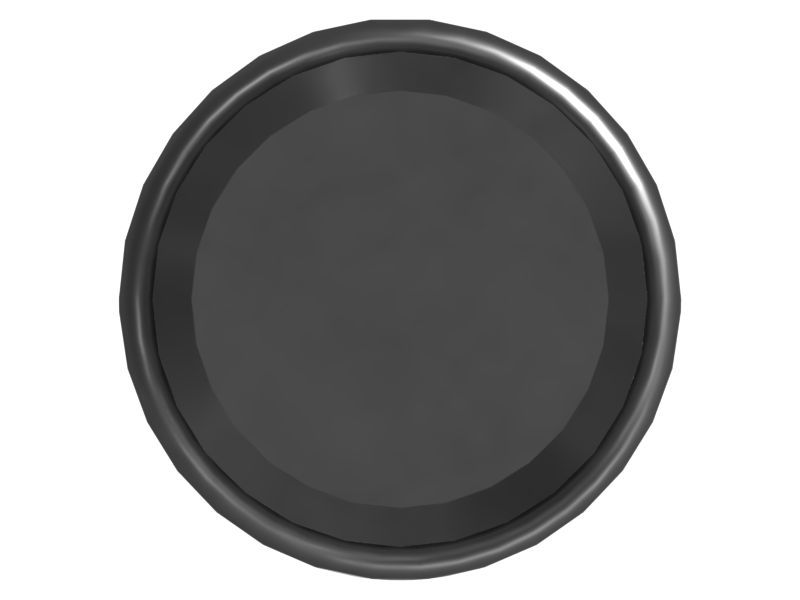

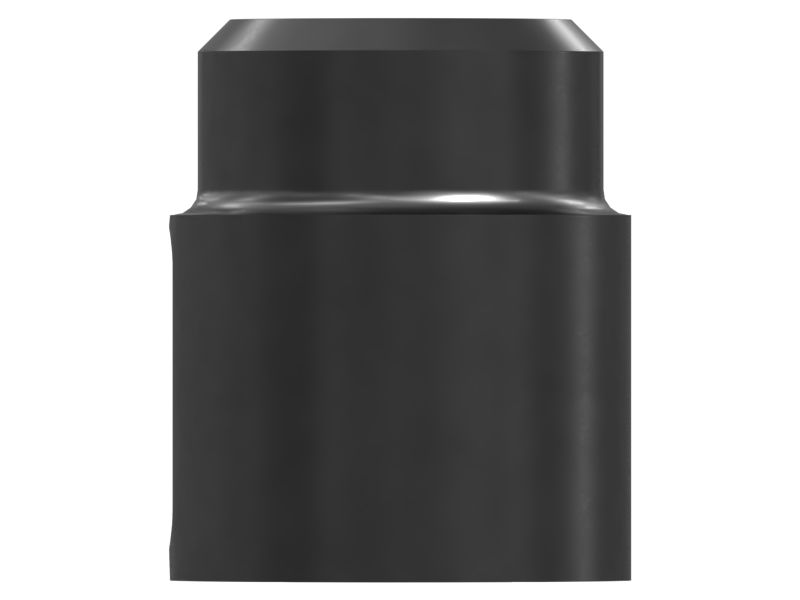

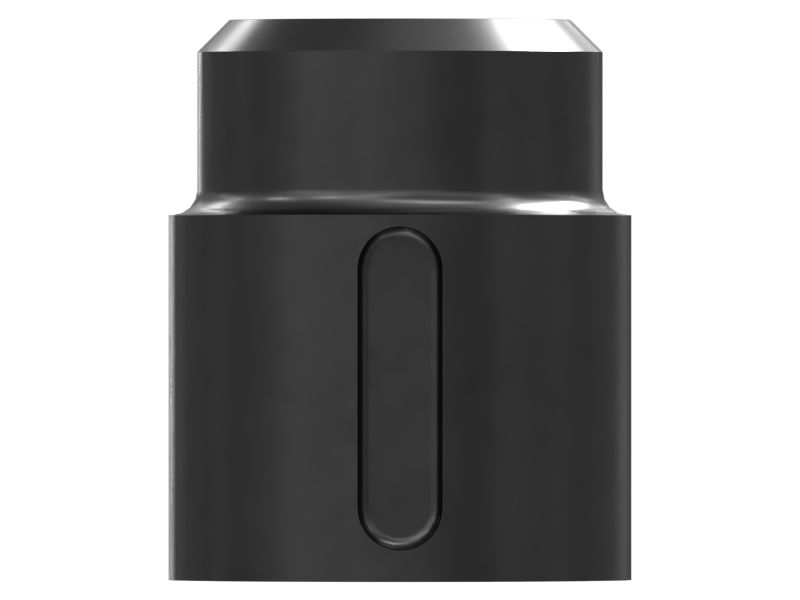

9U-7668: 36.09mm Outer Diameter Track Pin Plunger

Cat® Track Pin Plunger adjusts and secures the pitch of undercarriage tracks to maintain proper tens

Заинтересовал товар?

Имя

Почта

Комментарий

Схема

Не найдено

Описание для номера по каталогу 9U-7668

The Track Pin Plunger is used to facilitate the adjustment of track pitch, ensuring correct tension and alignment of the tracks. It consists of a pin and plunger mechanism that locks the tracks in place, maintaining optimal track performance and reducing wear, which is necessary for reliable operation and longevity of the undercarriage system.

Attributes:
• Ensures accurate positioning and engagement within the track assembly.
• Compatible with a 7-pitch pin assembly track system.
• Resistance to wear and tear from debris and contaminants.
• Rockwell hardness length ranges from C40 to 48.

Applications:
The Track Pin Plunger is located in the undercarriage system of equipment, to adjust and secure the track pitch for proper alignment and tension.

WarningOutline Предупреждение: При использовании этого изделия можно подвергнуться воздействию различных химических веществ, включая свинец и соединения свинца, которые, как установлено в штате Калифорния, вызывают рак и врожденные дефекты или другие нарушения репродуктивной функции. Дополнительную информацию см. на веб-сайте www.P65Warnings.ca.gov.

Технические характеристики номера по каталогу 9U-7668

  • Outer Diameter (mm): 36.09

  • Outer Diameter (in): 1.421

  • Height (mm): 43.69

  • Height (in): 1.72

  • Hole Size (mm): 25.4

  • Hole Size (in): 1

  • Weight (kg): 0.185

  • Weight (lb): 0.408

  • Material: Steel,Low Alloy Steel,Coating Mixed
