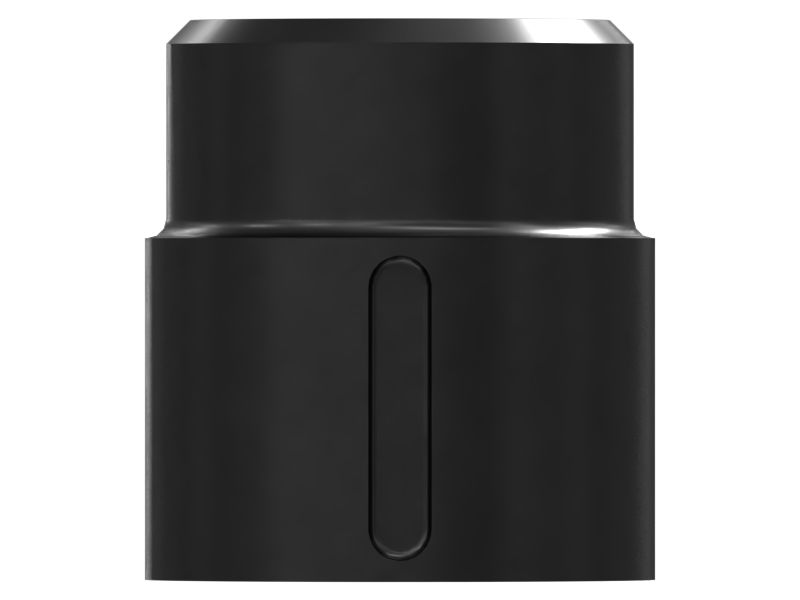

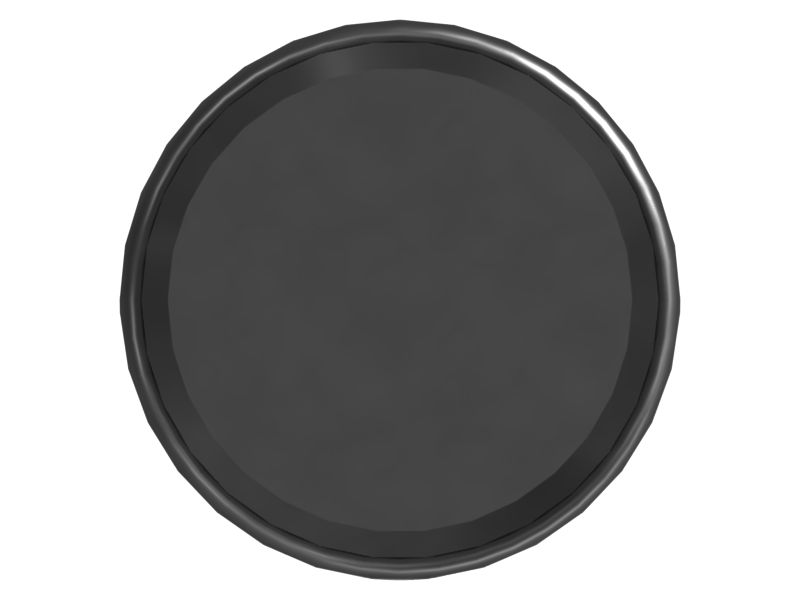

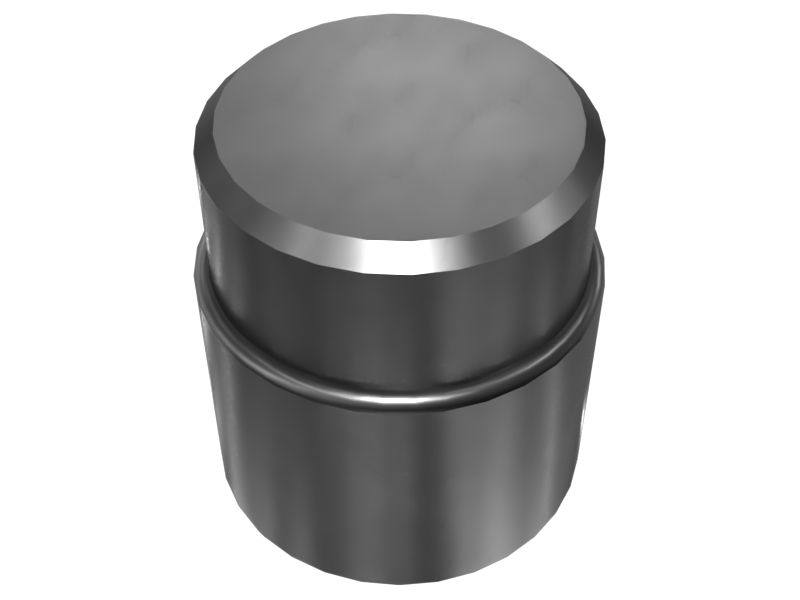

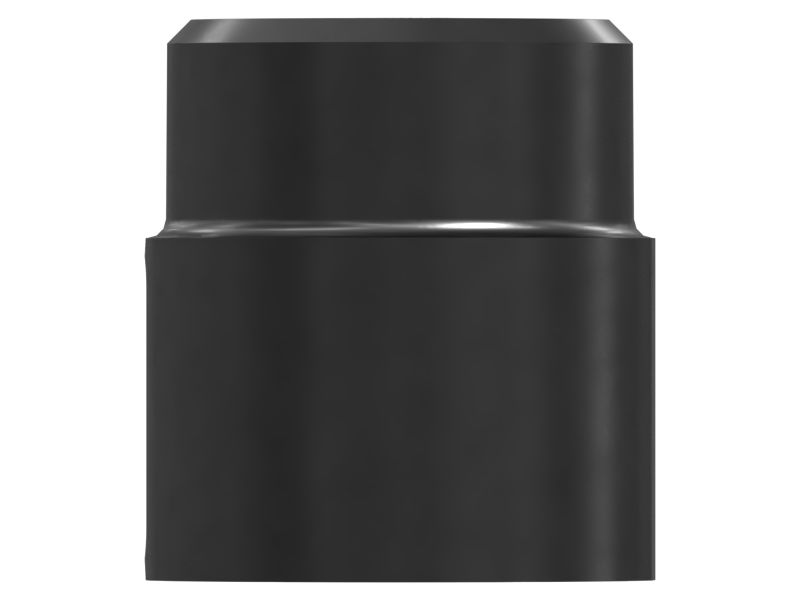

9U-7595: Track Pin Assembly Plunger

A Track Pin Assembly Plunger is used in conjunction with a track press contact toolset to reduce damage to track components during the pin and bushing alignment process, ensuring precise and efficient assembly of track components. This plunger-style tool assembly ensures that the pins and bushings are accurately positioned and aligned, minimizing the risk of misalignment, damage, or premature wear on the track components during the assembly process. It functions by being inserted into the track press contact tool to assist in aligning the pins and bushings of the track components.

Attributes:
• Provides better alignment and reduces the risk of damage to track components, improving the overall quality of track assembly operations
• Hardened to Rockwell C scale hardness of C40-48 for resistance to wear and deformation

Applications:
A Track Pin Assembly Plunger improves the alignment and installation of pins and bushings in a track unit of the machine. This plunger-style tool provides better alignment accuracy, resulting in reduced damage to track components during assembly and disassembly operations.

• Material: Steel,Low Alloy Steel,Coating Mixed

• Outer Diameter (mm): 53.48

• Outer Diameter (in): 2.105

• Length (mm): 58.67

• Length (in): 2.309

• Weight (kg): 0.733

• Weight (lb): 1.615
