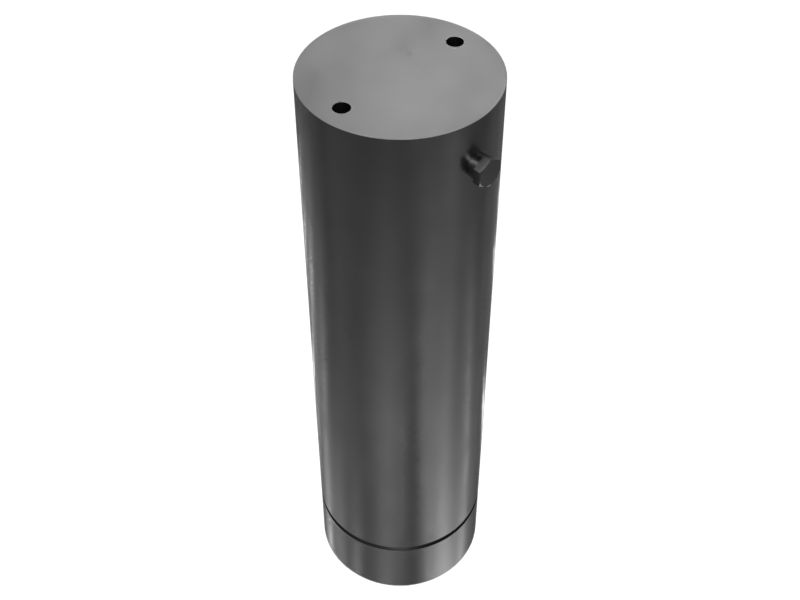

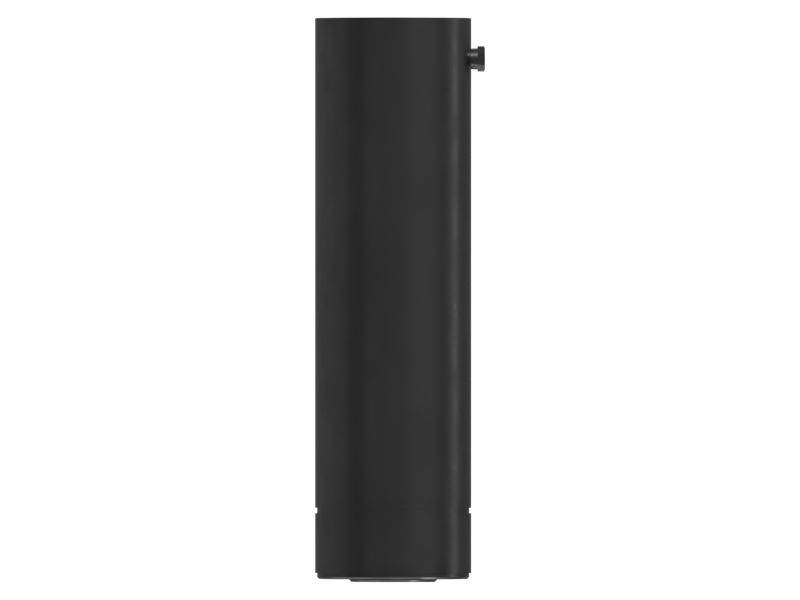

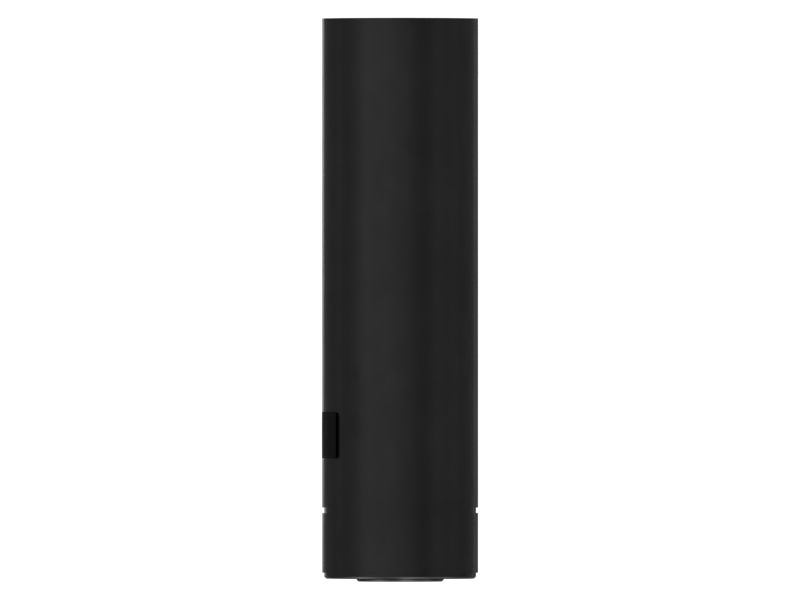

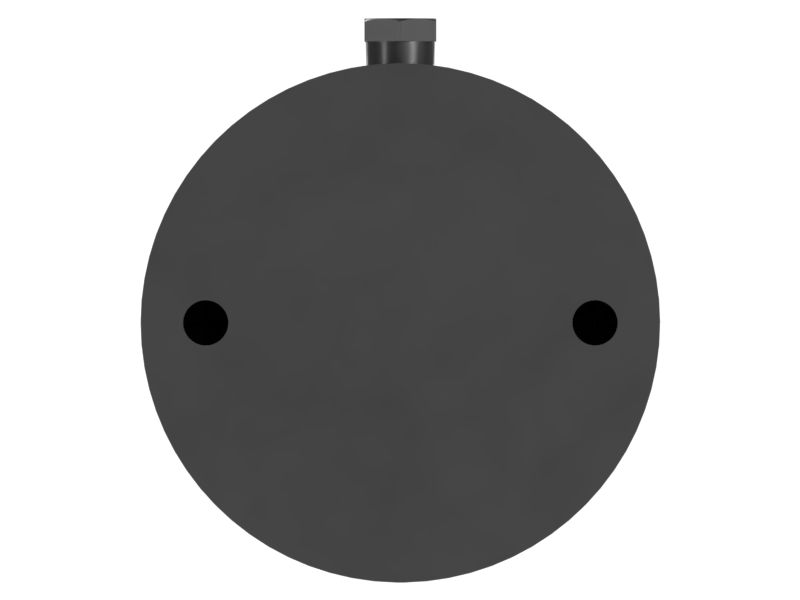

9U-7532: 49.9 Metric Ton Hydraulic Lift Cylinder

The Hydraulic Lift Cylinder enables the vertical movement required for lifting and lowering loads operating through the transmission of hydraulic fluid, it extends and retracts to adjust the height and position of attached equipment, such as booms and buckets, ensuring efficient material handling. It guarantees reliable performance even in demanding conditions, enhancing productivity and safety.

Attributes:
• Features an effective area of 71.24 square centimeters for accurate lifting capability.
• Plunger stroke length of 336.5 millimeters for effective lifting range.
• Capable of exerting up to 50.8 metric tons of force.
• Provided with an oil capacity of 2399 cubic centimeters.
• Provides consistent and smooth lifting and lowering actions.

Applications:
The Hydraulic Lift Cylinder is positioned within the hydraulic system of the equipment, often connected between the boom and lifting mechanism and the mainframe, enabling controlled vertical movement for lifting and lowering operations.

• Weight (kg): 37.88

• Weight (lb): 83.511

• Material: Steel,Carbon Steel
