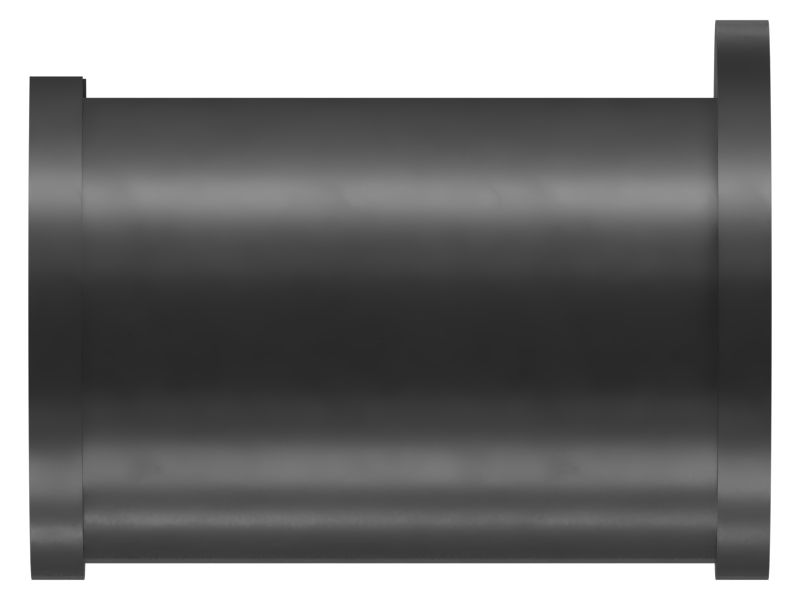

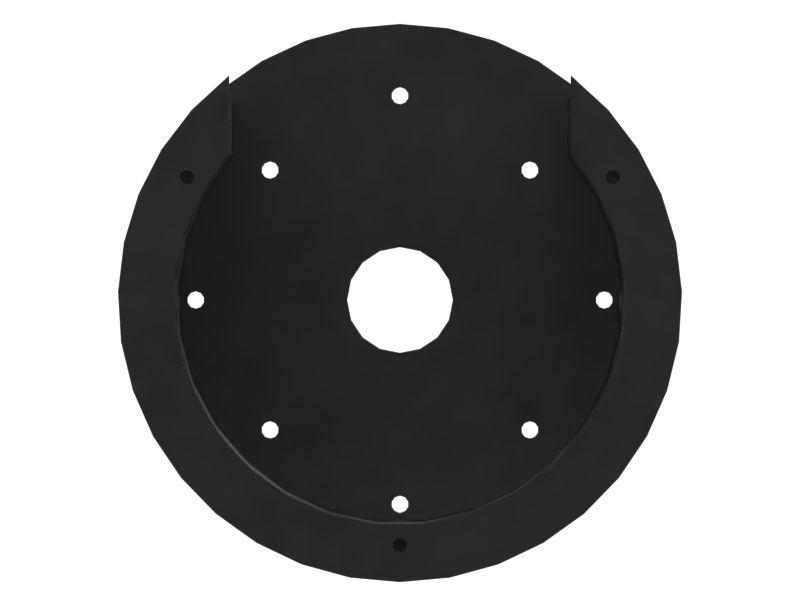

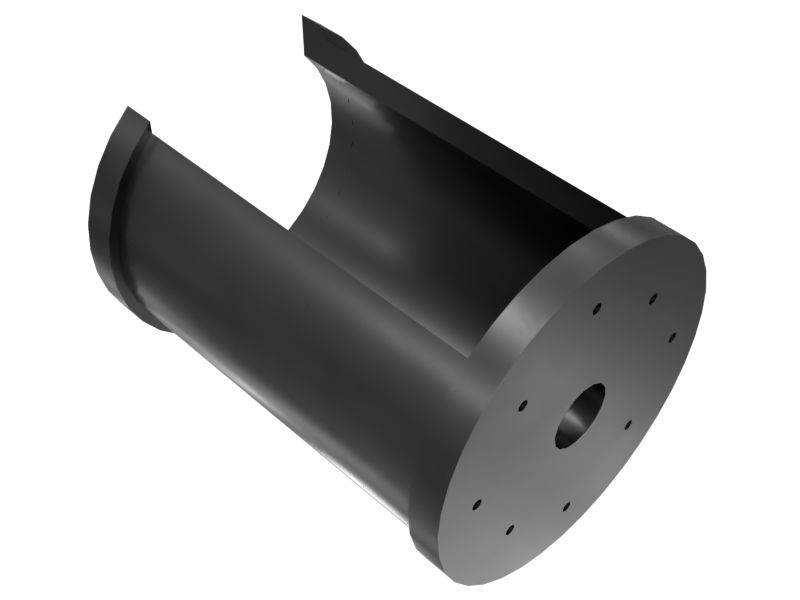

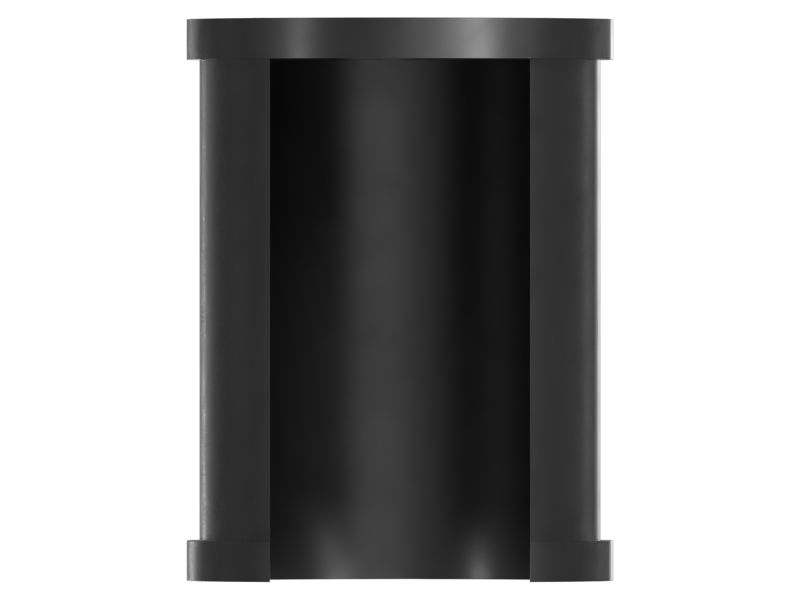

9U-6751: Bucket Linkage Pin Receiving Sleeve

The Bucket Linkage Pin Receiving Sleeve assists in removing and installing bucket linkage pins in equipment. This tool is necessary for maintaining the integrity of the bucket's attachment to the linkage, as it provides a stable and aligned guide for the pin during both extraction and insertion. During operation, the sleeve is positioned to receive the pin, ensuring it is aligned properly with the linkage. This prevents potential misalignment and damage to the components, which occurs if the pin is inserted and removed at an incorrect angle.

Attributes:
• Provides a secure guide for removing and installing bucket linkage pins.
• Ensures accurate alignment during pin removal and installation.
• Reduces the risk of damage to the linkage pin and surrounding components.
• Ensures consistent pin installation with minimal effort.

Applications:
The Bucket Linkage Pin Receiving Sleeve is used to facilitate the accurate and efficient removal and installation of bucket linkage pins in the equipment ensuring that the pins are correctly aligned with the linkage.

• Overall Length (mm): 355.4

• Overall Length (in): 13.992

• Outer Diameter (mm): 270

• Outer Diameter (in): 10.63

• Internal Thread: M8x1.25-6H, M10x1.5-6H

• Weight (kg): 39.31

• Weight (lb): 86.664

• Material: Structural Steel,Carbon Steel,Alloy Steel,Low All
