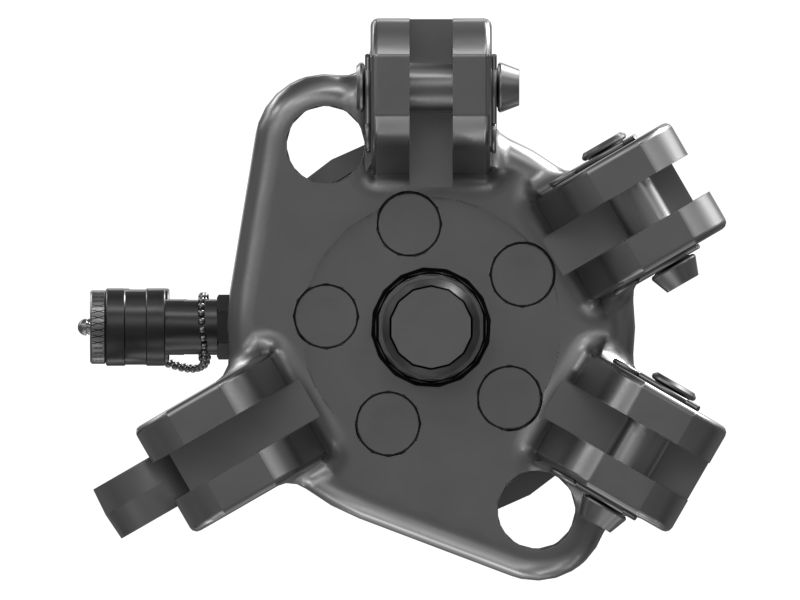

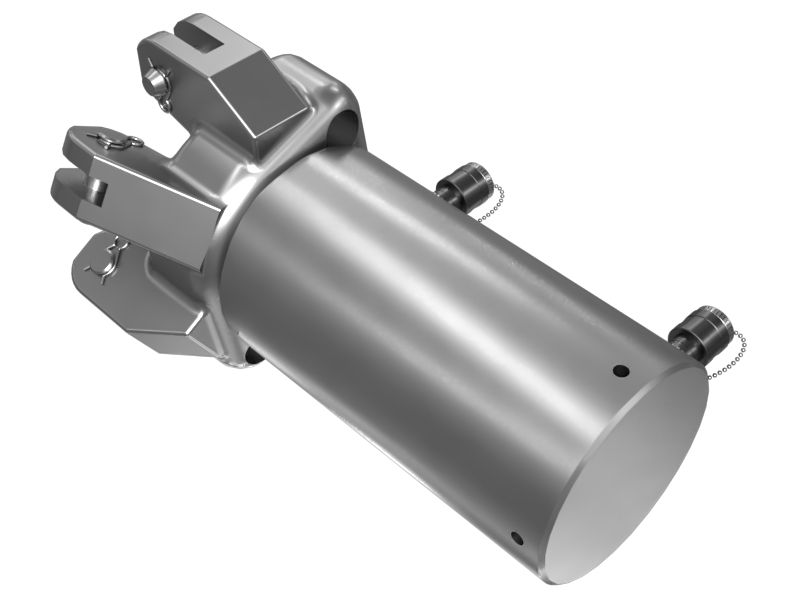

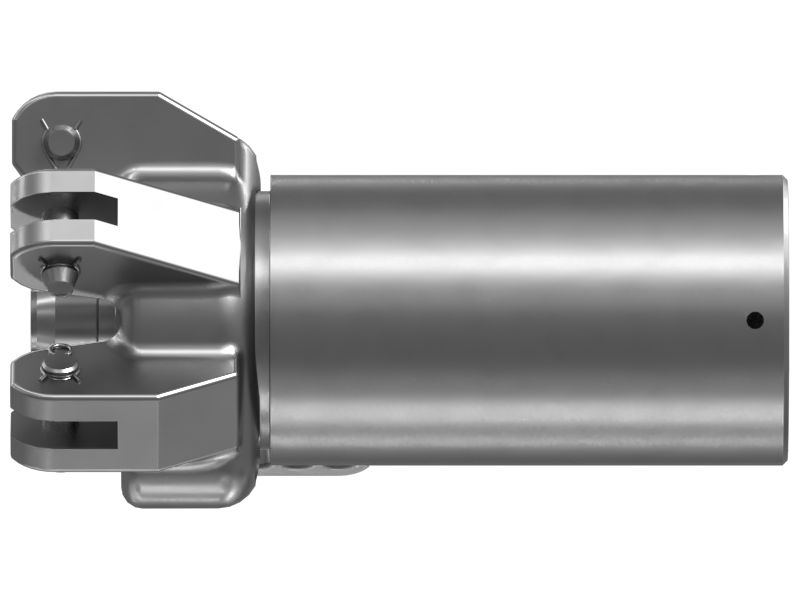

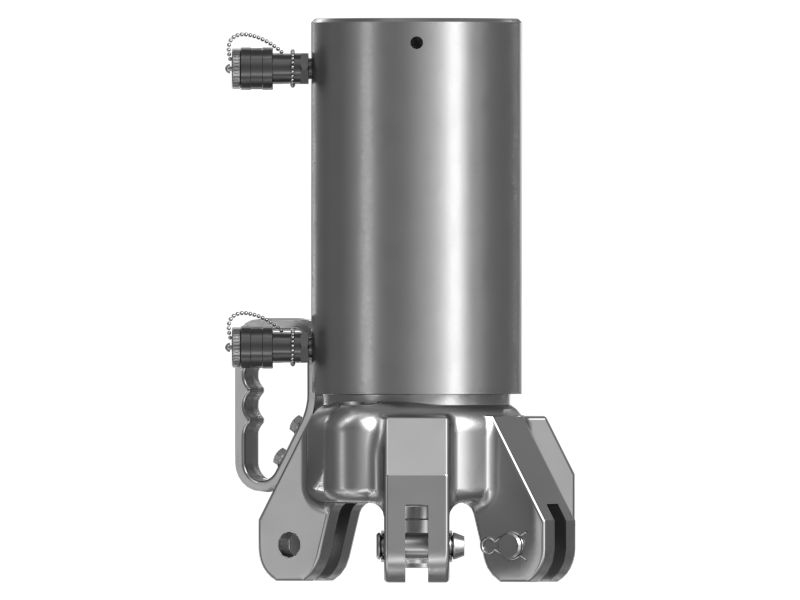

9S-8901: Double Acting Hydraulic Cylinder

The Double Acting Hydraulic Cylinder consists of a cylindrical barrel, a piston, and two ports for hydraulic fluid entry and exit. When hydraulic fluid is pumped into one port, it exerts pressure on the piston, causing it to move in one direction. Simultaneously, fluid is expelled from the opposite port, allowing the piston to return to its original position when the flow is reversed. This dual-action mechanism enables precise control over the movement and positioning of heavy loads.

Attributes:
• Withstands a max advance force of 93.52 metric ton
• Withstands a max retract force of 79.28 metric ton
• Applies torque uniformly between 583 and 637 Nm. via the cap screws

Applications:
The Double Acting Hydraulic Cylinder gives bidirectional motion, that motion provides greater control and flexibility in the operation of the machinery, enabling more complex and sophisticated tasks to be performed.

• Outer Diameter (mm): 176.78

• Outer Diameter (in): 6.959

• Overall Length (mm): 287.02

• Overall Length (in): 11.3

• Color: Medium Gloss Black

• Weight (kg): 73.03

• Weight (lb): 161.003

• Material: Carbon Steel
