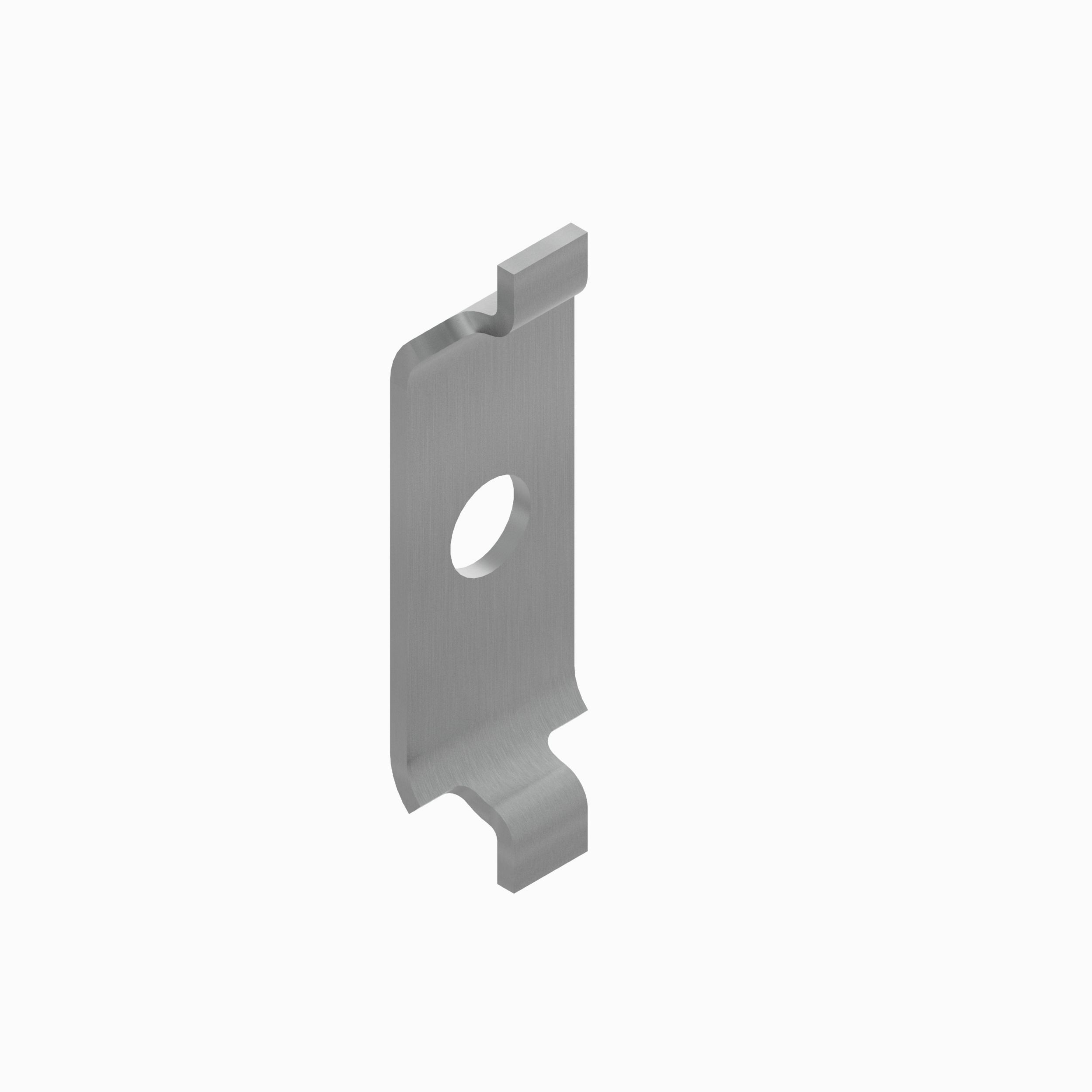

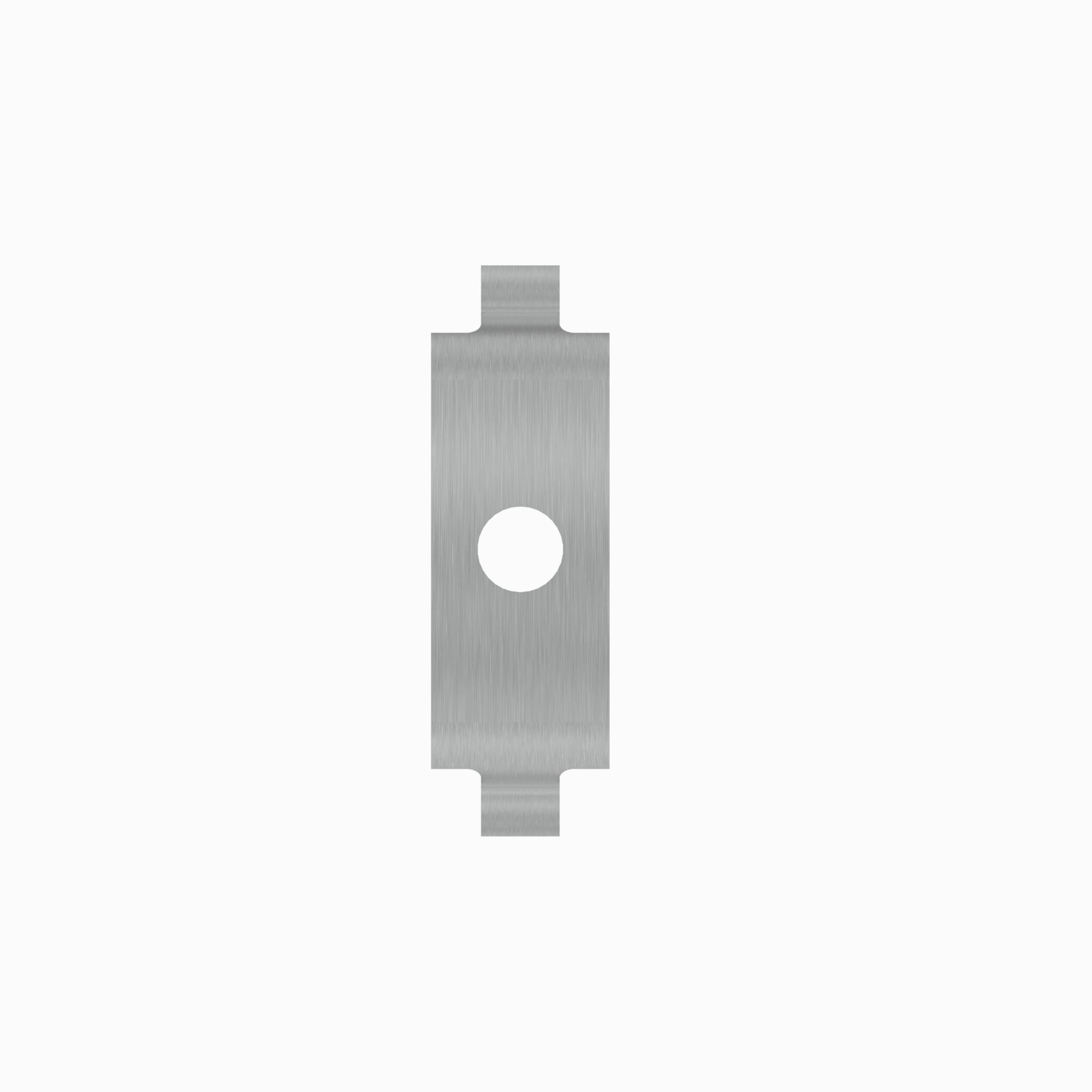

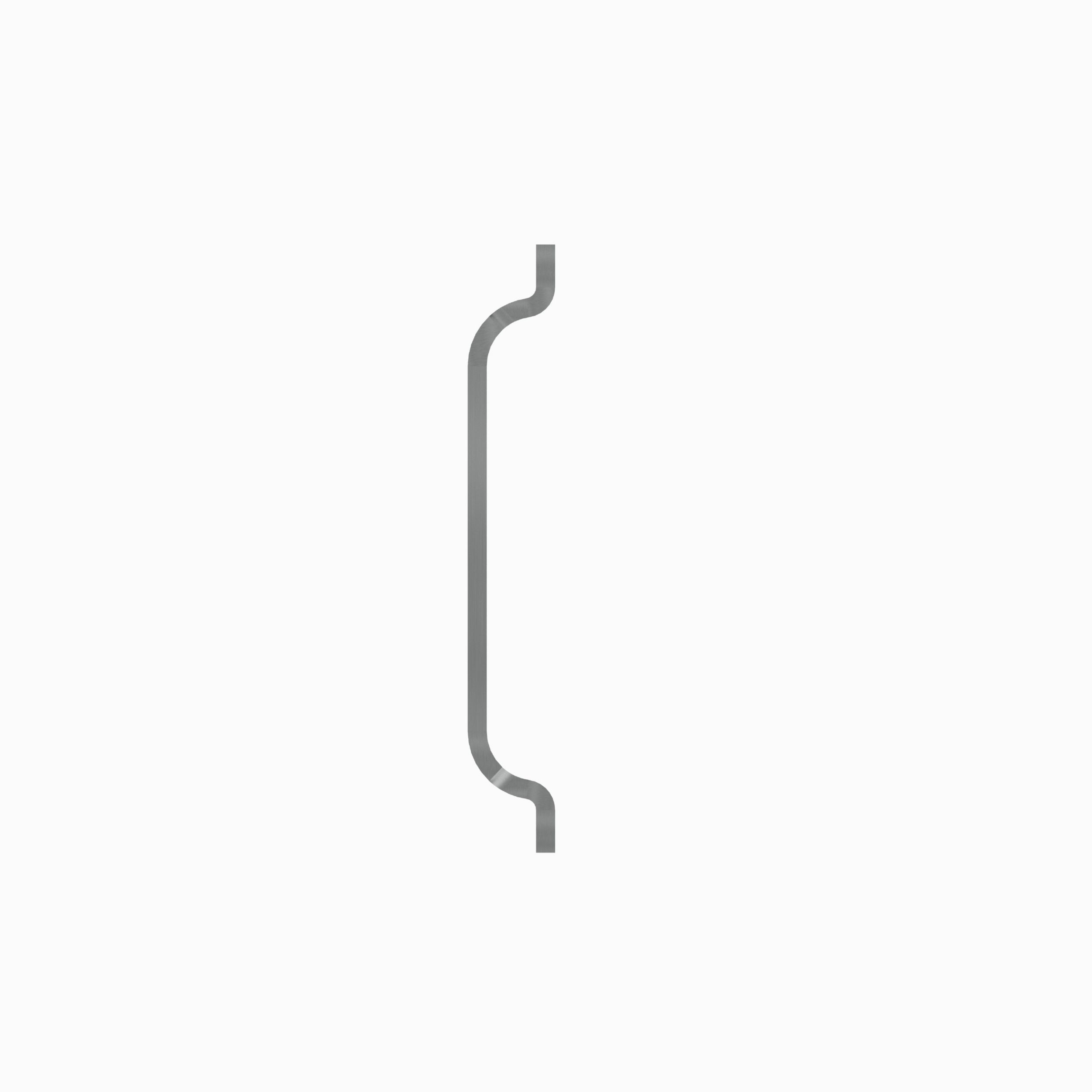

9R-9290: ФИКСАТОР

A Dual Tube P Clip is a type of clip or clamp that is used to secure two parallel tubes or pipes in place. The dual tube P clip is intended to provide two tubes or pipes with a secure and solid installation, preventing them from vibrating or shifting during use. Designed with the assembled type of clip for a Dual tube P shape it has multiple parts Top and bottom which are combined to hold the dual tube with an internal locking clip With the aid of a screw or another fastening device, it is tightened around it.

Attributes:
• M10 Fastener Center Hole to Fit
• In the mating part, clips can be tight on 12.7mm OD tubing when legs are drawn together
• Manufactured to precise specifications and are built for durability, reliability, and safety

Applications:
A Dual Tube P Clip is a simple but effective tool for securing two tubes or pipes in place, making it an important component in many different types of equipment and systems. These are tasked with routing the fluid lines through various parts of the machine structures safely and ergonomically to prevent them from getting pinched or cut.

• Clamp Width (in): 0.98

• Clamp Width (mm): 25

• Diameter (in): 0.51

• Diameter (mm): 13

• Length (in): 3.15

• Length (mm): 80

• Thickness (in): 0.1

• Thickness (mm): 2.5

• Material: Carbon Steel
