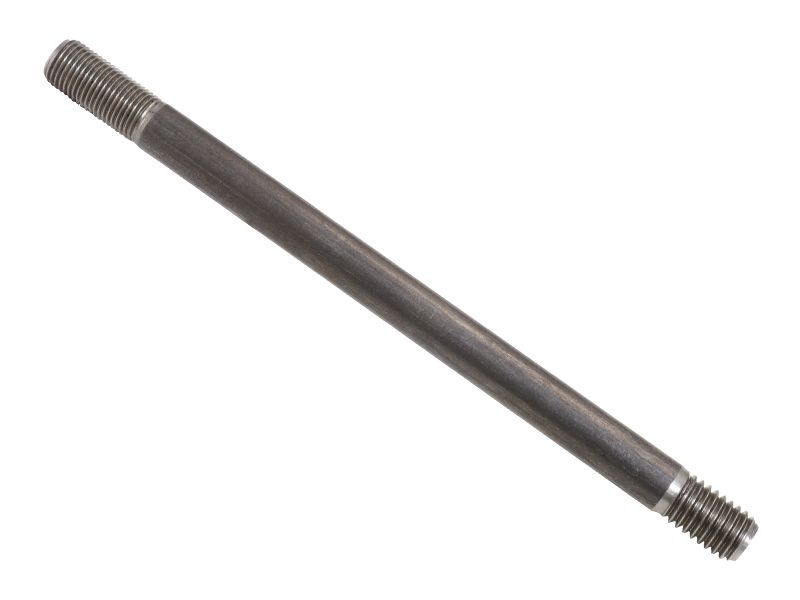

9R-2412: ШПИЛЬКА

A Stud is designed with equal-length threads on each end, allowing for the attachments of nuts or other threaded parts. The central portion of the Stud remains unthreaded, enabling adjustment of tension or accommodating variable thickness of connected parts. It is typically made of materials such as steel, or stainless steel materials to withstand the demanding conditions and loads experienced by the axle drive unit.

Attributes:
Resistance to impact or sudden loads, ensuring reliable performance
Withstand high-pressure conditions without failure
Protects against rust and degradation

Applications:
A Stud is used in axle drive to provide adjustable tension, secure connection even in dynamic conditions, this is mostly used in Cat® 416, 416B, 416C, 416D, 420D, 424D, 426, 426B, 426C, 428, 428B, 428C, 428D, 430D, 432D, 436, 436B, 436C, 438, 438B, 438C, 438D, 442D, 446, 446B and 446D Backhoe, CP-533, CP-533C, CP-533D, CP-563, CP-563C, CP-563D, CP-663E, CS-531, CS-531C, CS-531D, CS-533, CS-533C, CS-533D, CS-563, CS-563C, CS-563D, CS-573, CS-573C, CS-573D, CS-583, CS-583C, CS-583D, CS-663E, CS-683E and PS-110, PS-130 Paving Equipment, R40, R50, RC60, R60, R70, R80 and V200, V225 Lift Truck, TH514C Telehandler - Tier Iamb, TR13 Powertrain.

• Length (in): 7.75

• Length (mm): 196.85

• Thread: 1/2-20, 1/2-13

• Weight (kg): 0.18

• Weight (lb): 0.4
