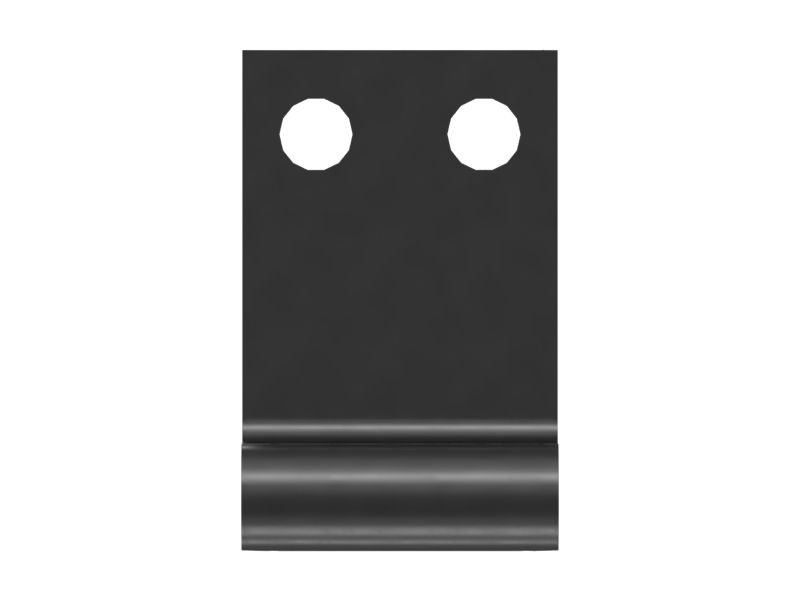

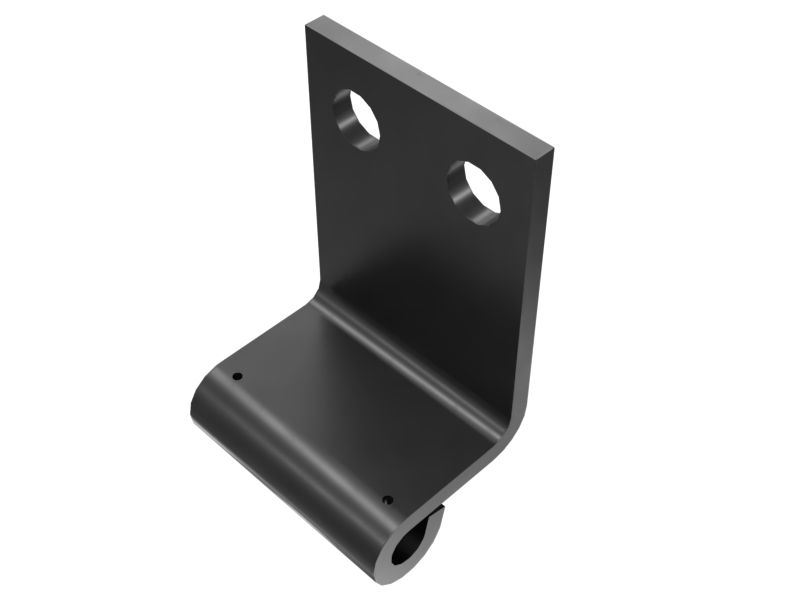

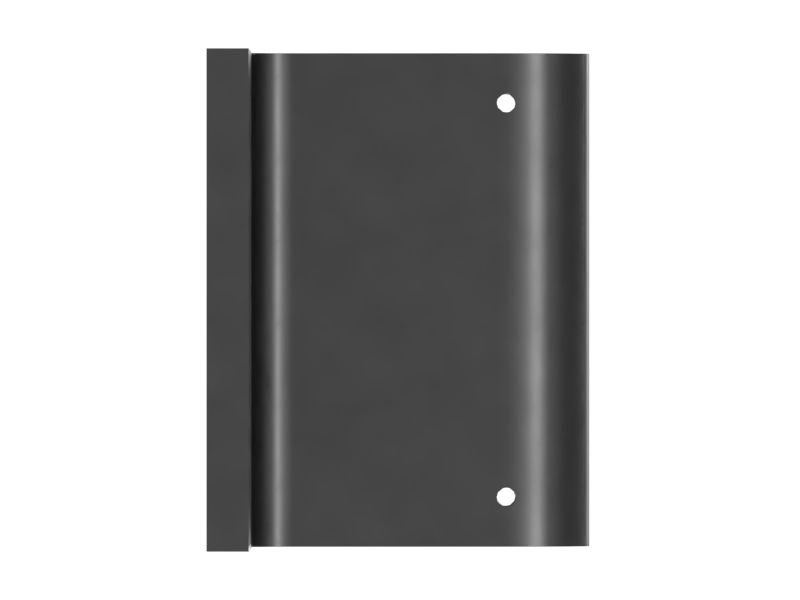

9R-1633: ПЛАСТИНА

A Cabin Door Hinge Plate serves as a structural component that connects the door to the door frame or cabin structure, providing support and facilitating door movement. It has pre-drilled holes to accommodate the hinge pins or bolts, allowing for secure attachment and smooth door movement. This hinge plate is fitted with the cabin door where a hinge is needed to allow for movement or rotation between the cabin and the door. It is attached to the door by a pin in the hinge assembly, which acts as the axis of rotation.

Attributes:
• Suitable to fit a pin with an outer diameter of 10.25mm
• Withstands the stresses and forces exerted on the door during operation

Applications:
A Cabin Door Hinge Plate is used in the operator cabin to provide a stable and secure connection point, enabling smooth and controlled opening and closing of the cabin door. It effectively distributes the weight and forces exerted on the cabin door, preventing excessive stress concentration and potential damage to the door or surrounding structure.

• Material: Carbon Steel
