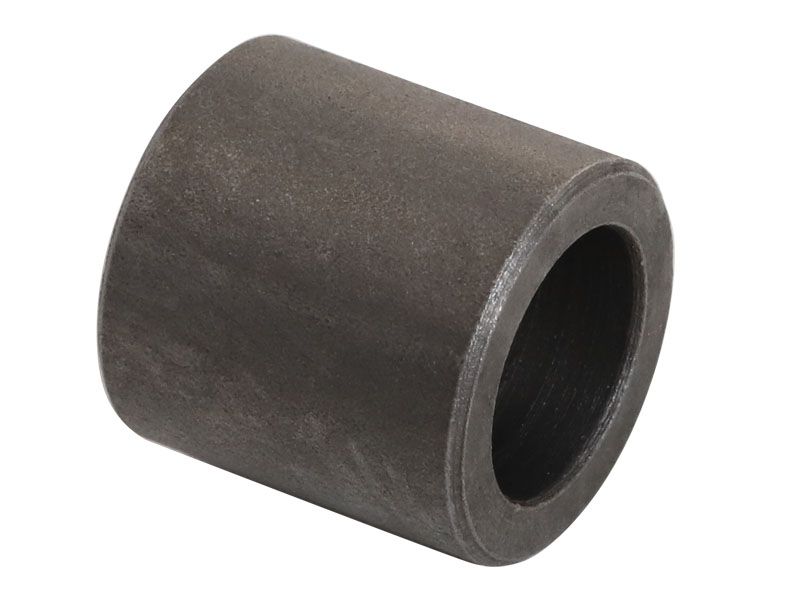

9P-4898: ПРОКЛАДКА

Description:
A Spacer, also known as a clearance spacer or standoff, is a small cylindrical component used to create a gap or distance between two objects or components. The size and shape of a steel spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components.

Attributes:
• Provides good wear resistance and strength.
• Handle high pressure without deforming or breaking.

Applications:
A Spacer is used to increase the distance between the parts being fastened, widely used in Cat 120M, 12M, 140, 140M, 14L, 14M, 150, 160, 160M, and 16M Motor Grader, 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, 229D, 231D, 235, 235B, 235C, 235D, 245, 245B, 245D, 312, 315, and 317 Excavators, 3512C and 3516C Engine (Piston), 416E and 962H OEM Applications, 416E, 420E, and 430E Backhoe, 621B, 623E, 623F, 623F, and 623G Scraper, 621B, 623G, and 657 Wheel Tractor Scrapers, 776B, 776D, 777B, 777C, 777D, 793, and 795F Truck, 931B, 931C, 935B, and 935C Track Loader, 950G, 950H, 950K, 950L, 962G, 962H, 962K, 962L, 980L, IT62H, and IT62K Wheel Loader, D10L, D10N, D10R, D11N, D11R, D3B, D3C, D4B, D4C, D6D, D9, D9H, D9N, D9R, MT835, MT845, MT855, MT865, MTC835, MTC845, MTC855, and MTC865 Track Type Tractor.

• Inner Diameter (in): 0.5

• Inner Diameter (mm): 12.7

• Length (in): 0.75

• Length (mm): 19

• Material: Steel,Carbon Steel

• Outer Diameter (in): 0.75

• Outer Diameter (mm): 19.05

• Washer Type: Flat
