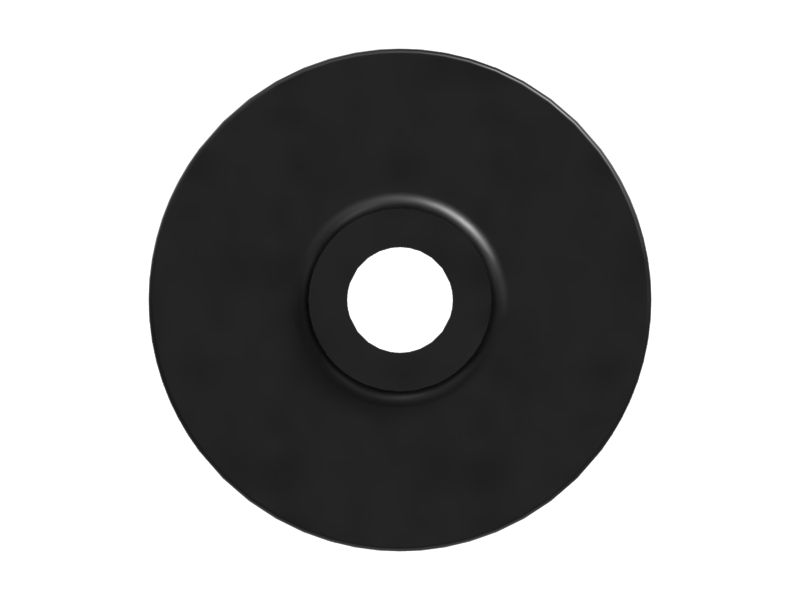

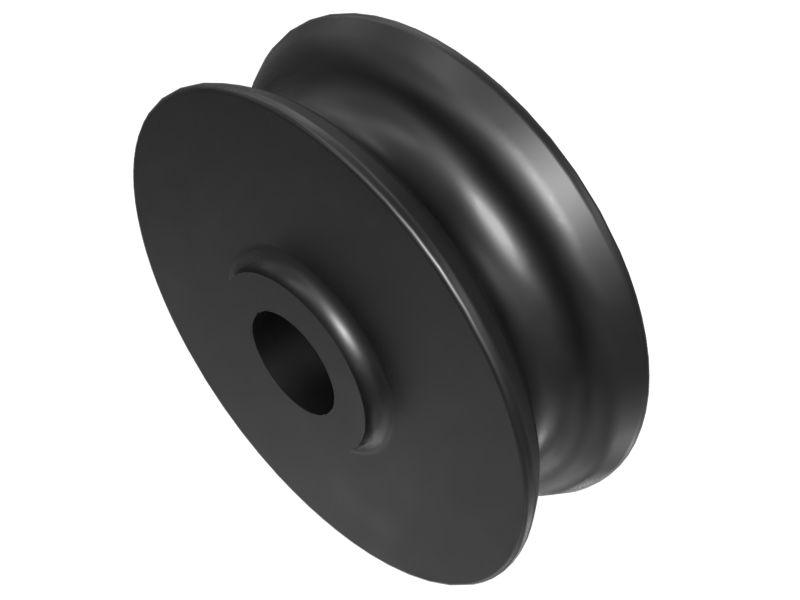

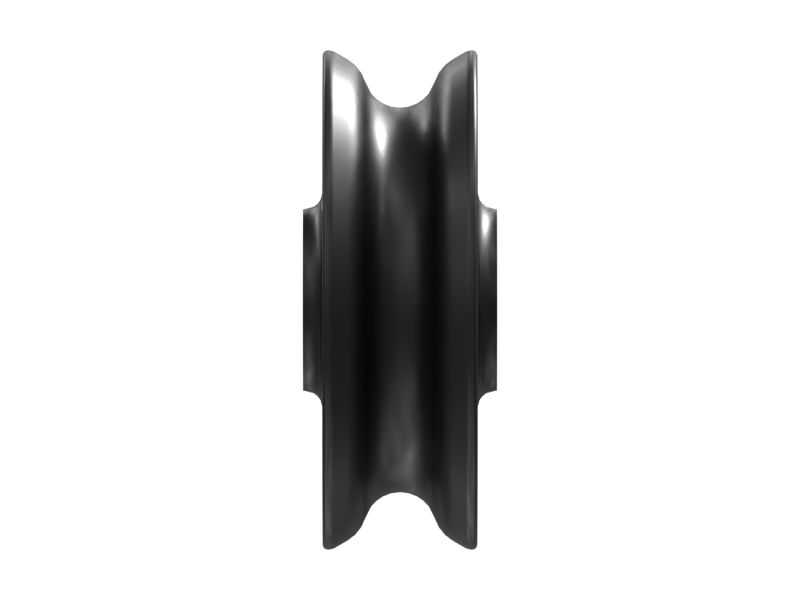

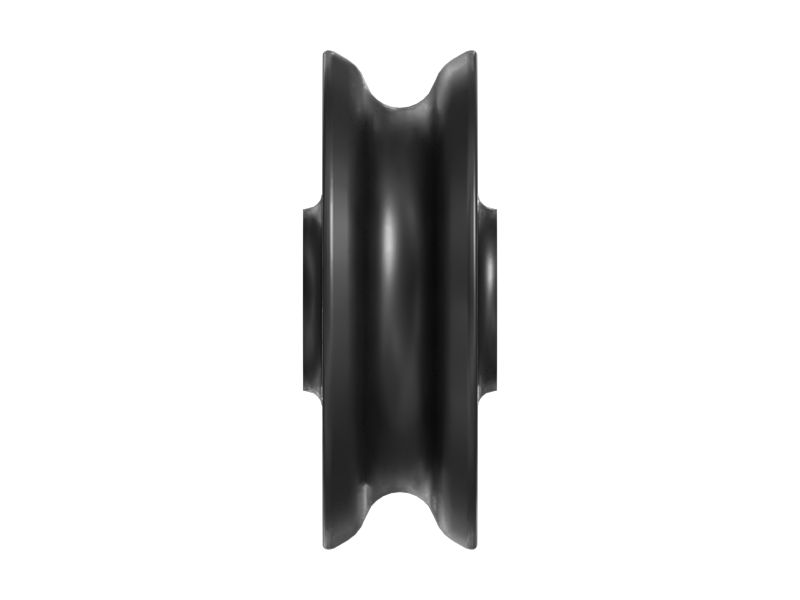

9P-0417: ШКИВ

A Wire Rope Sheave is cylindrical with a grooved circumference to accommodate the wire rope. The grooves on the sheave prevent the wire rope from slipping off during operation and help to distribute the load evenly, reducing wear and tear on both the rope and the sheave itself. The primary function of a wire rope sheave is to guide and support wire ropes and cables as they transmit force and motion. They are components in equipment such as cranes, hoists, elevators, and winches, where wire ropes are used to lift or move loads. By providing a smooth and controlled pathway for the wire rope, sheaves help to minimize friction and prevent damage to the rope, ensuring safe and efficient operation.

Attributes:
• Grooved surface to accommodate wire rope
• Made of durable materials such as steel or cast iron
• Designed to withstand loads and high pressures
• Incorporate bearings for smooth rotation
• Resistant to wear, corrosion, and fatigue

Applications:
A Wire Rope Sheave is integrated into the frame structure of pipelayer equipment. It is positioned along the lifting and lowering path of the wire ropes, commonly found near the boom assembly or winch mechanism.

• Material: Carbon Steel
