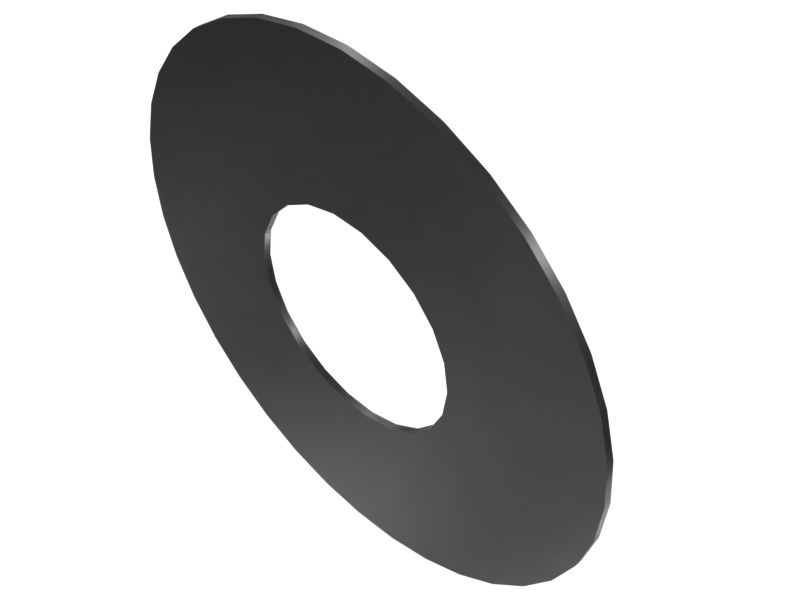

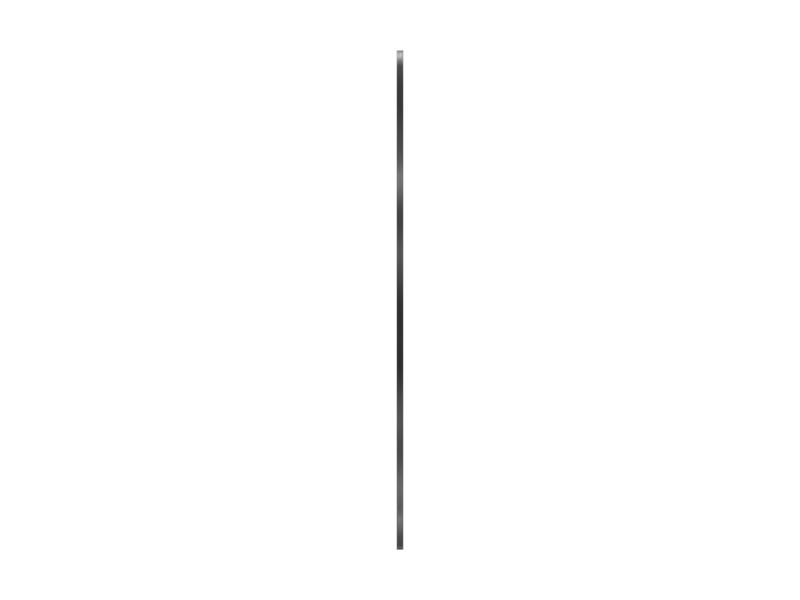

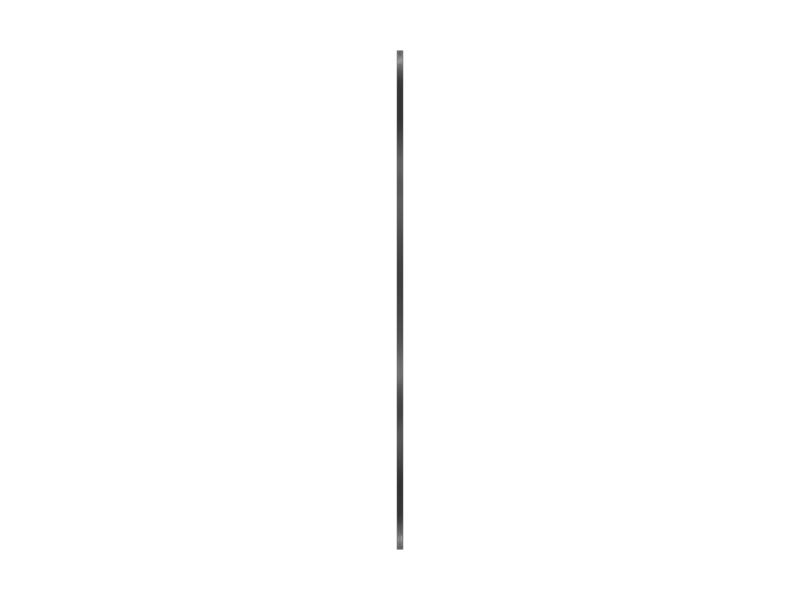

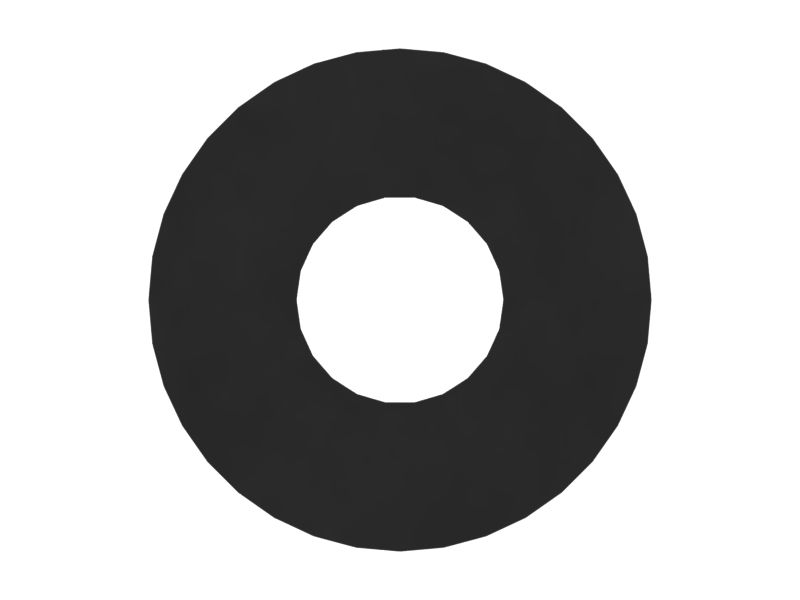

9J-4437: ШАЙБА

A Flat Washer is a thin, circular-shaped piece of metal with a central hole. It is placed between the head of a bolt or nut and the surface it is fastened to provide support and distribute pressure evenly. Flat washers secure components in place and prevent damage to surfaces due to excessive pressure or vibration during equipment operation. It distributes the load generated by the fastening bolt or nut evenly across the surface area, reducing the risk of damage or deformation to the attached components. By providing a secure mounting surface, flat washers help prevent bolts and nuts from loosening over time due to vibration or dynamic forces experienced during equipment operation.

Attributes:
• Align components during assembly, ensuring proper positioning and reducing the likelihood of misalignment issues.
• Corrosion resistance.
• Withstand loads and stresses encountered without deforming or failing.

Applications:
A Flat Washer is used extensively throughout equipment in locations where components are fastened together and is mainly used during the installation of the cartridge pin in the bucket lift arm.

• Inner Diameter (mm): 104.6

• Inner Diameter (in): 4.12

• Outer Diameter (mm): 254

• Outer Diameter (in): 10

• Material: SOFT STEEL,Carbon Steel

• Washer Type: Flat

• Material Description: SOFT STEEL
