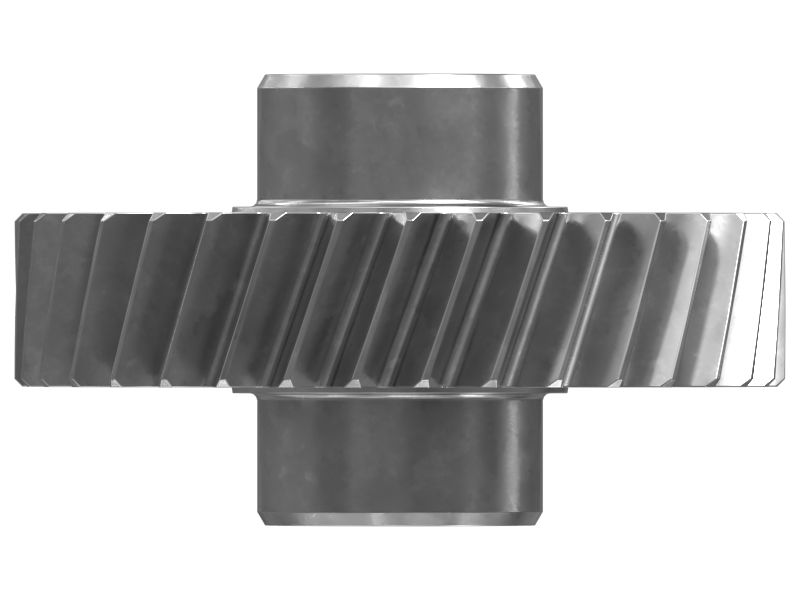

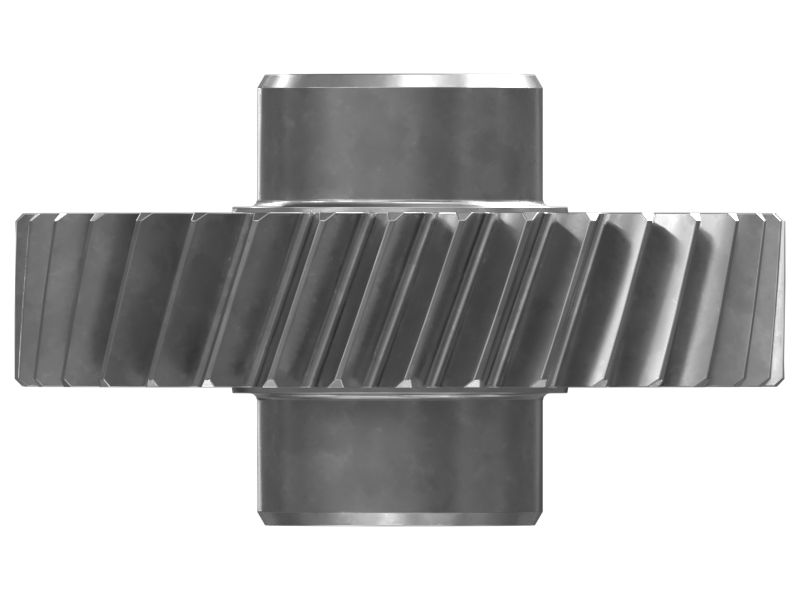

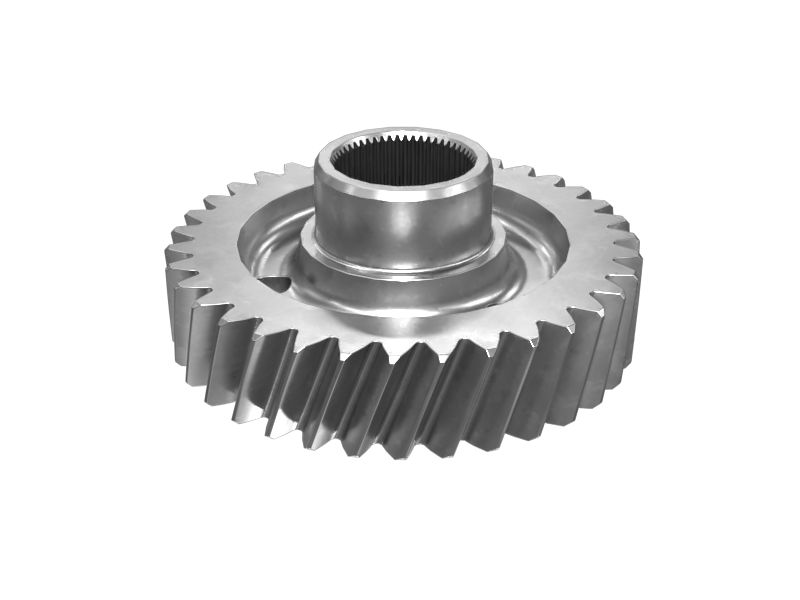

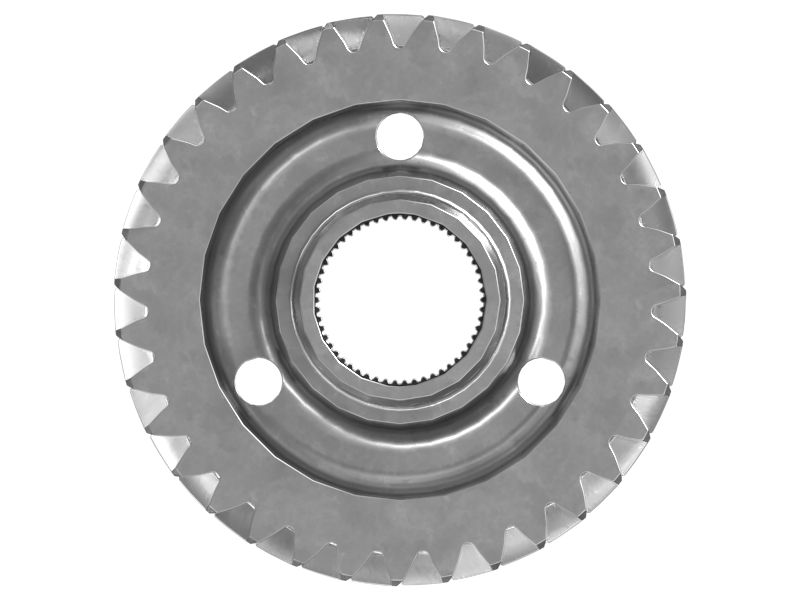

9G-6774: ШЕСТЕРНЯ

Description:
Cat transfer gears, such as part 9G-6774, provide uniform power transfer from transmission to drive train.

All Cat gears have unique metallurgy compositions tailored to specific applications, with special steel formulas that improve impact resistance and ensure uniformity and proper load transfer. Some Cat gears also undergo proprietary heat treat processes to improve surface, bore, and core hardness. The result is greater durability, which means longer life and better performance.

Attributes:
• Hardened steel gear
• Helical Gear Number of Teeth: 35
• Helix Hand: Right
• Pitch Diameter: 270.3 mm (10.64 in)
• Internal Spline Number of Teeth: 54
• Inside Diameter: 84.1 mm (3.31 in)
• Outside Diameter: 297.18 mm (11.70 in)
• Width: 173.7 mm (6.84 in)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel,Low_Alloy Steel,Low Alloy Steel

• Number of Teeth: 35 (Gear); 54 (Internal Spline)

• Inside Diameter (mm): 84.1

• Outside Diameter (mm): 297.18

• Width (mm): 173.7

• Inside Diameter (in): 3.31

• Outside Diameter (in): 11.70

• Width (in): 6.84
