9F-4364: ГАЙКА

Description:

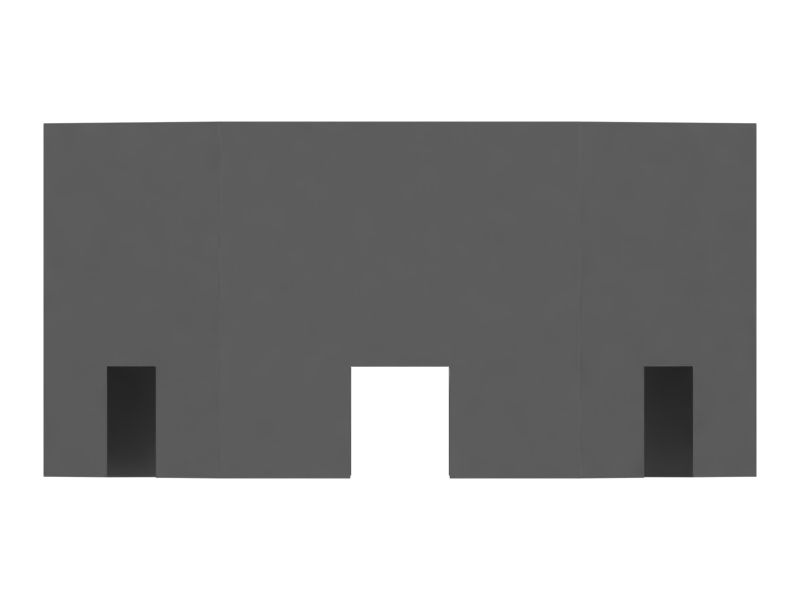

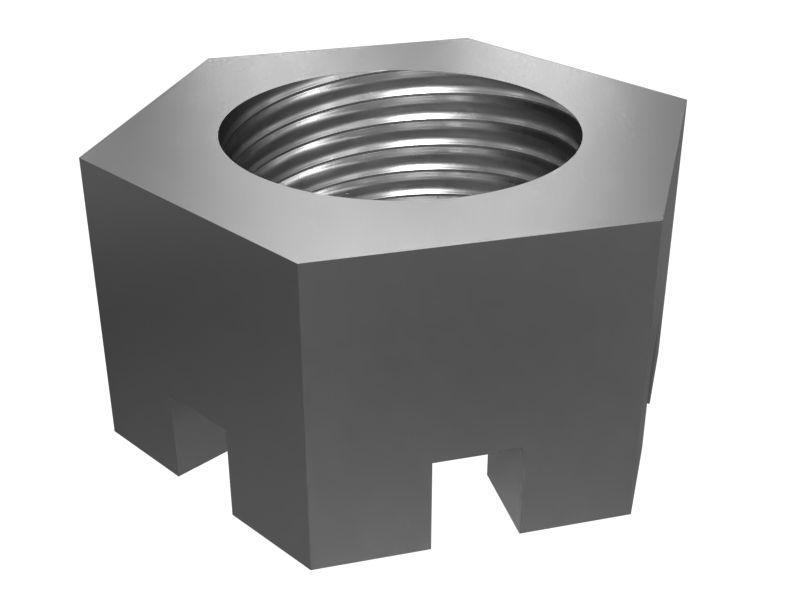

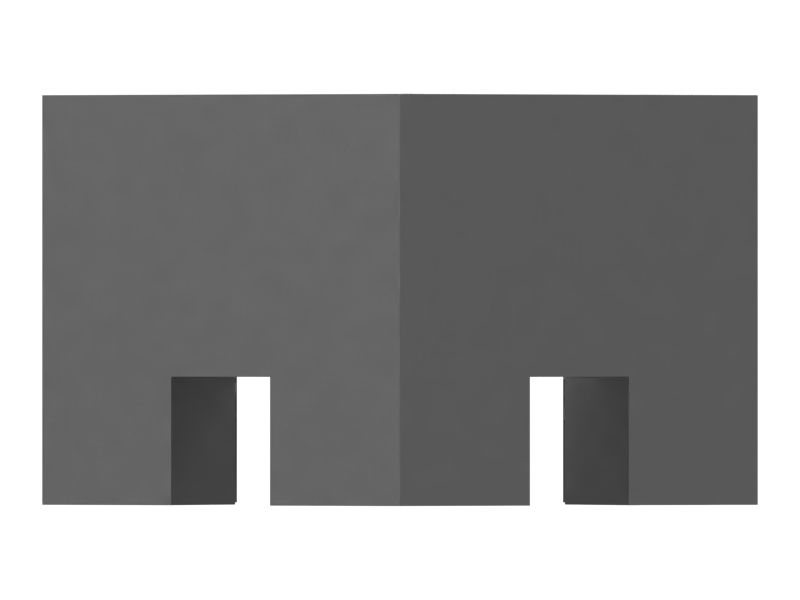

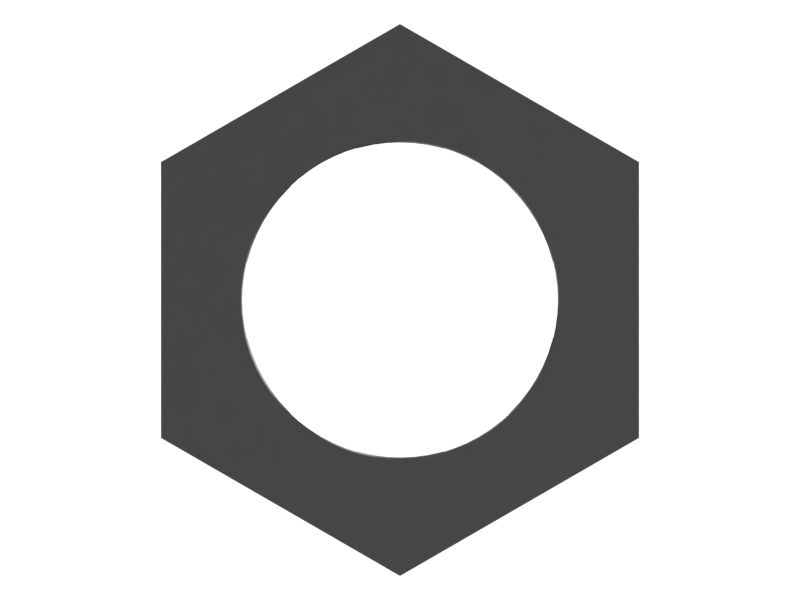

A Slotted Hexagonal Nut is a type of fastener with fully threaded and slot cuts on the end of the nut, which prevent the nut from loosening due to vibration or other stresses during operation. It is typically made of a durable material such as steel and is designed to fit over a bolt or threaded rod.

Attributes:
• Offers high strength and ductility.
• Provided with a slot width of 7.62mm to accommodate a cotter pin.

Applications:
A Slotted Hexagonal Nut is used to provide a secure and reliable connection between two parts, mostly used in Cat 120C, 120G, 120H, 12G, 12H, 130G, 135H, 140C, 140G, 140H, 143H, 160G, 160H and 163H Motor Grader, 216, 216B, 226, 226B, 226D, 226D3, 228, 232, 232B, 232D, 232D3, 236, 236B, 236D, 239D, 242, 242B, 242D, 246, 246B, 246C, 246D, 247, 247B, 248, 248B, 249D, 252, 252B, 256C, 257, 257B, 257D, 259B, 259D, 262, 262B, 262C, 262D, 267, 267B, 268B, 272C, 272D, 272D3, 277, 277B, 277C, 277D, 279C, 279D, 287, 287B, 287C, 287D, 289C, 289D, 297C, 297D, 299C, 299D and 299D3 Skid Steers, 304.5E Excavators, 651E and 657E Scraper, 668C, DW20 and DW20E,DW20F,DW20G Wheel Tractor Scrapers, 7495 Surface Extraction, 904B, 904H, 906H, 906K, 906M, 907H, 907M, 908H, 908K, 908M and 950B, 950E Wheel Loader, AP-1000 and AP-1050 Paving Equipment, PR118, PR121, PR123, PR172, PR184 and PR190 Work Tools.

• Hex Size (in): 1.5

• Hex Size (mm): 38.1

• Nut Type: Hex

• Material: Steel,Alloy Zinc,Carbon Steel

• Thread Size (in - TPI) (in): 1/1-14

• Thread: 1-14

• Weight (kg): 0.13

• Weight (lb): 0.28

• Thread Size (dia x pitch) (mm): 1.000x14

• Coating: Zinc

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Hand of Thread: RH
