9C-8703: ТРУБКА В СБОРЕ

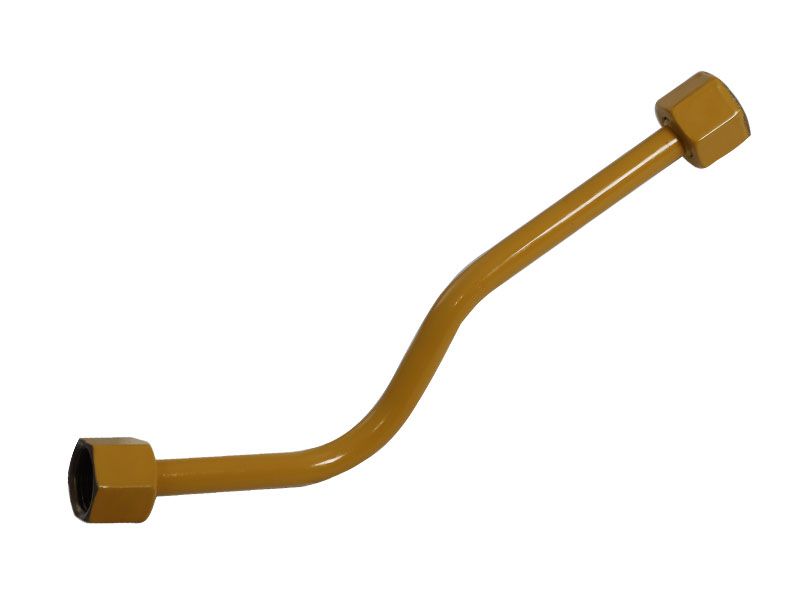

A Service Brake Control Tube Assembly is used to establish a connection between the junction block and the brake mounted in the service brake unit. It allows the operator to control the application and release of the service brakes conveniently. The assembly includes a nut, and sleeve on both ends to ensure a secure and leak-free connection. The tube is mounted and routed within the machine's structure, ensuring proper placement and protection against external hazards.

Attributes:
• Helps to deliver consistent pressure to the brake actuator withstanding 17000 kPa pressure
• Contributes to the safety of the machine by ensuring effective braking performance and responsiveness

Applications:
A Service Brake Control Tube Assembly serves as a conduit for the channeling of brake fluid pressure from the junction block to the junction block mounted on the front axle. When the operator activates the parking brake valve, fluid pressure is directed through the tube to engage the service brakes.

• Outer Diameter (mm): 10

• Outer Diameter (in): 0.37

• Approximate Overall Length (mm): 209

• Material: STEEL,Alloy Mixed
