9C-6015: ШЕСТЕРНЯ

Description:

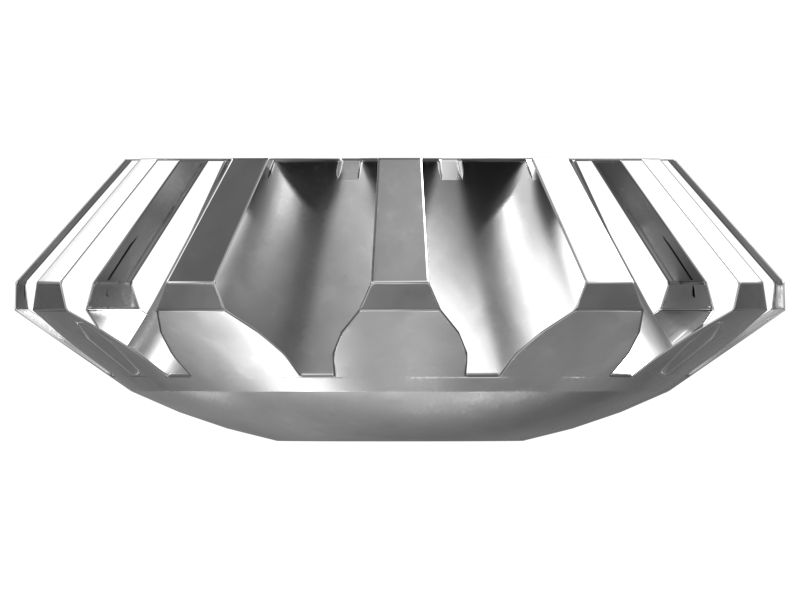

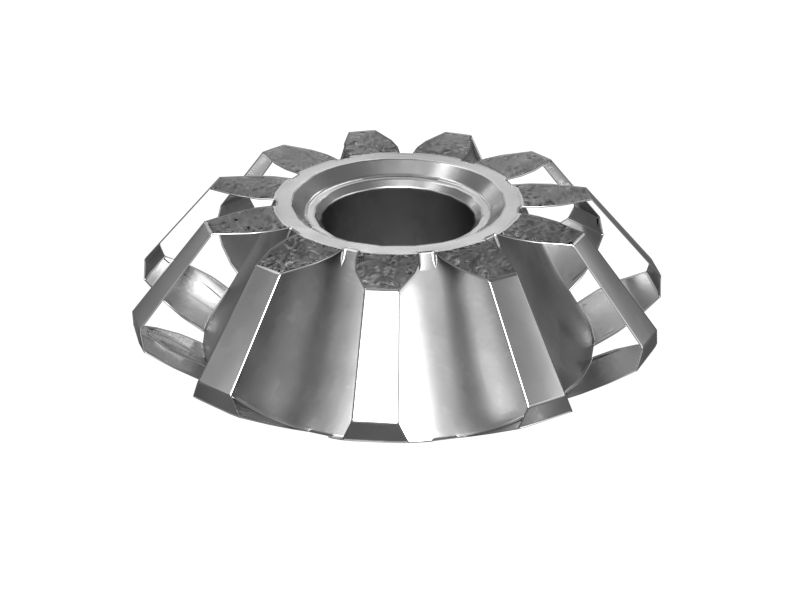

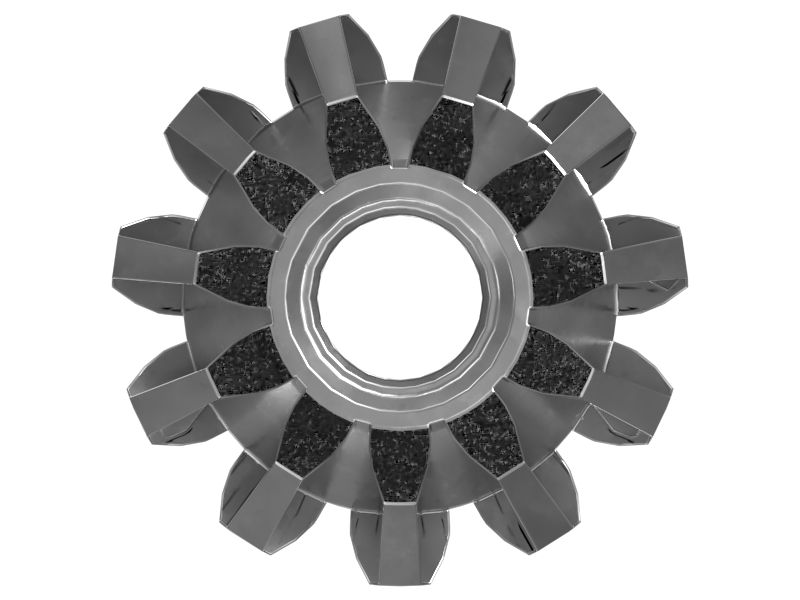

Bevel pinion part # 9C-6015 for use in the differential system to transmit power from the drive shaft to the axle shafts.

All Cat gears have unique metallurgy compositions tailored to specific applications, with special steel formulas that improve impact resistance and ensure uniformity and proper load transfer. Some Cat gears also undergo proprietary heat treat processes to improve surface, bore, and core hardness. The result is greater durability, which means longer life and better performance.

Attributes:
• Hardened steel pinion
• Bevel Gear Number of Teeth: 11
• Pitch Diameter: 98.656 mm (3.88 in)
• Inside Diameter: 31.83 mm (1.25 in)
• Outside Diameter: 111.02 mm (4.37 in)
• Width: 40.2 mm (1.58 in)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Steel,Alloy Steel,Low Alloy Steel

• Number of Teeth: 11

• Inside Diameter (mm): 31.83

• Outside Diameter (mm): 111.02

• Width (mm): 40.2

• Inside Diameter (in): 1.25

• Outside Diameter (in): 4.37

• Width (in): 1.58
