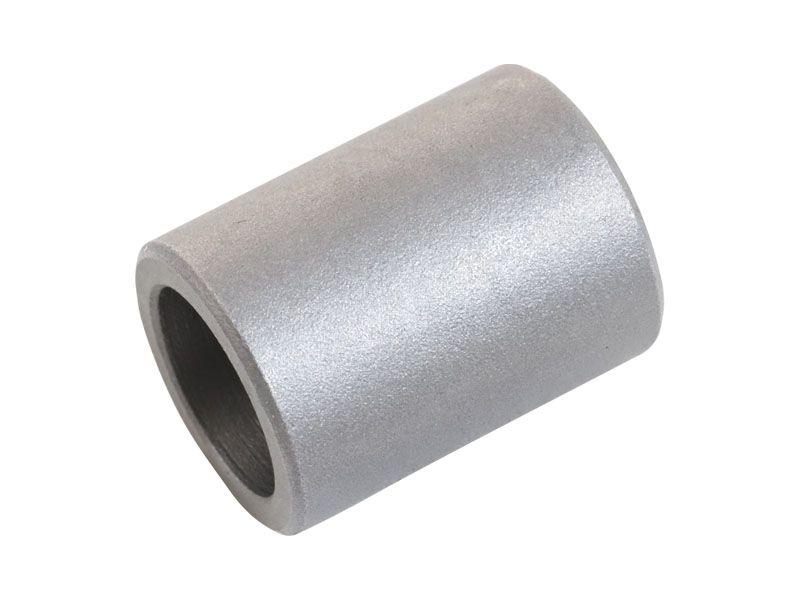

9B-0523: ПРОКЛАДКА

Description:
A Spacer creates a precise distance or gap between two objects. The spacer is designed to fit over fasteners. The size and shape of a steel Spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components.

Attributes:
• Provided with a smooth surface and no threads so that it can be easily positioned and adjusted without the risk of damaging surrounding components.
• Help reduce vibration, which can improve the efficiency of the machine and reduce wear and tear.

Applications:
A Spacer is used to increase the distance between the parts being fastened, mostly used in Cat 112, 112E, 112F, and 12E Motor Grader, 416F, 420F, 422F, 428F, 430F, 432F, 434F, and 442F Backhoe, 44 Hydraulic Control, 572E, 572F, and 583H Pipelayer, 631B, 631C, 637, 641, 641B, 651, 651B, and 657, 657B Scraper, 631C, 637, 641B, 651B, 657B, DW20E,DW20F,DW20G, and DW21C,DW21D,DW21G Wheel Tractor Scrapers, 75, D2, D4, D6, D7R, D8,RD8, D8R, D9, D9G, D9R, and D9T Track Type Tractor, 797F Truck, 914G, 994F and IT14G Wheel Loader, D17000, D311, D326F, D337F, D342,D342C, D353C,D353D,D353E, D375D, and D397D Engine (Piston).

• Inner Diameter (in): 0.53

• Inner Diameter (mm): 13.5

• Length (in): 1

• Length (mm): 25.4

• Material: Steel,Carbon Steel,Structural Steel,Coating Fluid

• Outer Diameter (in): 0.77

• Outer Diameter (mm): 19.05

• Washer Type: Flat

• Coating: Oil with Corrosion Inhibitor
