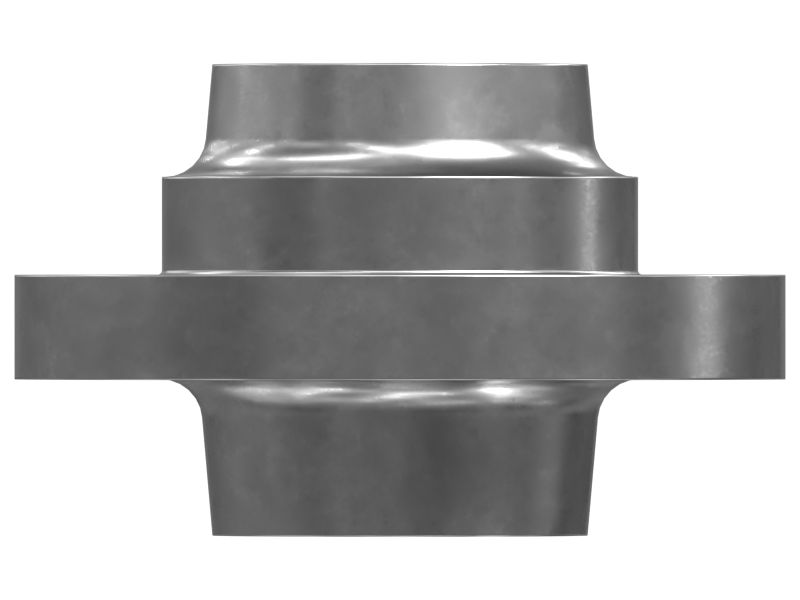

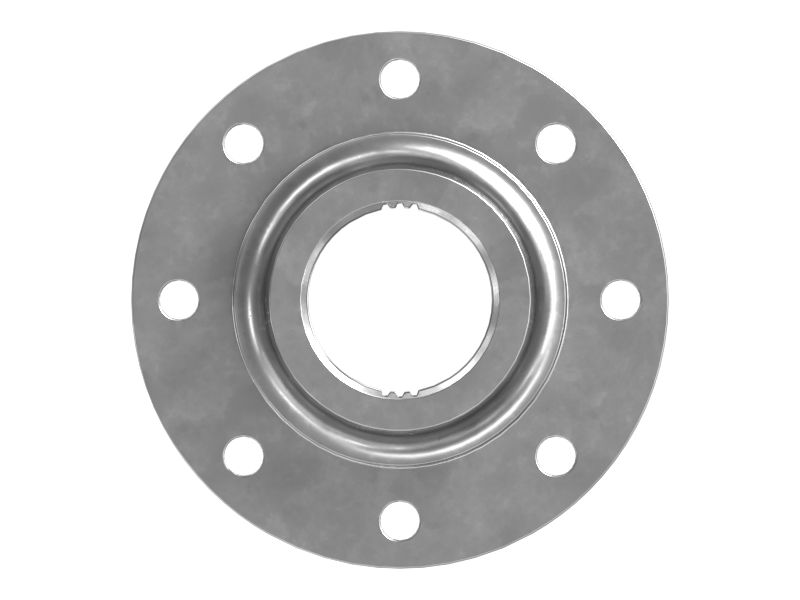

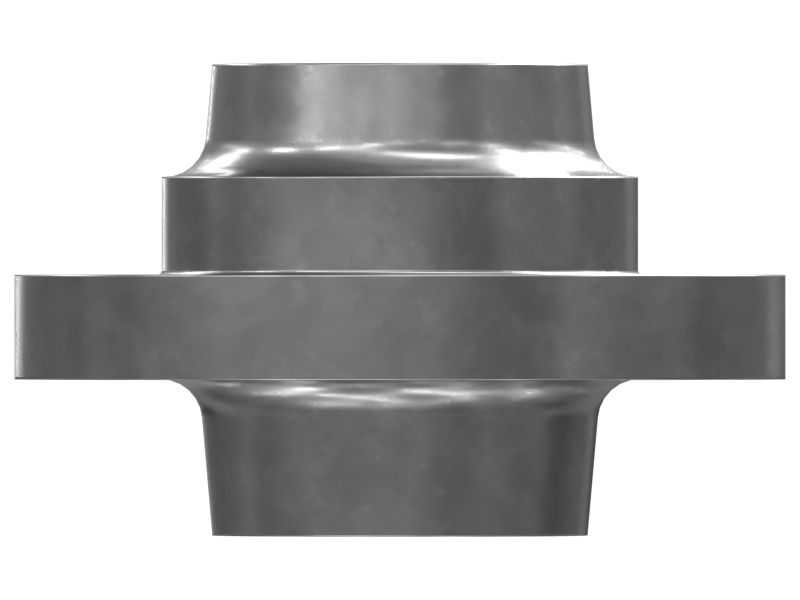

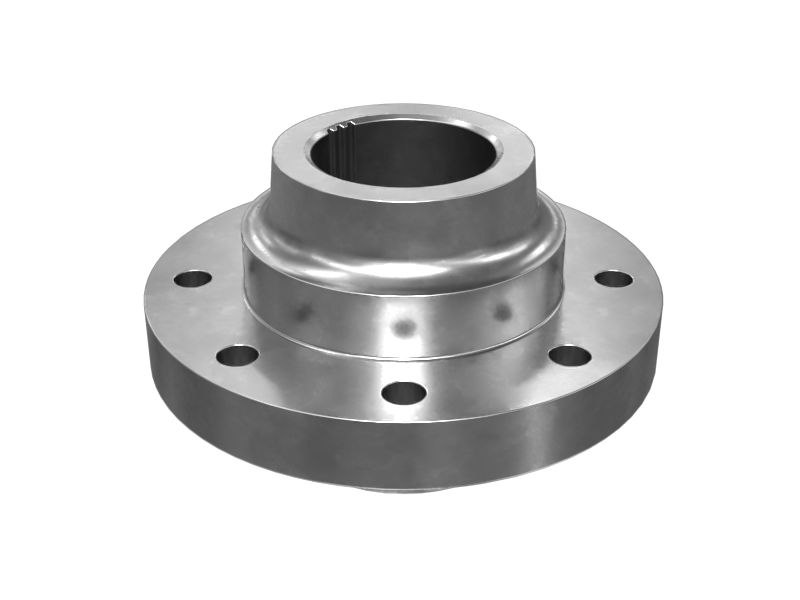

8W-5615: ФЛАНЕЦ

The Transfer Case Drive Flange is a mechanical component located at the output of the transfer case assembly. Its primary function is to transfer power generated by the engine and transmission to the drive shaft or axle, enabling the propulsion of the equipment. This flange is bolted and splined onto the output shaft of the transfer case and interfaces with the input shaft of the drive shaft or axle assembly. The transfer case drive flange transfers rotational power from the transfer case to the drive shaft or axle, allowing it to move. It ensures proper alignment and engagement between the transfer case output shaft and the drive shaft or axle input shaft. The drive flange helps distribute torque evenly to the drive shaft or axle, promoting smooth and efficient operation of the vehicle, especially in off-road conditions.

Attributes:
• Constructed from high-strength material to withstand the torque and load demands.
• Ensure proper fitment and alignment with both the transfer case output shaft and the drive shaft or axle input shaft.
• Include sealing mechanisms to prevent lubricant leakage and contamination from entering the transfer case

Applications:
The Transfer Case Drive Flange is located at the output end of the transfer case assembly, which is usually situated between the transmission and the drive shaft or axle connecting the transfer case to the front and rear drive shafts or axles to facilitate efficient power transfer from the transfer case to the drive wheels.

• Material: Low Alloy Steel
