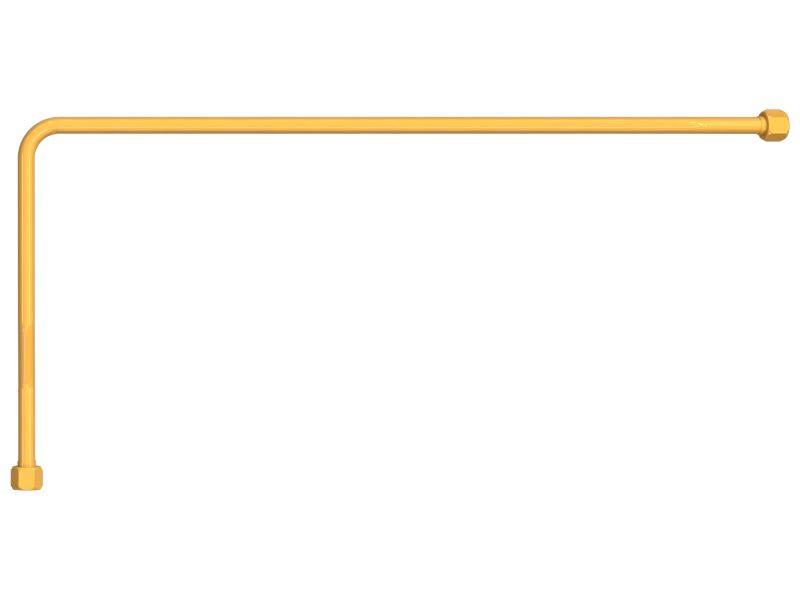

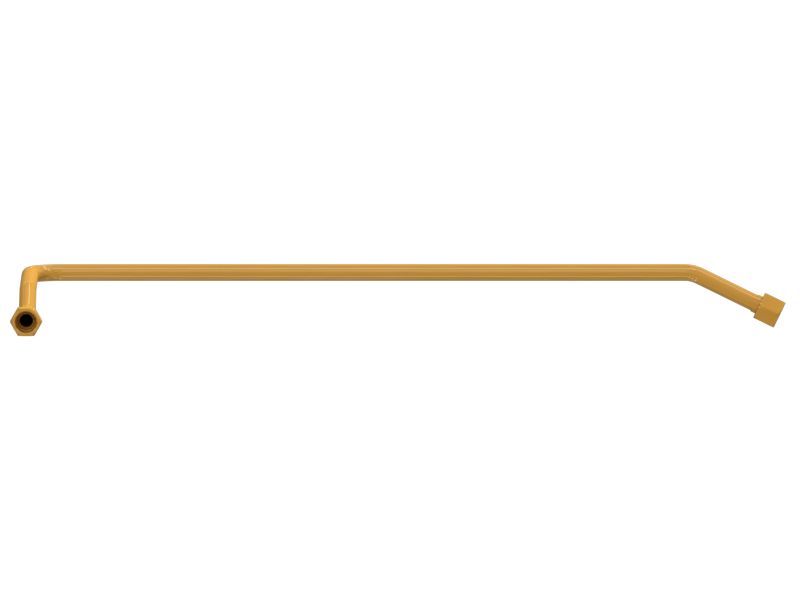

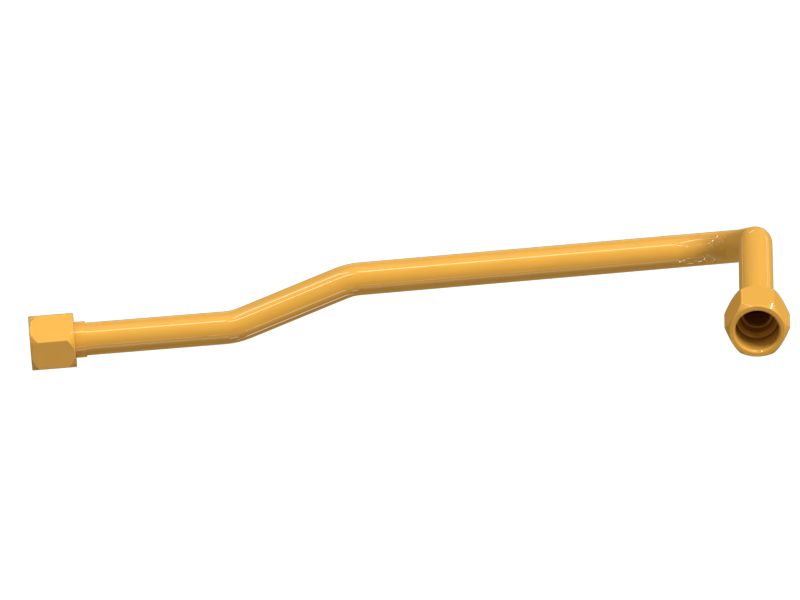

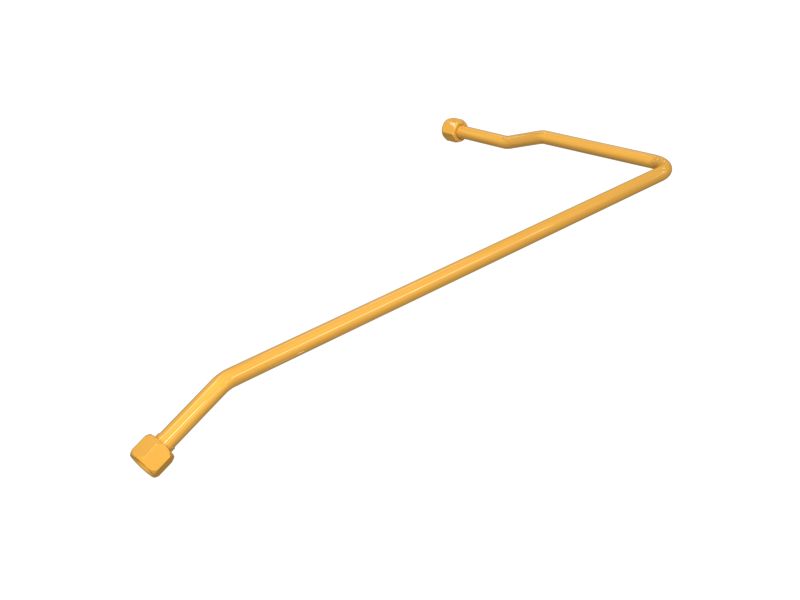

8V-8825: ТРУБКА В СБОРЕ

The Hydraulic Oil Cooler Lines Tube Assembly is responsible for facilitating the flow of hydraulic oil between the oil cooler and the hydraulic tank. The pipe helps in managing the temperature of the hydraulic oil, ensuring optimal operating conditions and system performance. This process helps prevent the hydraulic oil from overheating, which is required for maintaining the efficiency of the hydraulic components. The assembly includes a nut, and sleeve on both ends to ensure a secure and leak-free connection.

Attributes:
• Helps to ensure optimal viscosity and lubrication properties for smooth operation
• Manufactured to precise specifications and are built for durability, and reliability

Applications:
The Hydraulic Oil Cooler Lines Tube Assembly is used to efficiently channel hydraulic oil from the oil cooler to the tank facilitating the exchange of heat to regulate the temperature of the hydraulic fluid.

• Outer Diameter (mm): 19

• Outer Diameter (in): 0.75

• Approximate Overall Length (mm): 1251

• Material: Steel
