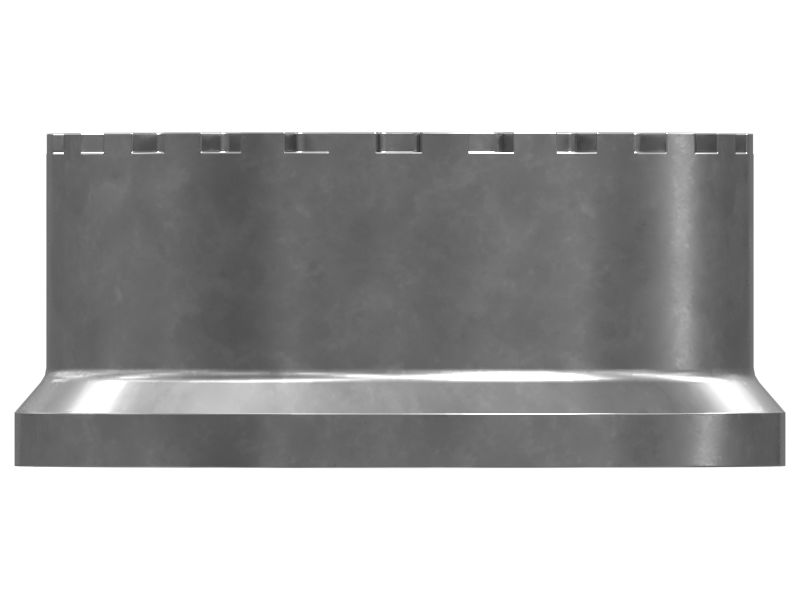

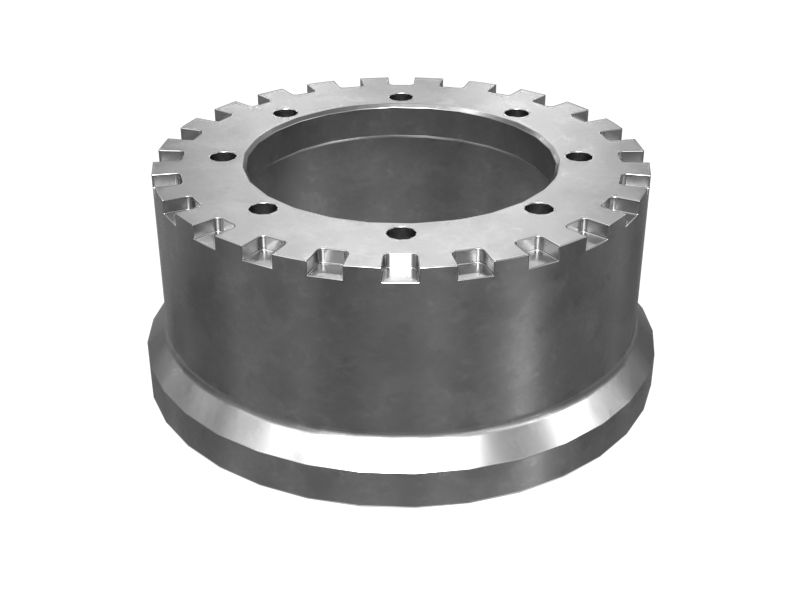

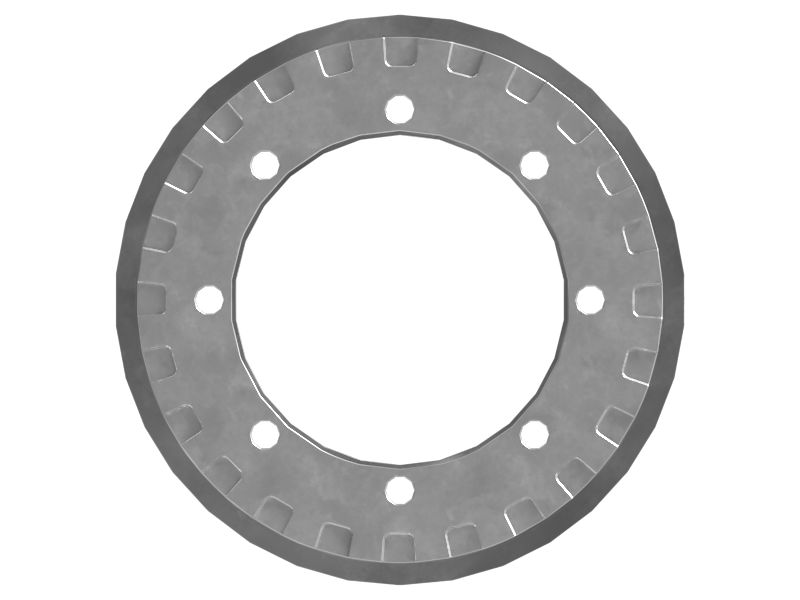

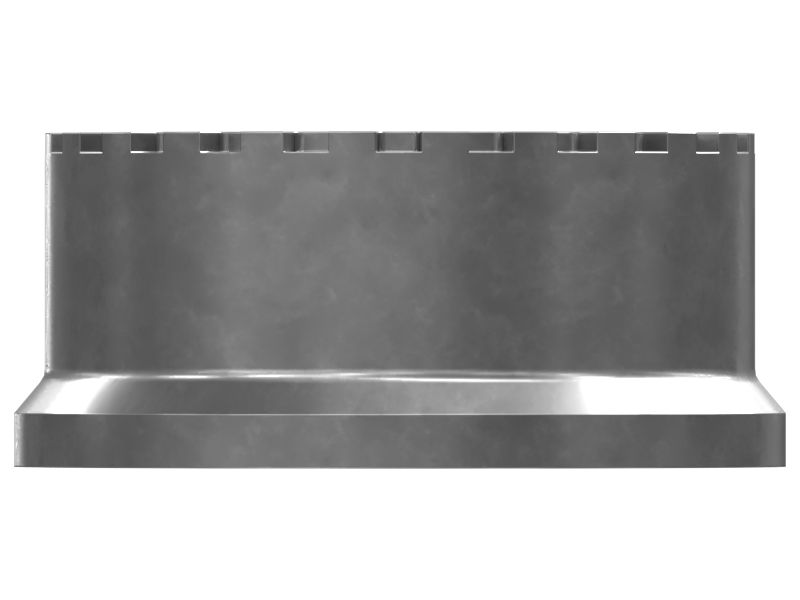

8V-7574: ВАЛЕЦ

Description:
An Output Transfer Gear Brake Drum is used in applications where power transfer and braking are essential. It is a cylindrical drum-shaped component that serves the primary function of power transfer and braking. In terms of power transfer, the output transfer gear brake drum acts as a central point where power from the transmission or gearbox is transferred to the driven wheels or other components. It contains gears or splines that engage with corresponding gears or splines on the output shaft, ensuring the transfer of rotational force.

Attributes:
• It is designed to fit seamlessly within the overall system, enabling efficient power transfer and braking.
• It provides reliable power transfer and braking performance over an extended period.
• Withstand the forces and temperatures associated with power transfer and braking.

Applications:
An Output Transfer Gear Brake Drum enables power transfer and provides braking capabilities for the rear wheels. It is mainly used in Cat 304.5 Excavators, 515, 520D, 522D, 525, 525C, 535B, 535C, 545, and 545C Skidder, 525C, 545C, 613C, and 613G Oem Applications, 613C Scraper, 613C Wagon, 613C, 613G, and 613H Wheel Tractor Scrapers, 928F, 936, 936E, 936F, 938F, 938G, 950F, 960F, G936, IT28B, IT28F, IT38F, and IT38G Wheel Loader, TR13, TR16, and TR28 Powertrain, UD245 Underground Mining.

• Inside Diameter (in): 6.18

• Inside Diameter (mm): 157

• Material: Iron Casting,Gray (Flake) Iron

• Outside Diameter (in): 10.73

• Outside Diameter (mm): 272.5

• Weight (kg): 11.34

• Weight (lb): 25

• Width (in): 4.62

• Width (mm): 117.3
