8T-0092: ГАЙКА

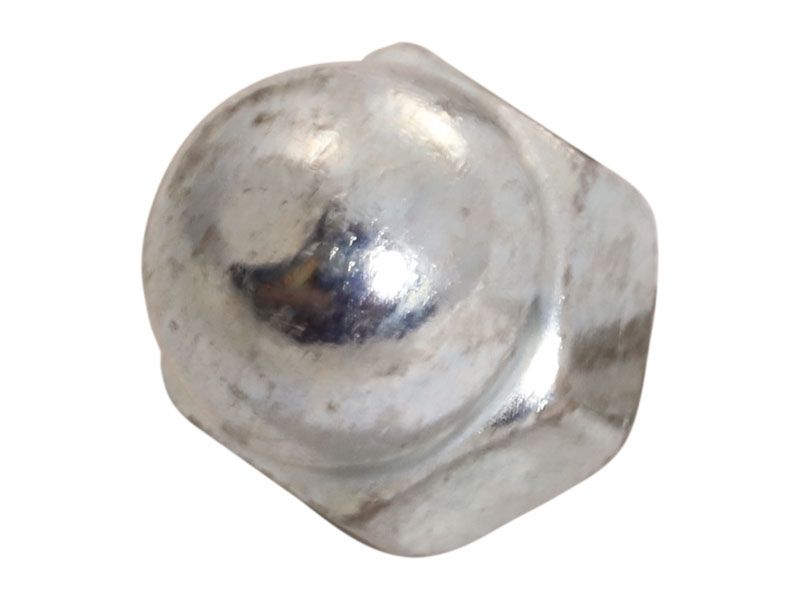

An acorn nut is a type of fastener that is used to cover and protect the threaded end of the bolt or screw. It is typically shaped with a rounded top and hexagonal bottom and threaded on the inside allowing it to be screwed on the end of the fastener connection.

Attributes:
Made from stainless steel offers good resistance to corrosion and high strength
Designed with precise specifications to fit in tight spaces

Applications:
An Acorn is used for tightening the fasteners like bolts and screws, mostly used in Cat® 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3512C -, 3516, 3516B, 3516C, C27 and C32 Engine (Piston), 611, 613C, 615C, 621B, 621E, 621F, 621R, 621S, 623B, 623E, 623F, 627B, 627E, 627F, 631C, 631D, 631E, 631F, 633D, 633E, 637D, 637E, 637F, 639D, 639E, 651E, 651F, 657E and 657F Wheel Tractor Scrapers, TH35 and TH38 Powertrain.

• Hex Size (in): 0.37

• Hex Size (mm): 9.52

• Nut Type: Acorn

• Material: Stainless Steel,Alloy Zinc

• Thread: 10-24

• Weight (kg): 0.001

• Weight (lb): 0.002

• Thread Size (dia x pitch) (mm): No. 10 (.190)x24

• Class or Grade: Austenitic S303

• Coating: Zinc

• Hand of Thread: RH
