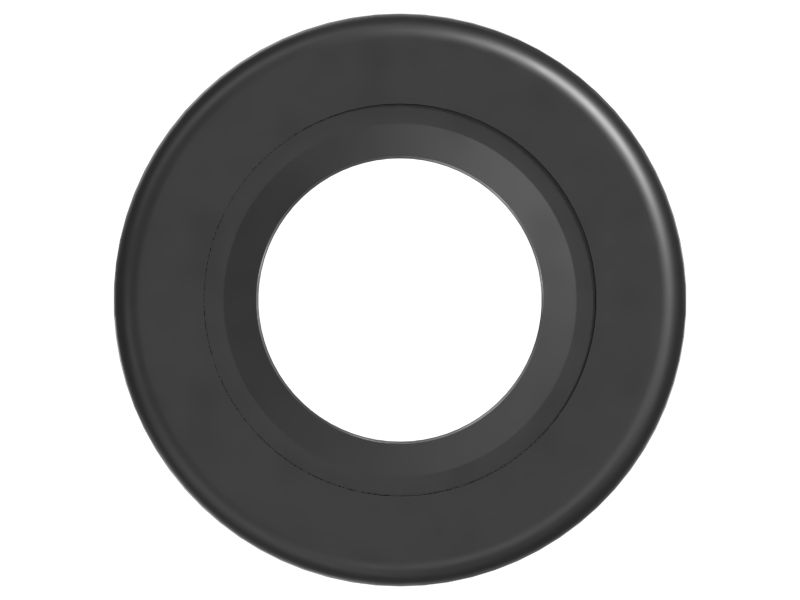

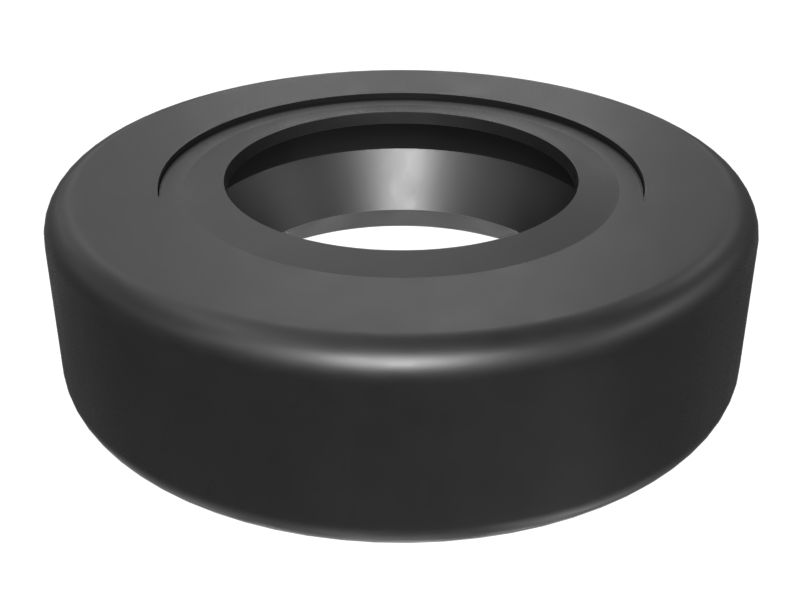

8S-6959: УПЛОТНЕНИЕ

Description:
A Lip Type Seal is a ring-shaped elastomeric seal that are designed for use around a shaft to prevent the leakage of fluids. It consists of a flexible lip that makes contact with the rotating shaft and is designed to fit tightly around the rotating shaft and create a barrier between the components.

Attributes:
• Helps to dampen the vibration caused during the operation.
• Provides Effective Sealing.

Applications:
A Lip Type Seal is used to exclude contaminants while retaining lubricants, mostly used in Cat 561D Pipelayer, 786 Bottom Dump Body, 786 Truck, 824B, 834, and 834B Wheel Type Tractor, 825B, 826B, 835, 836, CB10, CB13, CB15, CB16, CB44B, CB46B, CB54B, CB64B, CB66B, CB68B, CB7, CB8, CC10, CC7, CD10, CD44, CD44B, CD54, CD54B, and CD8 Compactor, 988, 988B, 988F, 992, 992B, 992C, 992D, 994, and 994D Wheel Loader, CB-434D, CB-444D, CB-544D, and CB-546D Paving Equipment, D550 Articulated Truck, D5B, and D5E Track Type Tractor, V1100 CTH, V700, V800, V900CH, V925, and V925LH Lift Truck.

• Height (in): 0.25

• Height (mm): 6.35

• Inner Diameter (in): 0.44

• Inner Diameter (mm): 11.12

• Outer Diameter (in): 0.81

• Outer Diameter (mm): 22.38

• Weight (kg): 0.01

• Weight (lb): 0.02

• Material: Carbon Steel,Nitrile / NBR / HNBR / XNBR Rubber,P
