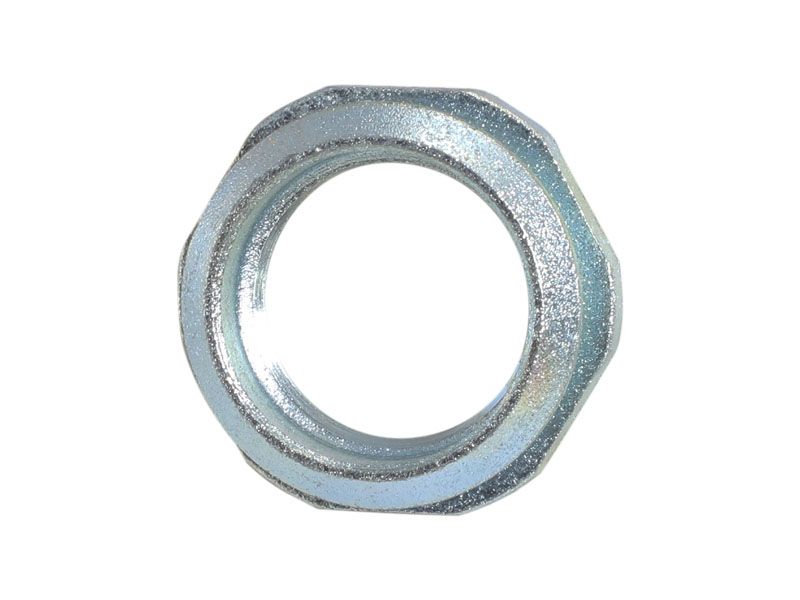

8J-1622: ГАЙКА

A flanged stake nut is a type of nut that is commonly used in valve units have a section of the nut that is deformed onto the bolt or stud to create a permanent interference fit. This interference fit creates a frictional force between the nut and the bolt, which helps to prevent the nut from coming loose due to vibration or other external forces.

Attributes:
Strong and durable
Flanged section of the nut has a larger surface area to distribute the load

Applications:
A flanged stake nut helps to provide a secure connection for the components in the valve unit, mostly used in Cat® Cat® 120G, 12G, 130G, 140G, 14G, 160G, and 16G Motor Grader, 583T and PL83 Pipelayer, 65, 65B, 65C, 65C, 65D, 70C, 75, 75C, 75D, 85C, 85D, D5R, D6N, D6R, D6T, D8, D8N, D8R, D8T, D9R, D9T, DEUCE and DV87 Track Type Tractor, 943B, 963, 963B and 973 Track Loader, 950B, 950E, 950F, 966D, 966E, 966F and 980C Wheel Loader, V1100 CTH, V550, V620, V700, V800, V900CH, V925, and V925LH Lift Truck.

• Flange Diameter (in): 1.32

• Flange Diameter (mm): 33.52

• Nut Type: Hex

• Hex Size (in): 1.25

• Thread Size (in - TPI) (in): 7/8-20

• Hex Size (mm): 31.75

• Material: Steel,Alloy Zinc,Carbon Steel,Alloy Steel

• Thread: 7/8-20

• Weight (kg): 0.02

• Weight (lb): 0.05

• Thread Size (dia x pitch) (mm): 7/8x20

• Coating: Zinc

• Hand of Thread: RH
