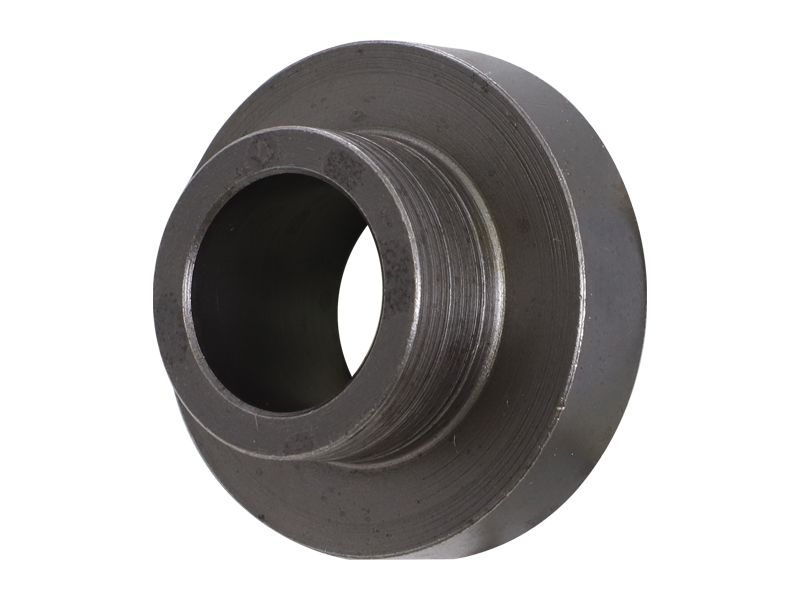

8G-4513: ПРОКЛАДКА

Description:
A Flange Spacer is located in the front axle of the front frame assembly used to align the pin. creates a gap between two components while providing additional support and stability. They are also used to provide positioning assistance between components. The size and shape of a spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components.

Attributes:
• Withstand heavy loads and provide support for components.
• Handle high pressure without deforming or breaking.
• Reduces vibration, which can improve the efficiency of the machine and reduce wear and tear.

Applications:
A Flange Spacer helps to mount the pin in the front axle in powertrain assembly, widely used in Cat 515, 520D, 522D, 525, 525B, 535B, 535C, 545, 545C and D4H Skidder, 545C OEM Applications, 65, 65B, 65C, 75, 75C, D3B, D3C, D4H, and D4L Track Type Tractor, 963 and 963B Track Loader.

• Flange Diameter (in): 1.77

• Flange Diameter (mm): 45

• Inner Diameter (in): 0.78

• Inner Diameter (mm): 19.75

• Outer Diameter (in): 1.1

• Outer Diameter (mm): 28

• Thickness (in): 0.87

• Thickness (mm): 22

• Material: Carbon Steel
