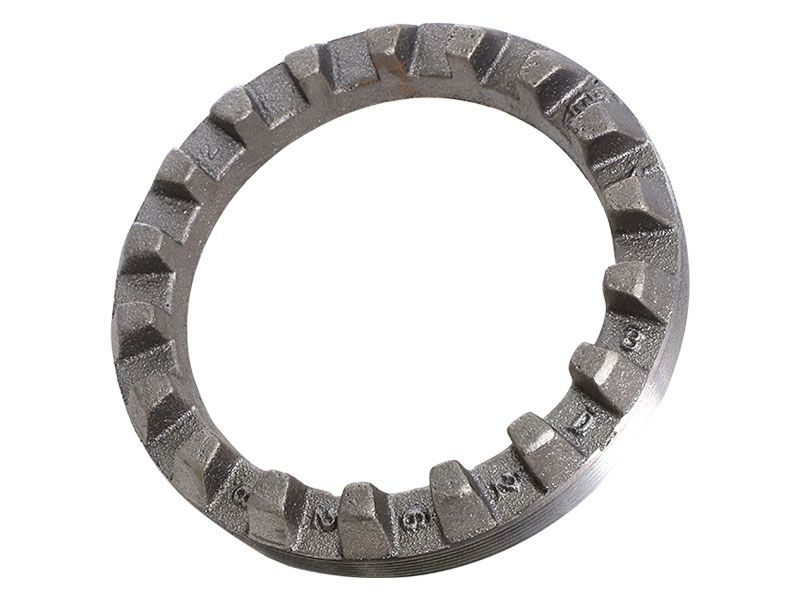

8D-2628: ГАЙКА

Description:
A Bearing Locknut is a type of fastener that is used to secure a bearing onto a shaft or other component. It is typically made from high-strength material like ductile cast iron which includes a series of slots or notches on the outer surface and is designed to prevent the bearing from loosening or shifting on the shaft.

Attributes:
• Able to endure high pressures without deforming.
• Has 18 identically spaced slots for fastening the nut in place.

Applications:
A Bearing Locknut is used to ensure that bearings remain securely fastened in the Differential and Bevel Gear Unit, mostly used in Cat 528, 528B and 530B Skidder, 613, 613B, 613C, 613G, 613H and 615 Wheel Tractor Scrapers, 613C OEM Applications, 613C Scraper, 613C Wagon, 814B Wheel Type Tractor, 815B and 816B Compactor, 950B, 950E, 966D, 966E, 966F and 966G Wheel Loader, D250D, D25C, D25D, D300E, D30C, D30D, D35-HP, D350C, D350D, D350E, D35C, D400, D400D, D400E and D40D Articulated Truck, TA29, TH28, TH35, TR16 and TR35 Powertrain.

• Thickness (mm): 28.96

• Outer Diameter (in): 5.81

• Outer Diameter (mm): 147.44

• Thickness (in): 1.14

• Thread: 5-3/4-12

• Weight (kg): 1.27

• Weight (lb): 2.8

• Material: Alloy Iron,Compacted (Vermicular) Iron
