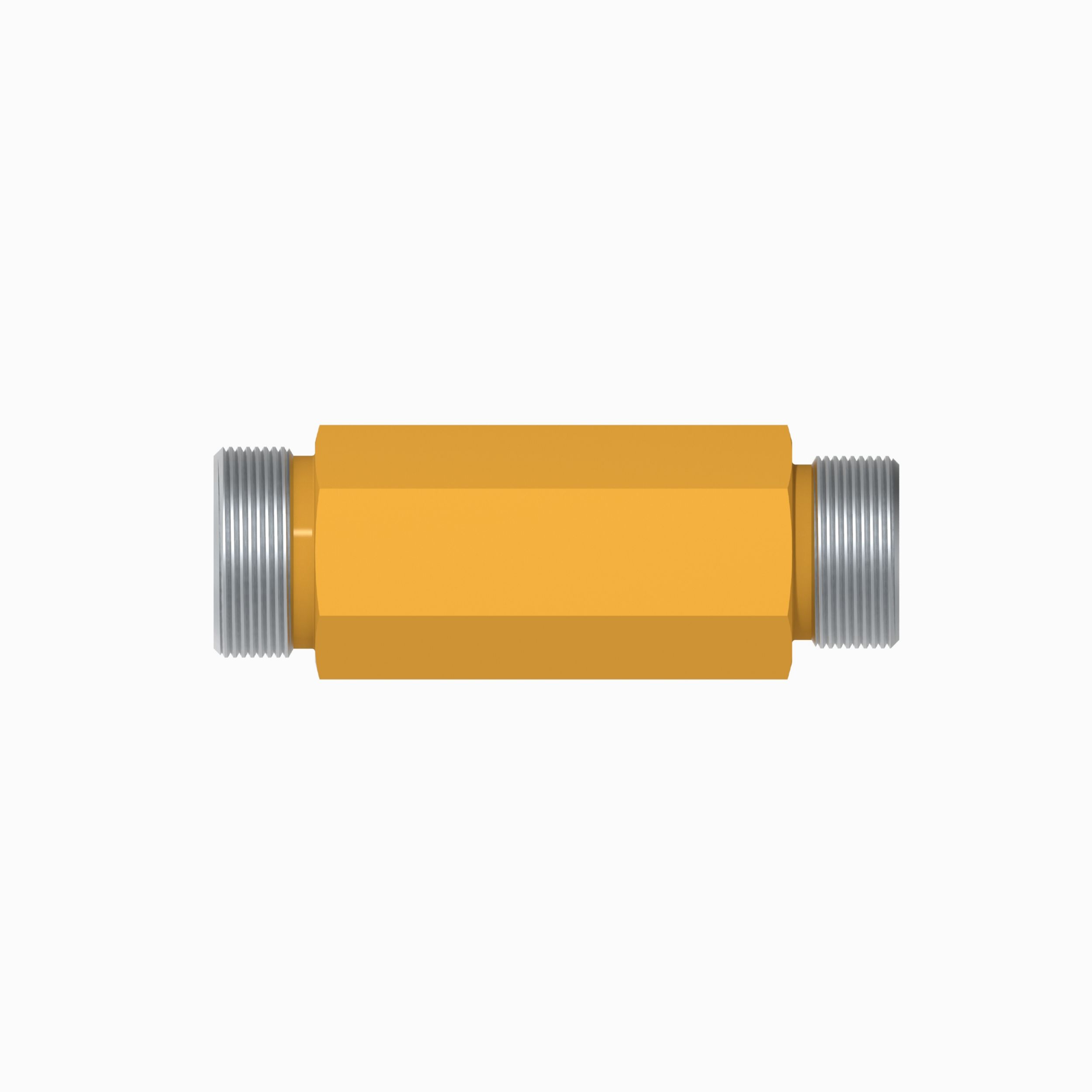

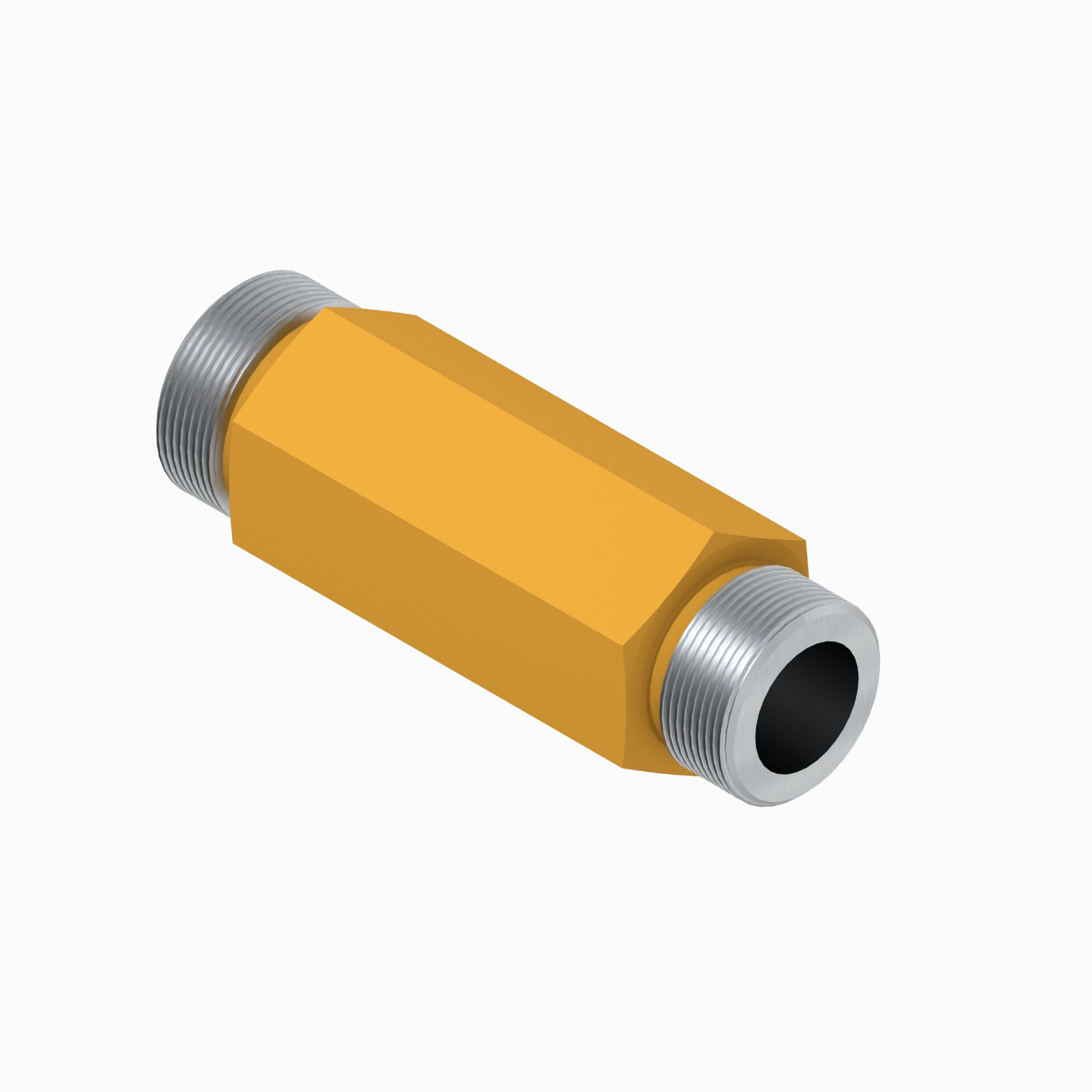

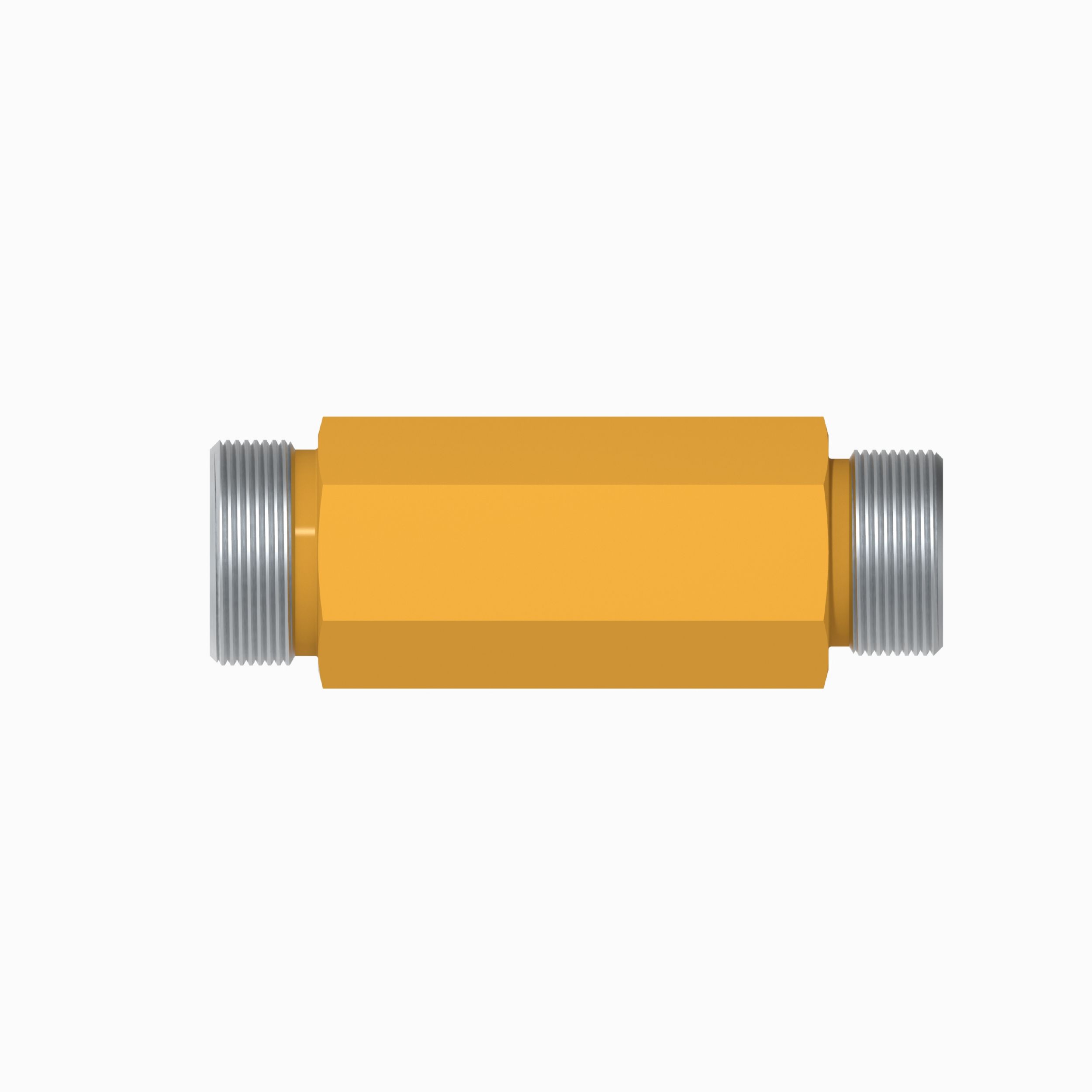

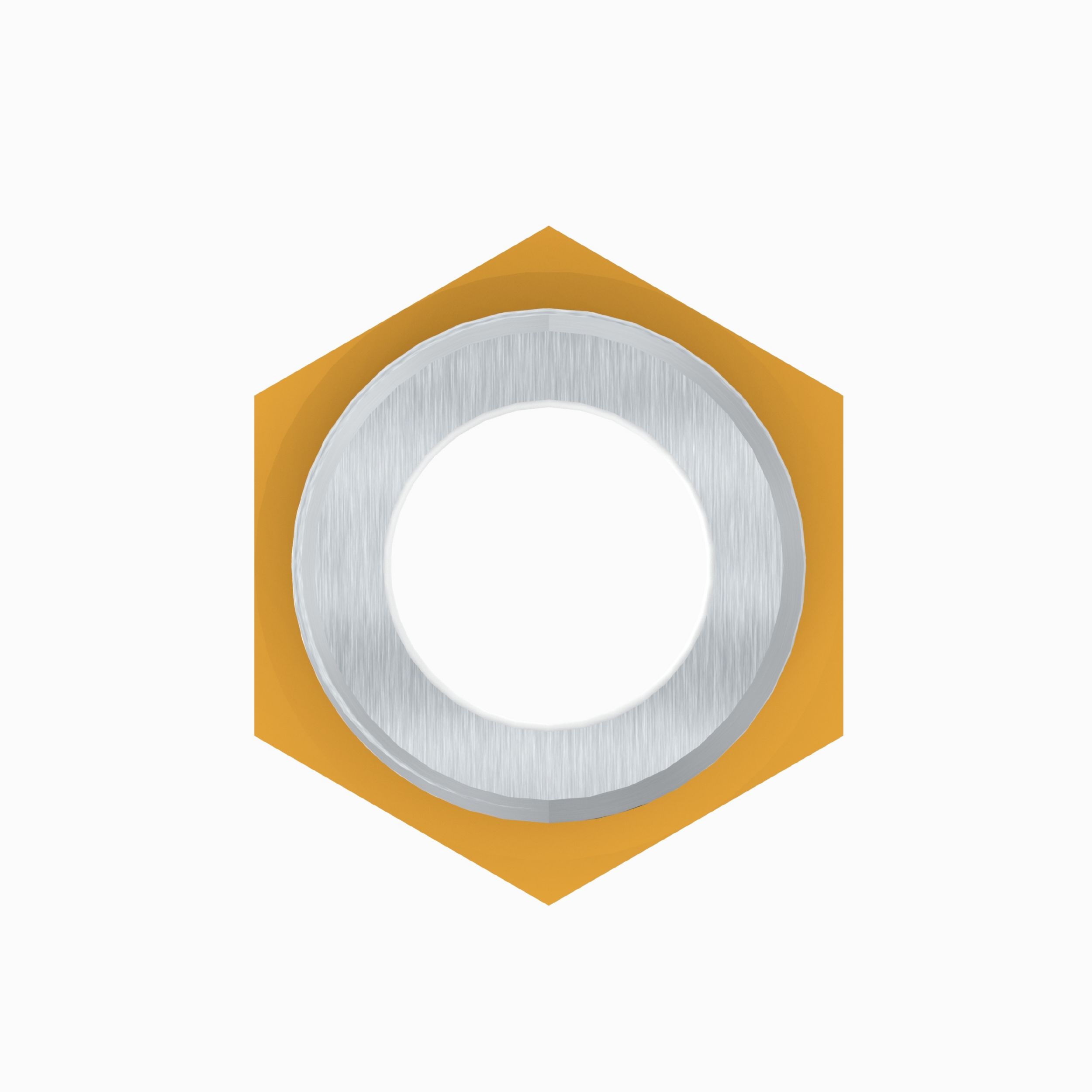

8C-3443: РАЗЪЕМ

Description:
A Connector is a component used to connect hoses. Connectors come in many different shapes and sizes depending on their intended use. There are many different types of hose or tube Connectors available, including threaded Connectors, quick-connect Connectors, and push-on Connectors. They are designed for specific applications and environments, such as high-temperature or high-vibration environments.

Attributes:
• Fitted for 25.4mm outer diameter tube.
• The connector type is O-Ring PORT male to O-RING male.

Applications:
A Connector is used to provide a secure and leak-tight connection between two components, widely used in CAT Asphalt Pavers, Backhoe Loaders, Challengers, Off-Highway Trucks, Excavators, Track Feller Buncher, Integrated Tool carriers, Load Haul Dump, Mini Hydraulic Excavators, Motor Graders, Trucks, Track Loaders, Track-Type Tractors, Wheel Tractors, Water Fording Tractors, Wheel Scrapers, Wheel Loaders.

• Hex Size (in): 1.5

• Coolant and Urea Compatible Seal: 415-2887 (1-7/16-12), 6V-5064 (1-5/16-12)

• Hex Size (mm): 38.1

• Oil and Fuel Compatible Seal: 228-7093 (1-7/16-12), 238-5084 (1-5/16-12)

• Transmission and Hydraulic Oil Compatibile Seal: 5K-9090 (1-7/16-12), 7M-8485 (1-5/16-12)

• Length (in): 4.66

• Length (mm): 118.5

• Thread: 1 7/16-12, 1 5/16-12

• Weight (kg): 0.75

• Weight (lb): 1.65

• Material: Carbon Steel
