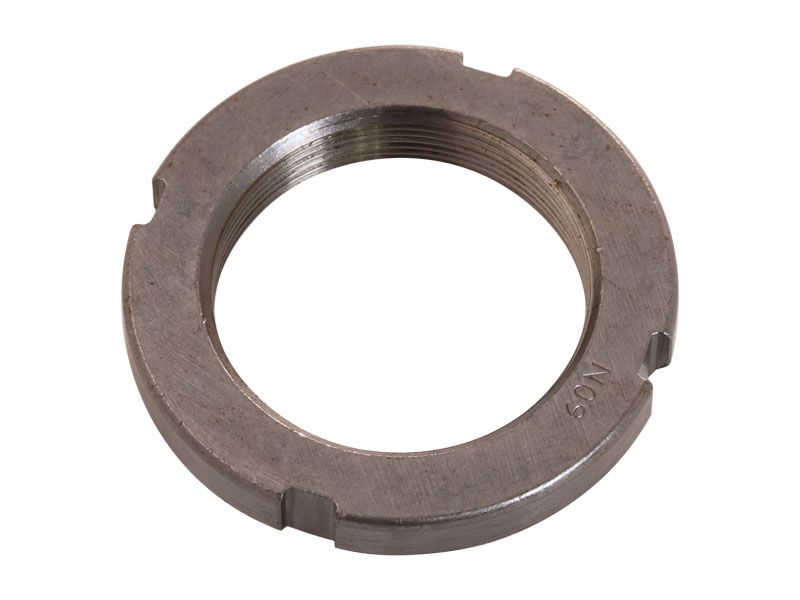

8B-7207: ГАЙКА

A Bearing Lock Nut is a type of fastener designed to provide a secure locking mechanism for fasteners such as bolts or screws to lock the bearing onto a shaft. It is typically made from strong material like steel and reduces friction and prevents any movement between the components.

Attributes:
Edges of the slots were chamfered to reduce the stress concentration of the nuts.
Has good resistance to wear and tear.

Applications:
A Bearing lock Nut is used to hold the bearing in place and prevent it from coming loose, widely used in Cat® Motor Grader, Excavators, Skidder, Pipelayer, Scraper, Wheel Tractor Scrapers, Truck, Wagon, Wheel Type Tractor (For Dozer), Wheel Loader, Track Type Tractor, Auger - Hydraulic, Paving Equipment, Swing Crane - Military, Engine (Piston), Wheel Tractor - Direct Drive, Trencher - Hydraulic High Flow and Standard Flow.

• Material: Steel,Carbon Steel,Alloy Mixed

• Outer Diameter (in): 2.53

• Outer Diameter (mm): 64.29

• Nut Type: Round (Spanner or Bearing)

• Thread Size (in - TPI) (in): 7/4-18

• Thread: 1 3/4-16

• Weight (kg): 0.13

• Weight (lb): 0.29

• Thread Size (dia x pitch) (mm): 1.767x18

• Hand of Thread: RH
