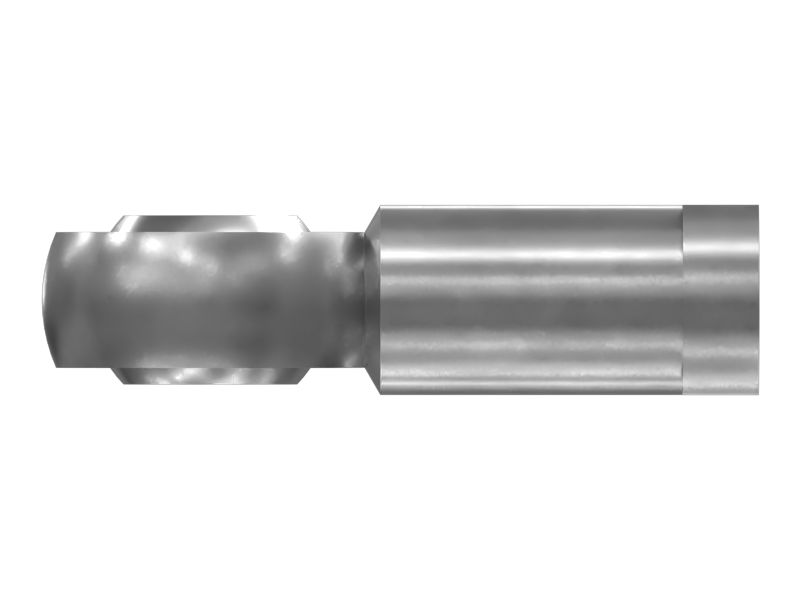

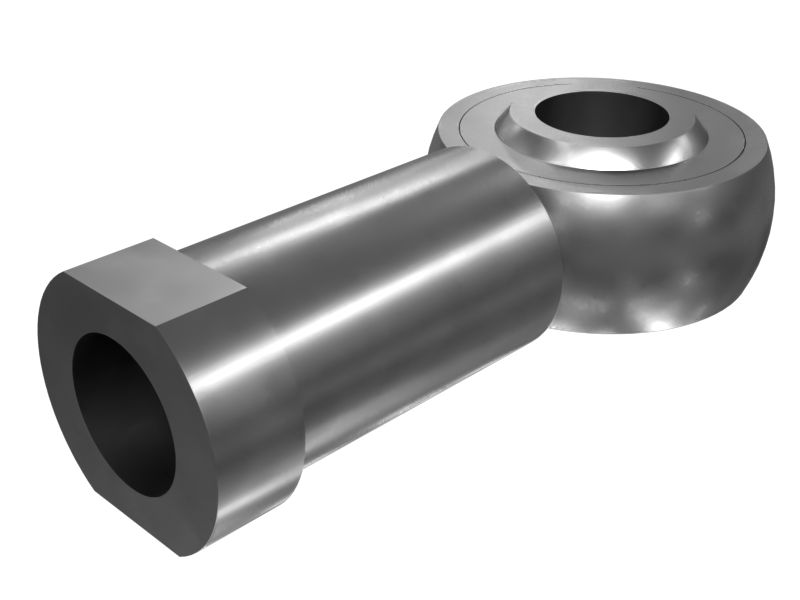

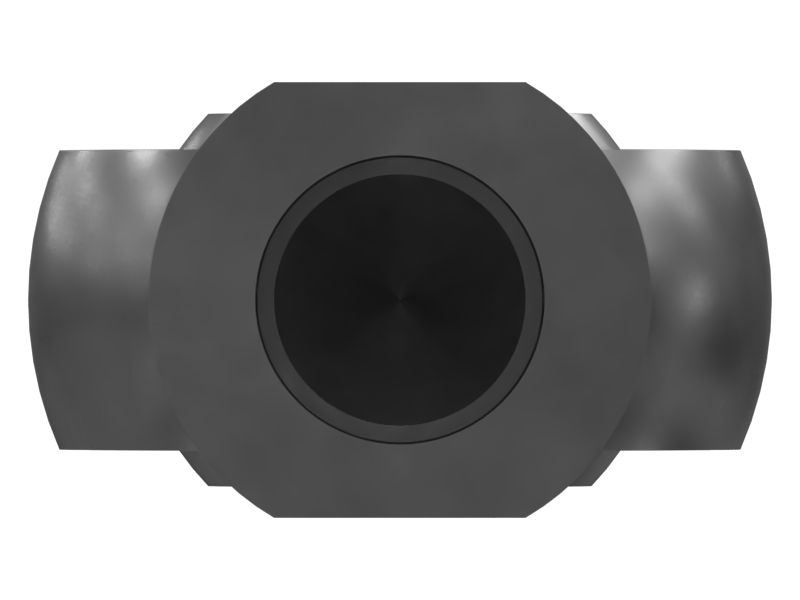

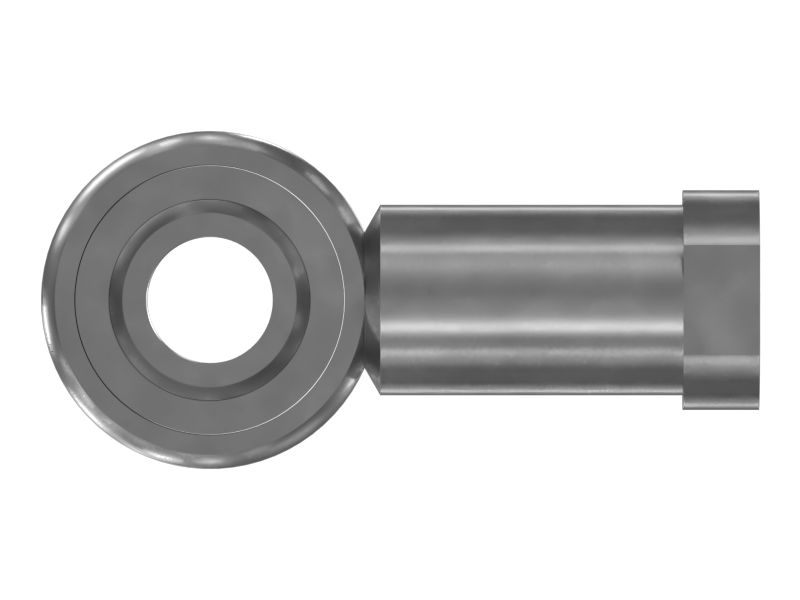

7V-0574: ГОЛОВКА ШАТУНА

Description:
Cat® spherical rod ends are manufactured for long service life, minimal maintenance, and high operational reliability. Spherical rod ends provide a mechanical articulating joint that accommodates oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the attached shaft. Spherical rod ends consist of an eye-shaped head with an integral shank that forms the housing for a spherical bearing. Bearings reduce friction and provide protection between mating parts. They are specifically designed for low to medium speed, high load applications with little to medium side thrust.

Attributes:
• Size 6
• Oil impregnated bronze bearing
• Length: 41.28 mm (1.625 in)
• Thread Size: 3/8-24
• Thread Length: 20 mm (0.787 in)
• Material: Steel
• Pivot Angle: 16°
• Large load capacity
• Easy mounting and dismounting
• Suitable for heavy static or alternate loads, and shock loads

Application:
Cat spherical rod ends are typically used in rod and linkage assemblies and control groups where strength and flexibility are crucial. Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Length to Pin Hole - A (mm): 41.28

• Rod End Diameter - B (mm): 25.4

• Thread Size (in): 3/8-24

• Length to Pin Hole - A (in): 1.625

• Rod End Diameter - B (in): 1.000

• Material: Alloy Copper,Other Mixed
