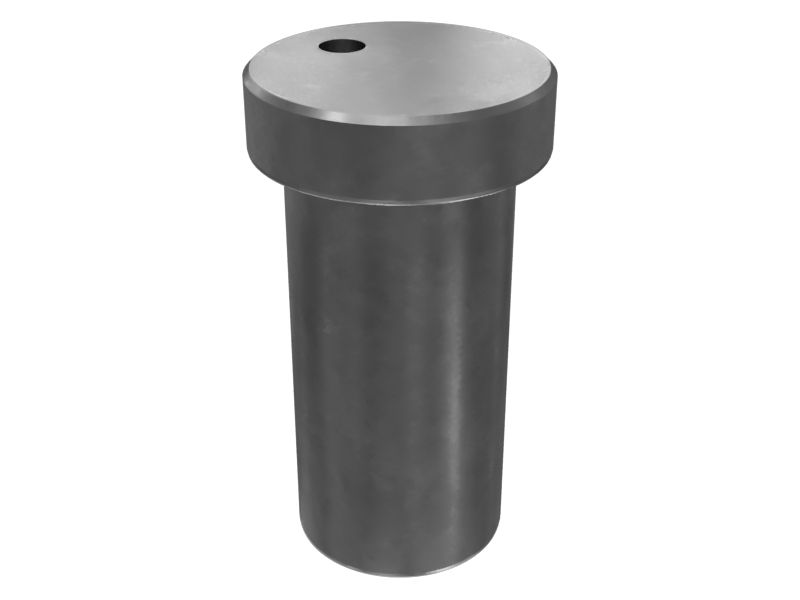

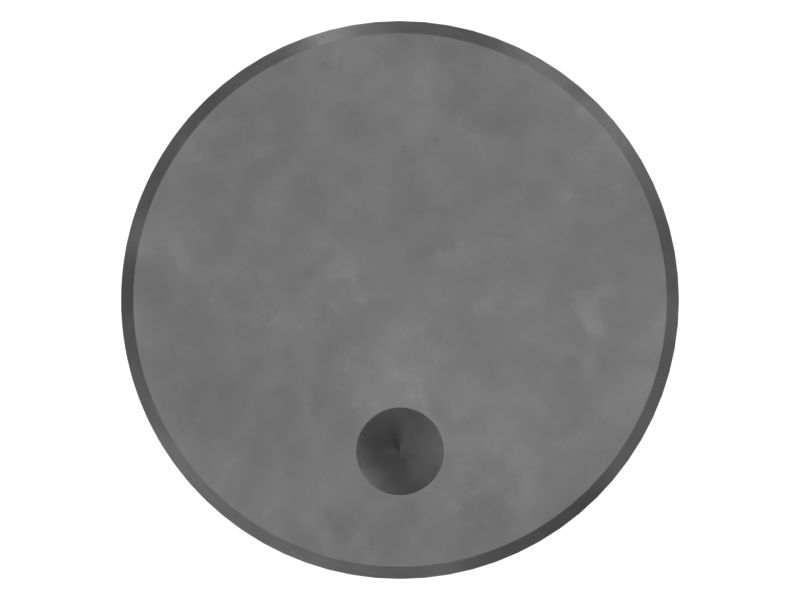

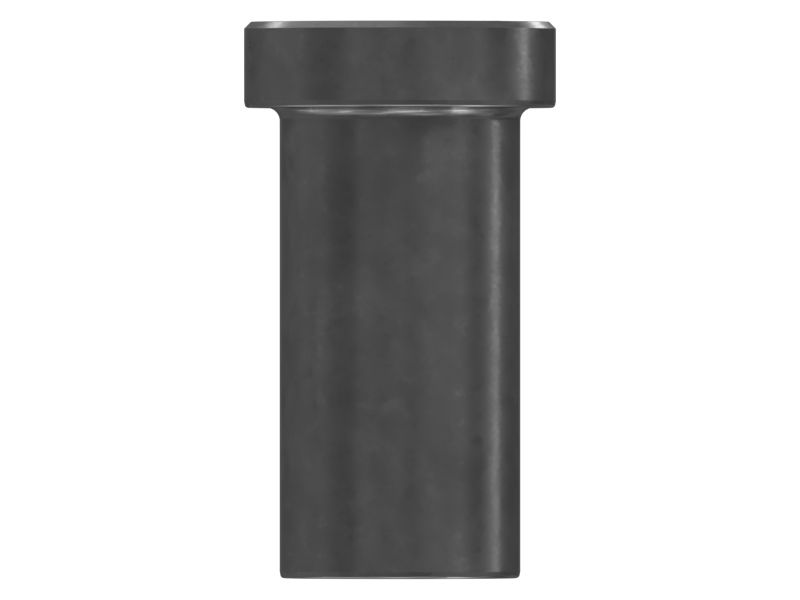

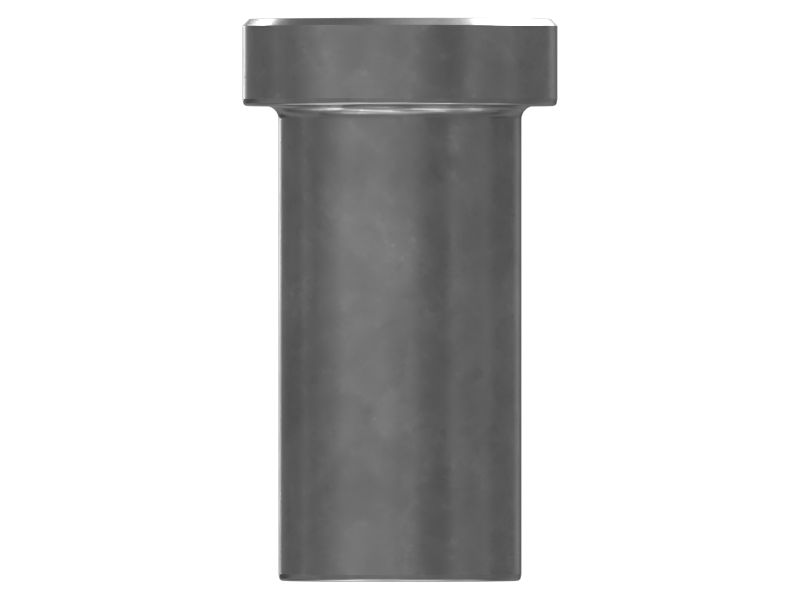

7G-5780: ВАЛ

Description:
Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat planetary shafts are designed to control the transmissions speed, direction and force for Cat machine operation.

Attributes:
• Hardened steel planet shaft
• Shaft Diameter: 54.012 mm (2.126 in)
• Shaft Effective Length: 105.742 mm (4.163 in)
• Head Diameter: 70.03 mm (2.757 in)
• Length: 125 mm (4.921 in)
• Thread Size: 3/8-16
• Chamfered ends

Application:
Service component for final drive groups. Consult your owner's manual or contact your local Cat Dealer for more information.

• Material Description: Steel

• Shaft Diameter (mm): 54.012

• Head Diameter (mm): 70.03

• Overall Length (mm): 125

• Shaft Diameter (in): 2.126

• Head Diameter (in): 2.757

• Overall Length (in): 4.921

• Thread Size (in): 3/8-16

• Material: Carbon Steel,Low Alloy Steel
