7G-4928: ПРОКЛАДКА

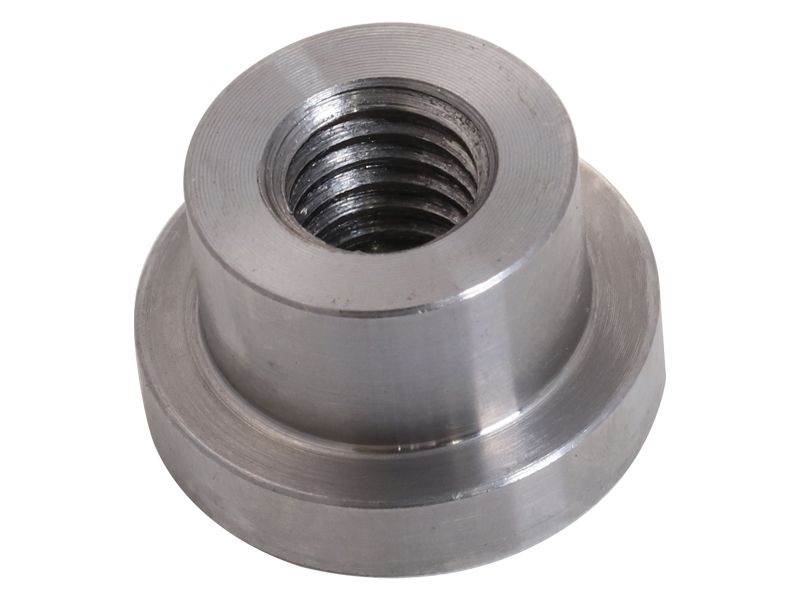

A Spacer is a fastener that is used to create space between two objects, They are also used to provide positioning assistance between components. The size and shape of a steel spacer can vary depending on its intended use, but they are typically manufactured to very tight tolerance to ensure accurate spacing between components. Spacers can be coated or heat treated to enhance their properties.

Attributes:
Withstands heavy loads and provides support for components in various applications.
Suitable for 3/8" inch fasteners.
Provides accurate alignment between components, ensuring that they are properly spaced and positioned.

Applications:
A Spacer is used to increase the distance between the parts being fastened, mostly used in Cat® 550, 570, and 580 Tree Harvester, 560 Harvester - 6 Wheel (Tree), 924G Wheel Loader, D10N, D10R, D11N, D11R, D6H, D6R, D7H, D7R, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, and D9T Track Type Tractor.

• Inner Diameter (in): 0.32

• Inner Diameter (mm): 8.2

• Material: Steel,Carbon Steel

• Outer Diameter (in): 0.9

• Outer Diameter (mm): 23

• Thickness (in): 0.55

• Thickness (mm): 14

• Thread: 3/8-16

• Weight (kg): 0.02

• Weight (lb): 0.05
