7C-2199: ХОМУТ

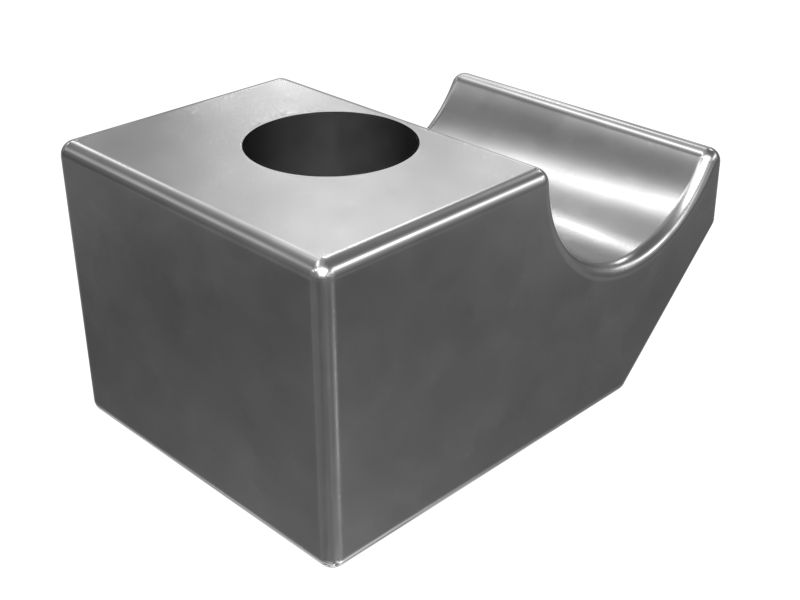

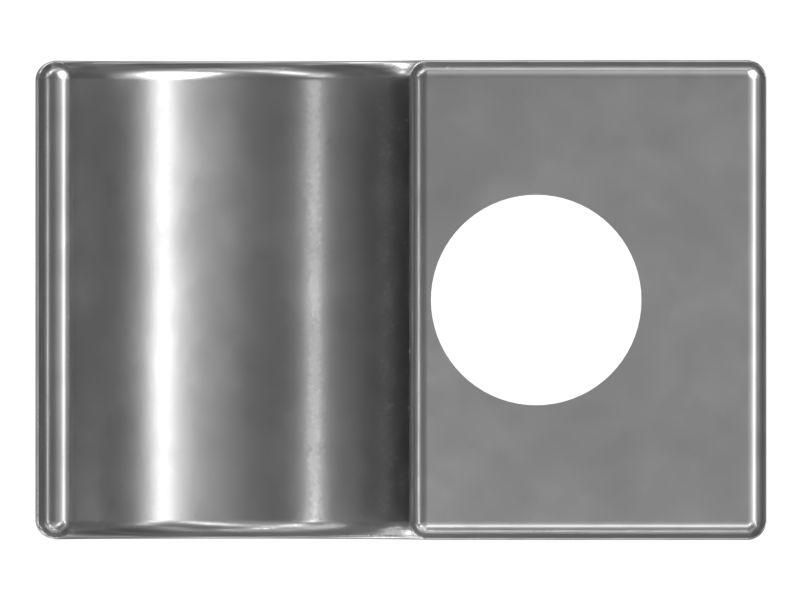

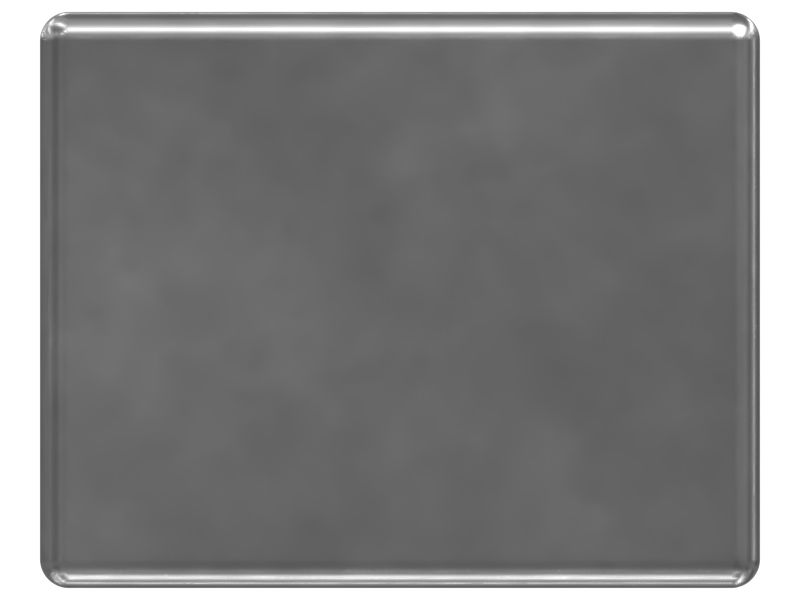

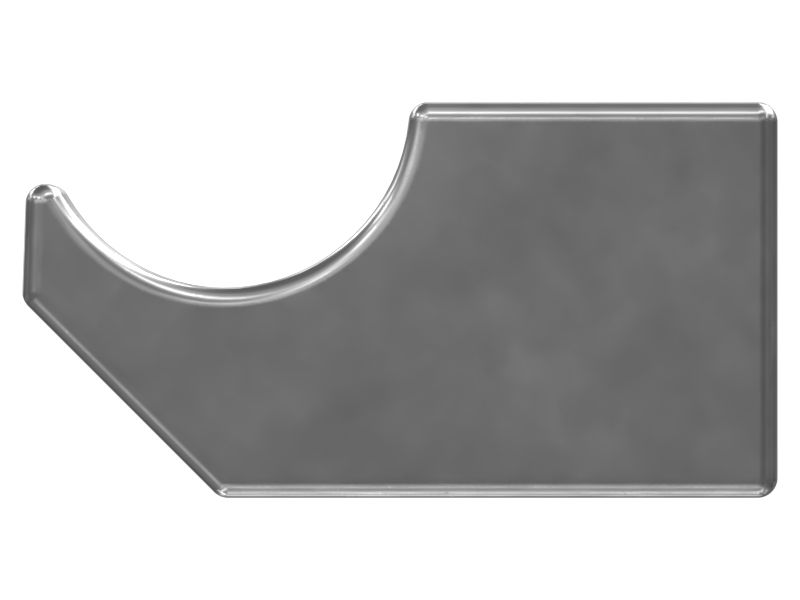

A Single Tube Half Clamp is used to attach tube onto a surface and helps to organize the tube in neat and tidy manner. They also provide protection from vibration or abrasion, making them ideal for harsh environments or heavy duty applications. Tube Clamps are typically made of plastic or metal. This Clamp provides a secured fit to tubes with the help of grommet and the other half Clamp.

Attributes:
• Provided with a tapered mounting hole with 12mm and 11mm as major and minor diameters in a taper ratio of 1:20
• Manufactured from die cast aluminum which provides high strength, corrosion resistance and heat dissipation.
• Suitable to clamp tubes with outer diameter of 18.8mm

Applications:
A Single Tube Half Clamp, along with another half clamp and grommet is used to hold or secure Tubes with support bracket or surface in a lines group.

• Fits Bolt Sizes (in): 3/8

• Fits Bolt Sizes (mm): M10

• Height (in): 0.78

• Height (mm): 20

• Inside Diameter (in): 0.74

• Inside Diameter (mm): 18.8

• Length (in): 1.49

• Length (mm): 38

• Material: Aluminum,Alloy Aluminum

• Width (in): 0.98

• Width (mm): 25
