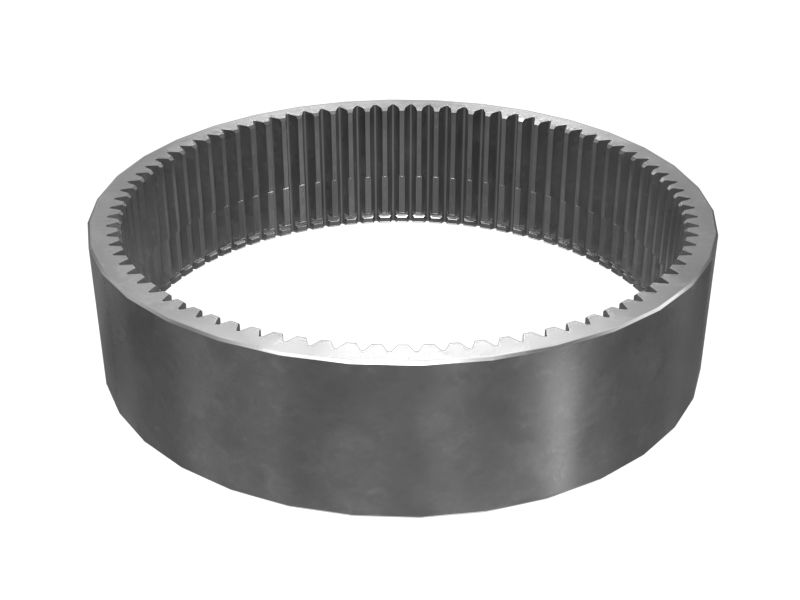

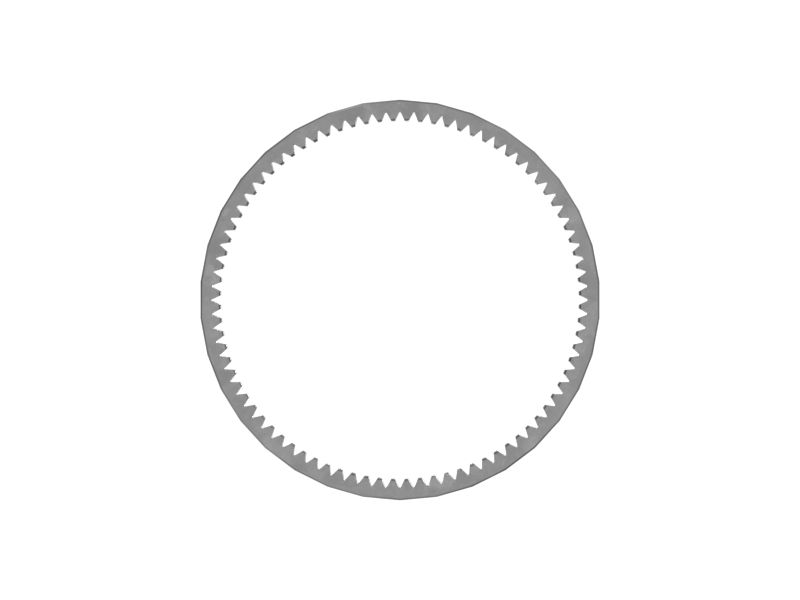

6Y-9074: ШЕСТЕРНЯ

An internal spline spur ring gear is a particular kind of gear that has teeth cut into its interior circumference that meshes with equivalent teeth on a mating component, such as a shaft or an external gear. An involute profile is used to cut the internal spline on the ring gear, allowing for a smooth and effective transfer of power. Because of the spur design, the gear teeth are straight and parallel to the axis of rotation, resulting in a straightforward and effective gear design.

Attributes:
● Pitch diameter and base diameter are 266.70mm and 250.61mm.
● The pressure angle of the gear is at 20˚.

Application:
The internal spline spur ring gear is used primarily for power transmission between two components and allows two components to move independently while still connected and transmitting power.

• Material: Low Alloy Steel
