6Y-0799: КОРПУС НАСОСА СИСТЕМЫ ОХЛАЖДЕНИЯ

Description:

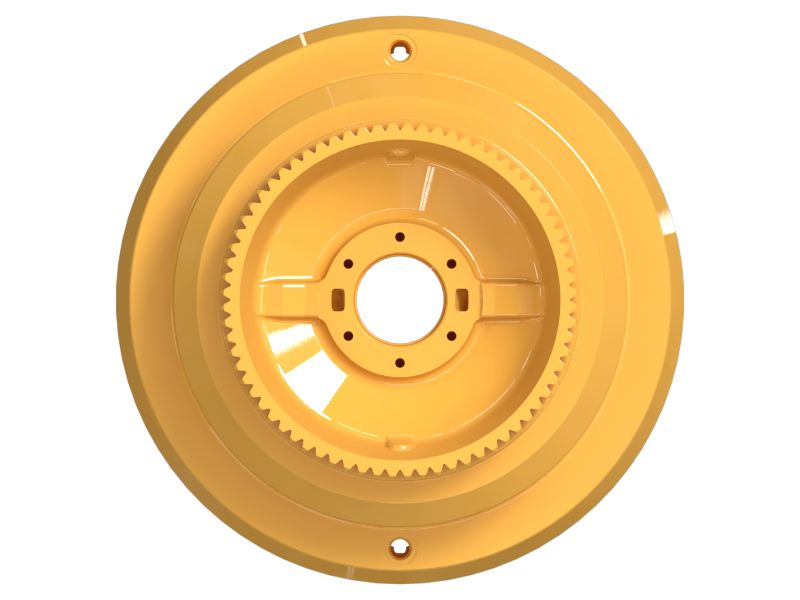

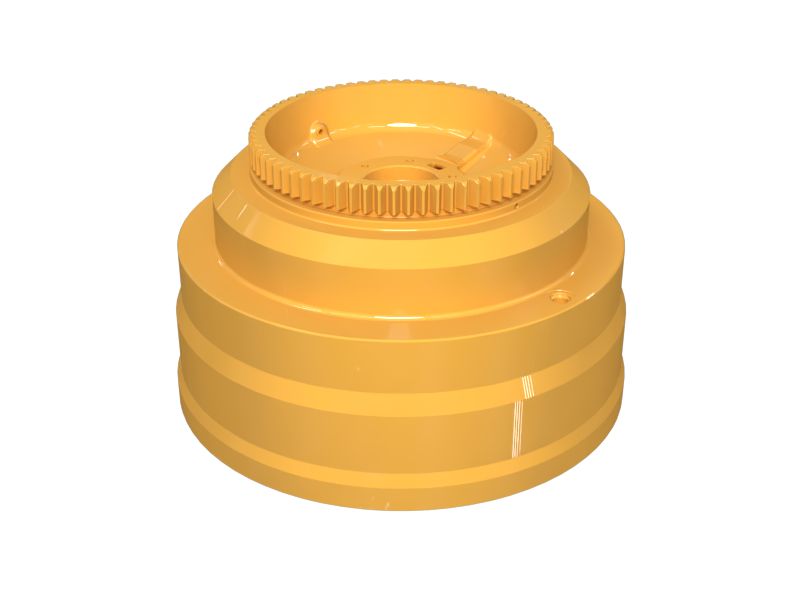

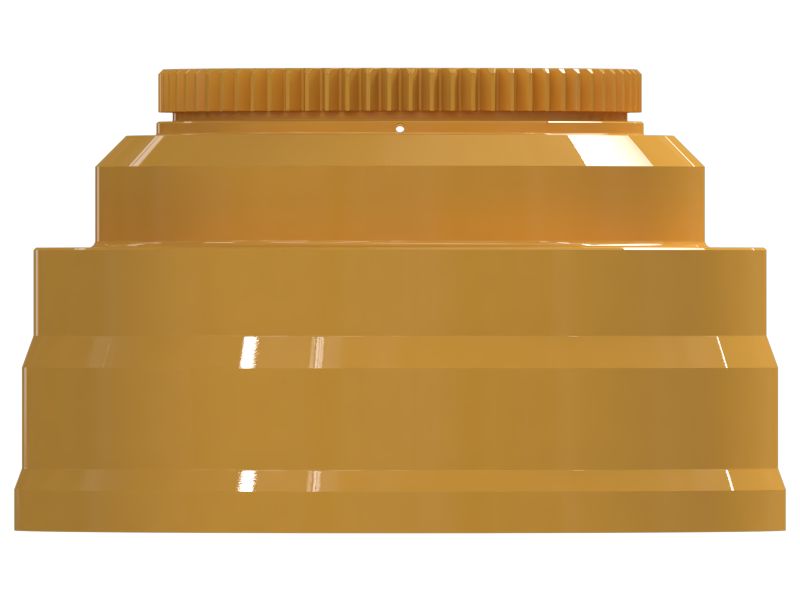

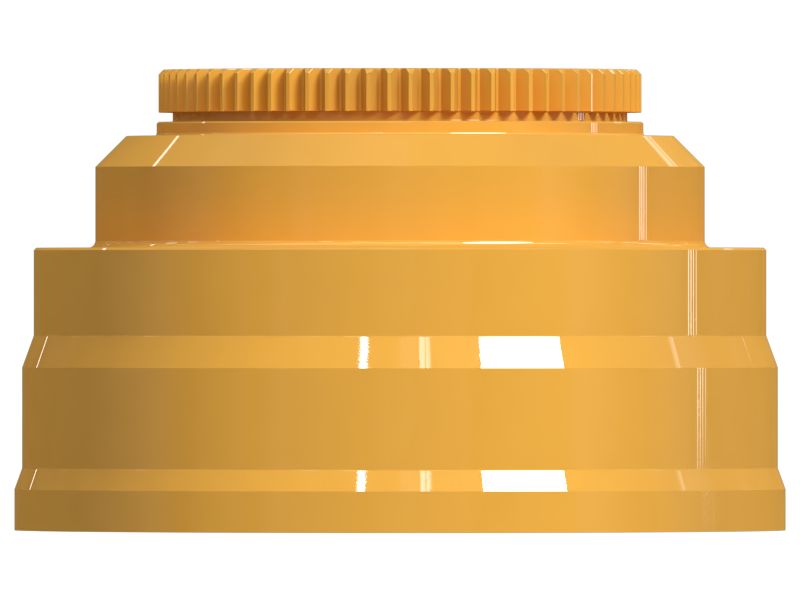

Part # 6Y-0799 provides a clutch housing for the E4008 ACB/E4012 ACB torque converter.

Cat drive train components must endure incredible torque, high impact loads, and frequent direction and gear changes. Cat designs and manufactures its transmissions and final drive components with these demands in mind. The result is a drive train that lasts longer and works harder over the life of the machine. Cat housing assemblies provide a durable housing for clutch components in the drive train system of Cat machines.

Attributes:
• Clutch housing with sleeve bearing
• Cast iron housing
• External Spur Gear Number of Teeth: 72
• Internal Spline Number of Teeth: 141
• Bearing Bore Diameter: 76.327 mm (2.969 in)
• Housing Outside Diameter: 500 mm (19.68 in)
• Width: 298.5 mm (11.75 in)

Application:
Consult your owner's manual or contact your local Cat Dealer for more information.

• Material: Cast Iron

• Inside Diameter (mm): 76.33

• Outside Diameter (mm): 500

• Width (mm): 298.5

• Inside Diameter (in): 2.97

• Outside Diameter (in): 19.68

• Width (in): 11.75
