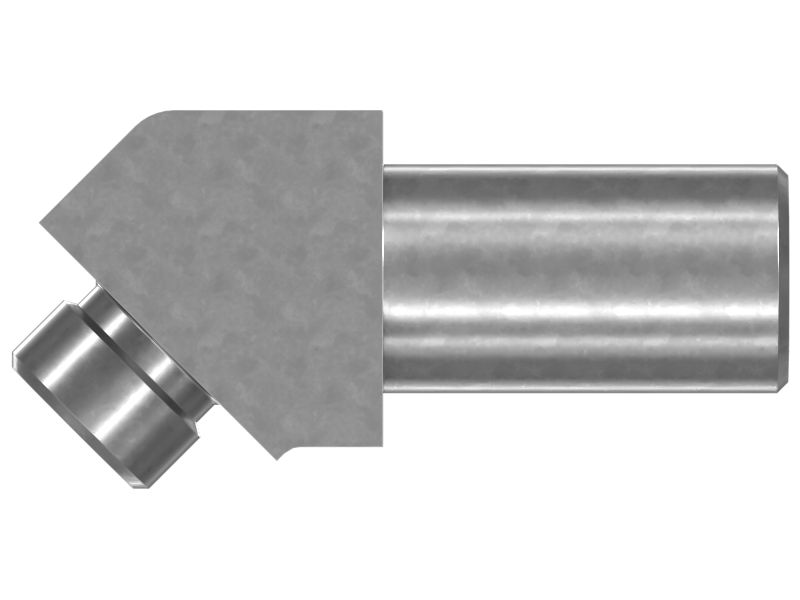

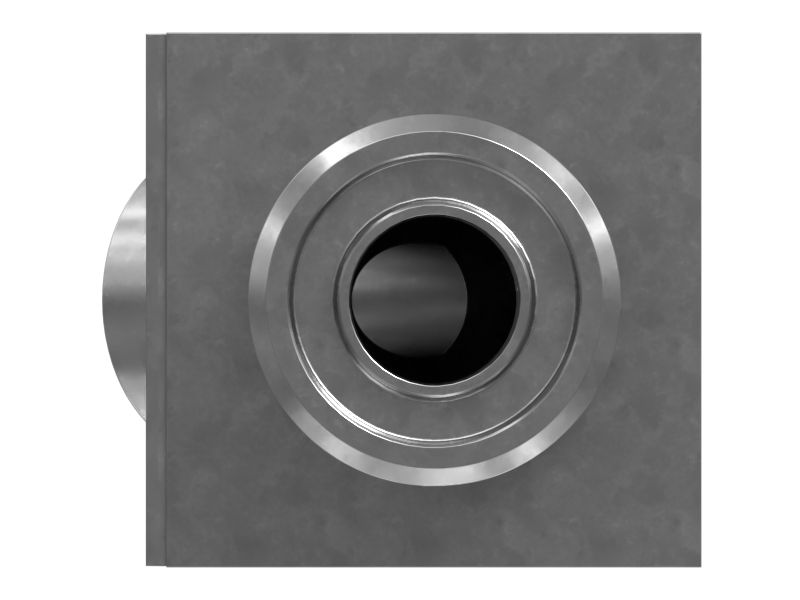

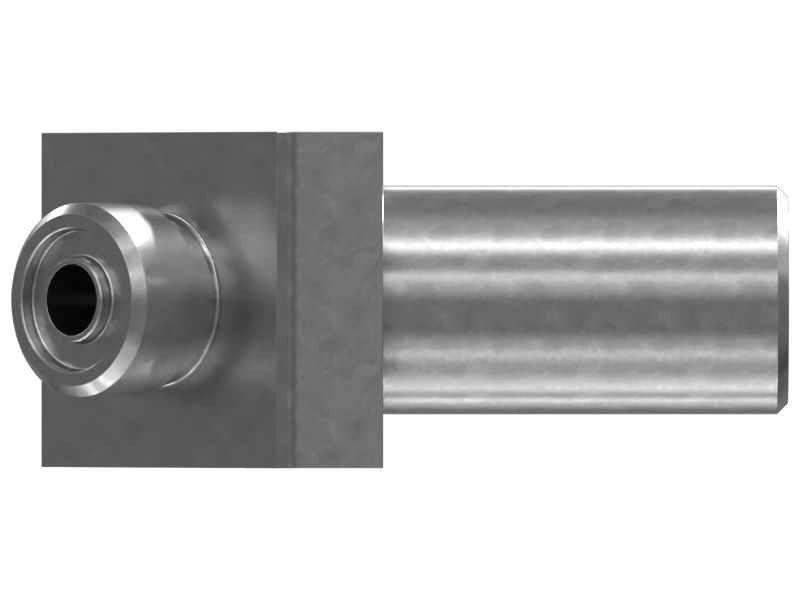

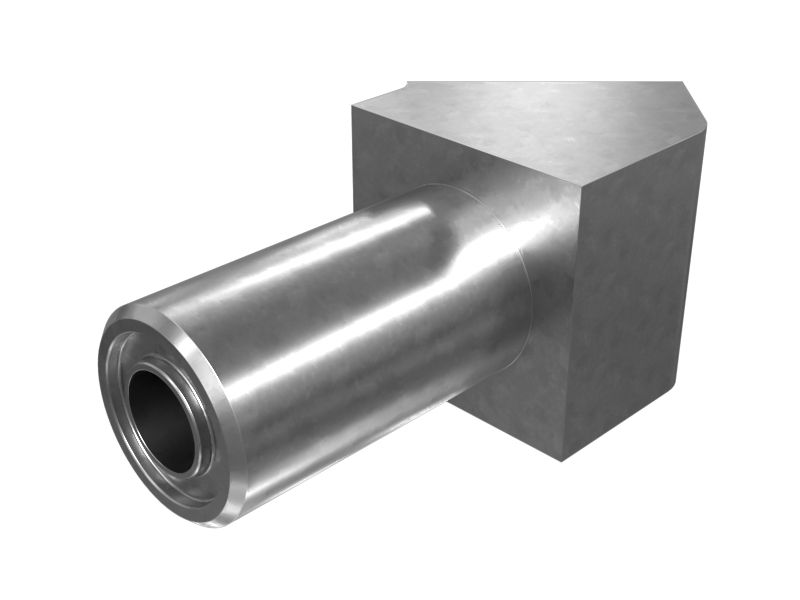

6V-9351: КОЛЕНЧАТЫЙ ПАТРУБОК

The Hydraulic Lines Elbow Adapter is designed to redirect fluid flow within the hydraulic system of equipment. It changes the direction of hydraulic lines at an accurate 45-degree angle, ensures efficient fluid routing, minimizes pressure drops, and optimizes system performance. Its leak-resistant design provides reliable fluid flow management for different operations and enhances the overall functionality and reliability of hydraulic systems in equipment.

Attributes:
• Provides a secure and leak-free connection between hydraulic lines.
• Resilient against high-pressure conditions.
• Offers accurate 45-degree angle for accurate fluid direction control.
• Smooth interior surface for efficient fluid flow.

Applications:
The Hydraulic Lines Elbow Adapter facilitates smooth fluid flow direction changes at a 45-degree angle along the draft frame, ensuring efficient operation by reducing flow restrictions and pressure losses.

• Coolant and Urea Compatible Seal: 180-8424 (13/16-16), 6D-7128 (11/16-16)

• Oil and Fuel Compatible Seal: 228-7089 (11/16-16), 228-7090 (13/16-16)

• Transmission and Hydraulic Oil Compatibile Seal: 6V-8397 (11/16-16), 6V-8398 (13/16-16)

• Material: Carbon Steel
