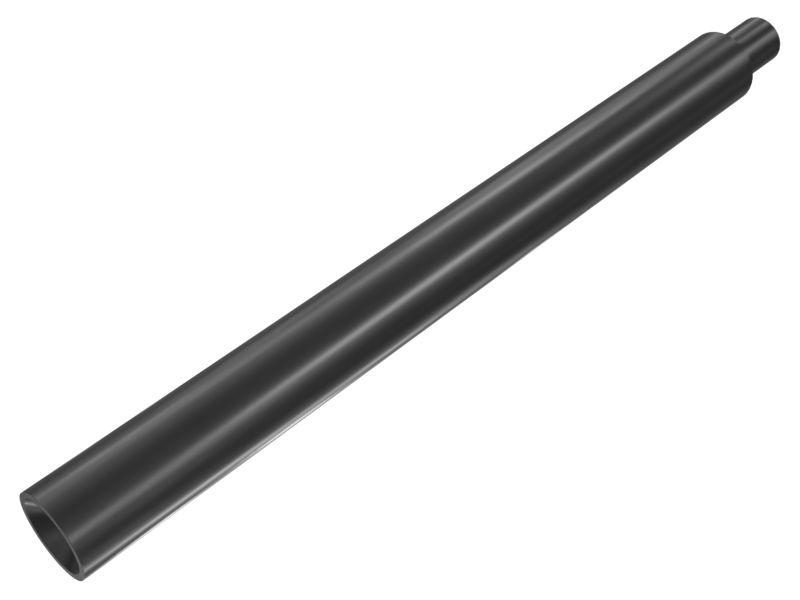

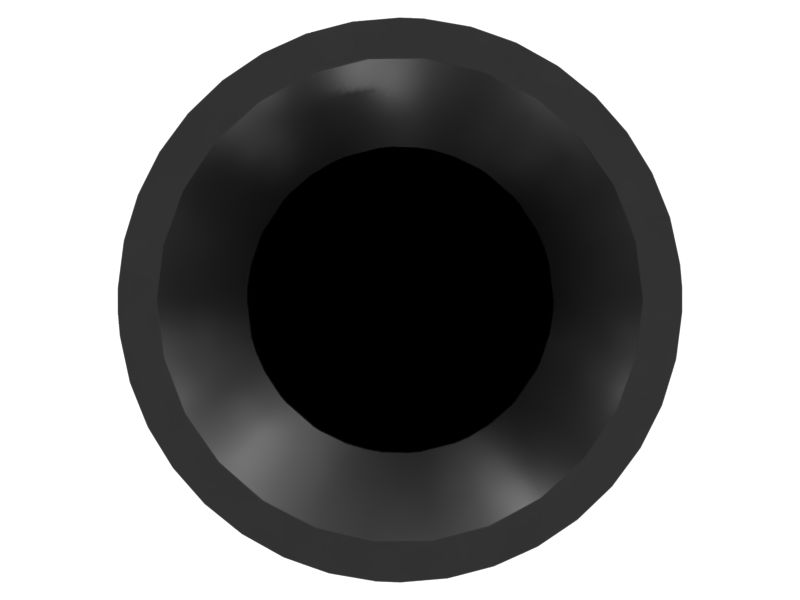

6V-3138: Photohead Extension

The Photohead Extension is used to measure engine speed at the flywheel housing. This tool provides a non-contact method of measuring engine speed by detecting the rotation of the flywheel or other rotating components using optical sensors. The photohead extension includes an optical sensor that uses light beams to detect the rotation of the flywheel or other rotating components.

Attributes:
• Allows for non-contact measurement of engine speed, eliminating the need for physical contact with the rotating component
• Mounted near the flywheel housing or other rotating components to capture the rotational movement and provide speed reading

Applications:
The Photohead Extension is used to provide accurate and reliable measurements of engine speed, ensuring precise monitoring of the rotational speed of the engine.

• Material: Steel,Coating Mixed

• Thread: 1/4" - 20 - 2A, 1/4" - 20 - 2B

• Length (mm): 112

• Length (in): 4.409

• Outer Diameter (mm): 9.53

• Outer Diameter (in): 0.375

• Weight (kg): 0.055

• Weight (lb): 0.121
