6P-8264: КОЛЬЦО

Description:

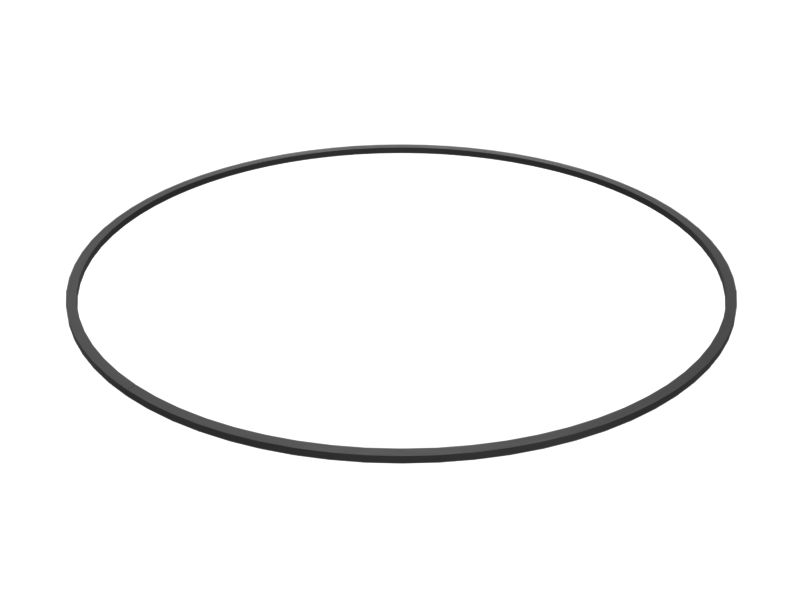

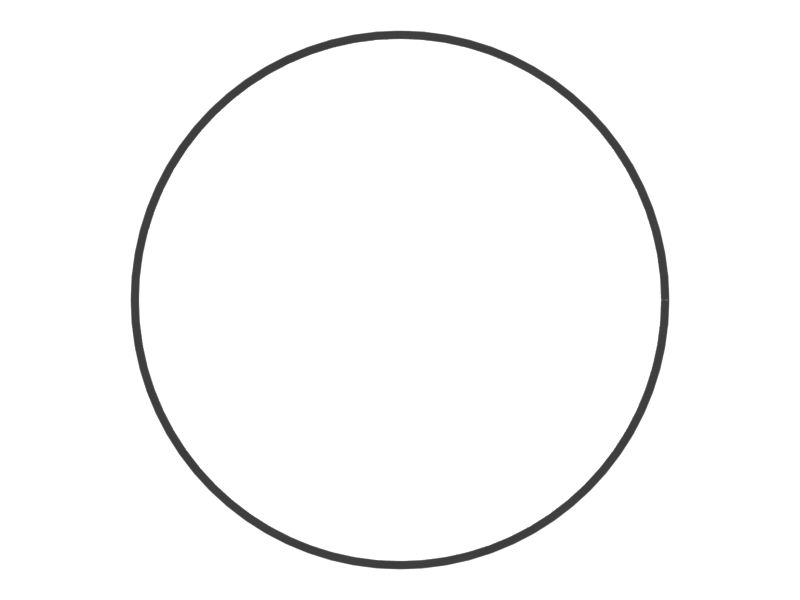

The Seal Ring is designed to fit tightly against the transmission housing and the planetary gear carrier, creating a seal that prevents fluid from escaping. The ring is typically circular in shape, with a flat surface on one side that contacts the transmission housing and a curved surface on the other side that contacts the planetary gear carrier.

Attributes:
● Machined precisely to the correct dimensions and tolerances to give improved durability
● Ensures smooth and proper transmission of energy

Applications:
The Seal Ring is used to seal the clearance between the mating parts, this is mostly used in Cat 120, 12F, 140, and 14E Motor Grader, 571F, 571G, 572F and 572G Pipelayer, 977K, 977K, 977L and 977L Track Loader, D4D, D6C, D6D, D6E, D6E, D6G, D6G, D7F and D7G Track Type Tractor, TR35 Powertrain.

• Axial Thickness (mm): 3.91

• Inner Diameter (in): 14.09

• Inner Diameter (mm): 357.76

• Outer Diameter (in): 14.52

• Outer Diameter (mm): 368.68

• Radial Thickness (mm): 5.46

• Material: Gray (Flake) Iron
