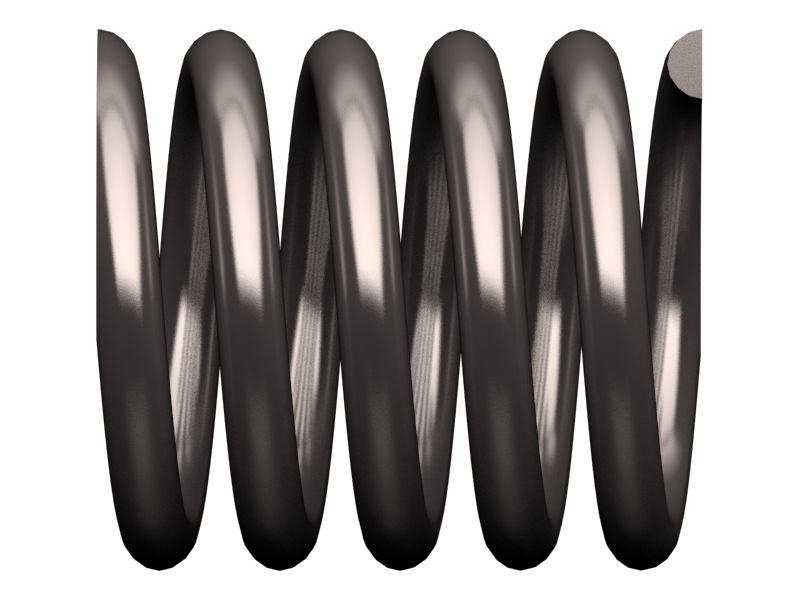

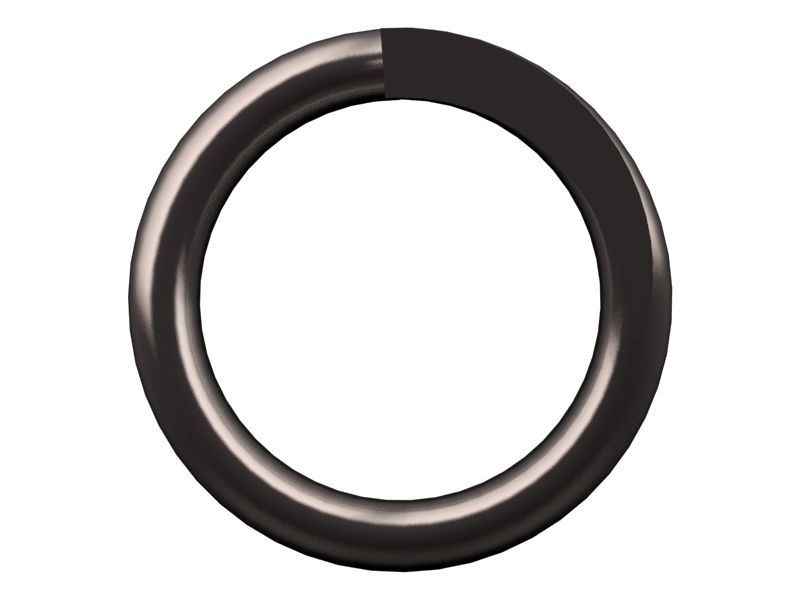

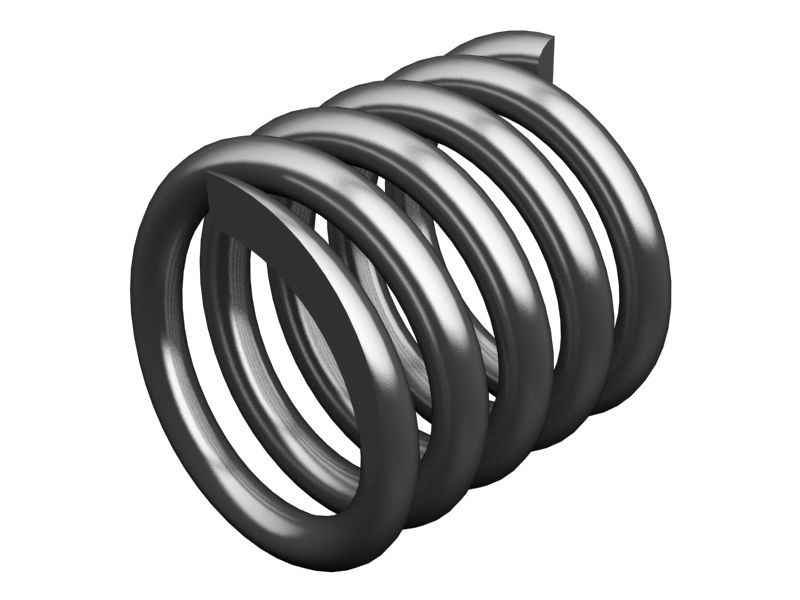

6N-0024: ПРУЖИНА

Description:
A Compression Spring is used in fuel injectors to provide to open and close the injector valve. The compression spring is typically located inside the injector body and is compressed when the injector is in the closed position. As the spring compresses, it stores potential energy that is released when the injector is activated. This energy is then used to open the injector valve and allow fuel to be injected into the engine.

Attributes:
• Manufactured to precise specifications and are built for durability and reliability
• Solid length of the spring is 7.92
• Provided With Right-hand wound helical coil helps to maintain their shape and stability
• Provided with Square Ends because they provide a secure and stable for the spring to sit on a device or an assembly and Ground with 290°

Applications:
A Compression Spring is used in Fuel Injector to withstand high pressures and temperatures associated with injector operation, this is widely used in Cat 16G Motor Grader, 245 Excavators, 3406, 3406B, 3406C, 3408, 3408B, 3408, 3408B, 3408C, 3412 and 3412, 3412C Engine (Piston), 3406, 3408, 3408B, 3408C, 3412, 3412C and 3412C Generator Set, 589 and 591 Pipelayer, 621B, 623B, 627B, 631C, 631D, 631E, 631F, 633D, 633E, 637D, 637E, 637F, 639D, 639E, 651E and 657E Wheel Tractor Scrapers, 621B, 631E, 637E, 657E and 657F Scraper, 768C, 769C, 771C, 772B, 773B, and 775B Truck, 824C and 834B Wheel Type Tractor, 825C, 826C and 836 Compactor, 980C, 988B, 992C and 992D Wheel Loader, 983B Track Loader, D10N, D8L, D9L and D9N Track Type Tractor, D44, and D550 Articulated Truck.

• Inner Diameter (in): 0.34

• Inner Diameter (mm): 8.68

• Length (in): 0.51

• Length (mm): 13.03

• Outer Diameter (mm): 11.68

• Outside Diameter (in): 0.46

• Spring Type: Compression

• Wire Size (in): 0.06

• Wire Size (mm): 1.5

• Material: Carbon Steel
