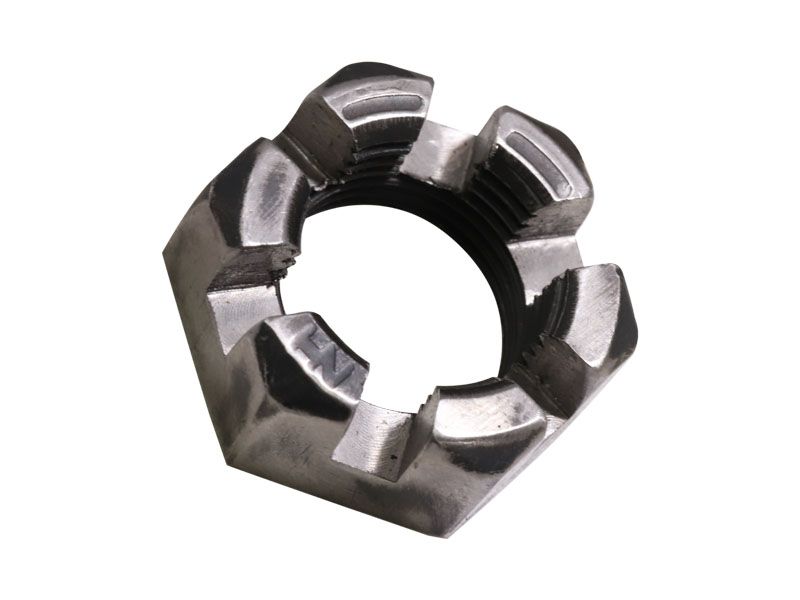

6F-7063: ГАЙКА

A Slotted Hexagonal Nut is a type of fastener provided with slot cuts on the end of the nut, which allows for the use of a cotter pin or safety wire to prevent the nut from loosening due to vibration or other stresses during operation. It is made from high-strength steel material to withstand harsh working conditions encountered during the operation. The hexagonal design allows for easy fitting and removal using a wrench or socket, providing a convenient and secure means of tightening or loosening the nut.

Attributes:
• Provided with a slot width of 4.57mm to accommodate a cotter pin
• Hexagonal design allows for greater torque capacity and improved load distribution

Applications:
A Slotted Hexagonal Nut is used to provide a secure and reliable connection between two parts, helps prevent loosening or disassembly of the joint due to vibrations, movement, or external forces, and ensures stability and security in mechanical assemblies.

• Nut Type: Hex

• Thread Size (in - TPI) (in): 3/4-16

• Thread Size (dia x pitch) (mm): 3/4x16

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Hand of Thread: RH

• Material: Carbon Steel
