6F-7043: ГАЙКА

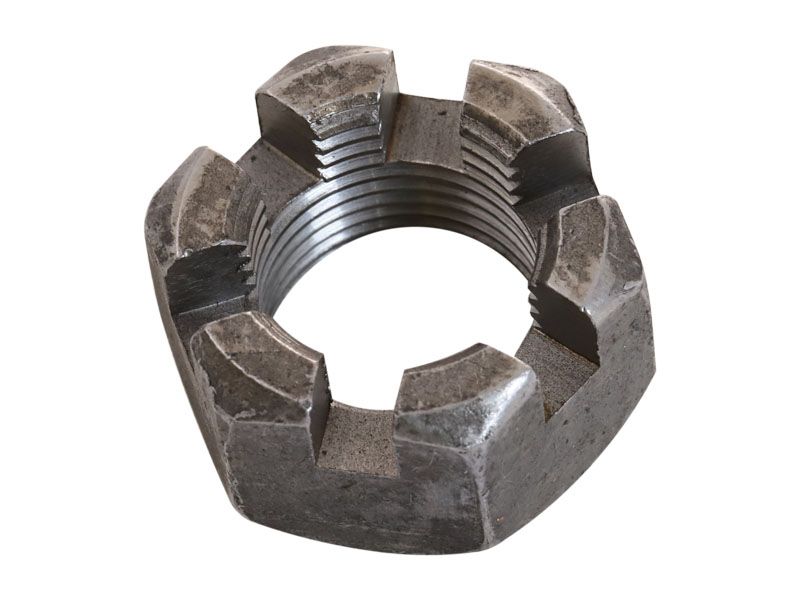

A Slotted Hexagonal Nut is a type of fastener designed with slot cuts on the end of the nut. It is typically made from strong and durable material like steel with a hexagonal shape and provides a secure grip between the components inside the axle assembly.

Attributes:
Provided with a slot width of 0.18 inches to accommodate a cotter pin.
Has high strength and ductility.

Applications:
A Slotted Hexagonal Nut is threaded onto the bolt or rod and tightened to secure two components together, mostly used in Cat® Auto Patrol - Direct Drive, Diesel, Elevating Grader - Power Controlled, Elevating Grader - Power Controlled, Gas Engine (Piston), Pipelayer, Track Type Tractor, Wheel Tractor Scrapers, Scraper, Truck, Wheel Type Tractor (For Dozer), Wheel Loader, Bulldozer, Wheel Tractor - Direct Drive, Goer, Cargo - Tanker, Power Shift.

• Hex Size (in): 1.13

• Hex Size (mm): 28.57

• Nut Type: Hex

• Material: Steel,Carbon Steel

• Thread Size (in - TPI) (in): 3/4-16

• Thread: 3/4-16

• Weight (kg): 0.05

• Weight (lb): 0.12

• Thread Size (dia x pitch) (mm): 3/4x16

• Class or Grade: SAE J995 Grade 5 (120 ksi)

• Hand of Thread: RH
