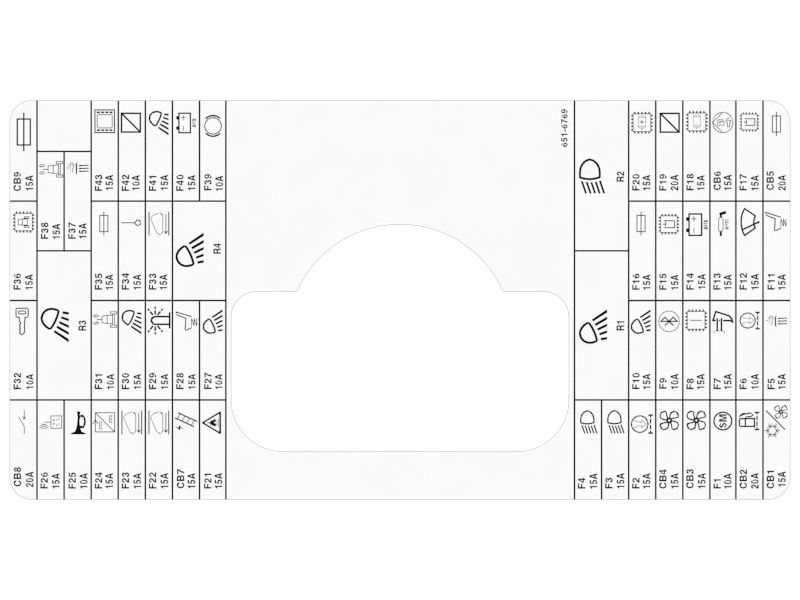

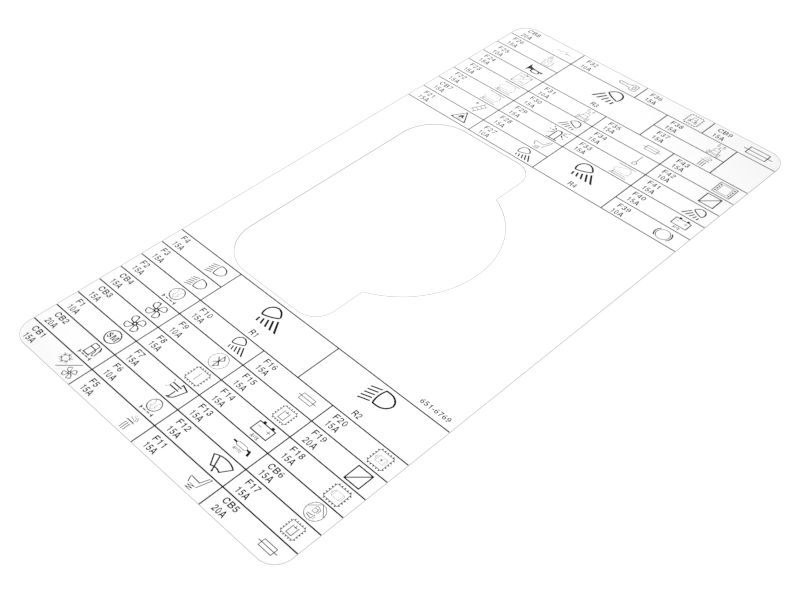

651-6769: Fuse Panel Identification Film

The Counter Weight Support Plate maintains the balance and structural integrity of the equipment. It is positioned to counterbalance, which helps stabilize the equipment during operation. By supporting the counterweights, this plate ensures that the equipment does not tip and becomes unstable under varying load conditions. The part absorbs and distributes the forces exerted by the counterweights, preventing stress concentrations that could otherwise lead to mechanical failures, the Counter Weight Support Plate aids in improving the maneuverability and safety of the equipment by maintaining an optimal weight distribution, allowing for smooth operation even in challenging environment.

Attributes:
• Enhances the stability of the equipment by properly supporting counterweights.
• Ensures even distribution of weight to maintain stability.
• Ensures secure mounting of counterweights to prevent movement.

Applications:
The Counter Weight Support Plate is located at the rear or side of the equipment, used to support and balance the counterweights, it ensures the equipment remains stable during operation.

• Film Width (in): 3.62

• Film Width (mm): 92

• Length (in): 7.09

• Length (mm): 180

• Thickness (in): 0.01

• Thickness (mm): 0.25

• Weight (kg): 0.07

• Weight (lb): 0.15

• Material: Polycarbonate Plastic
