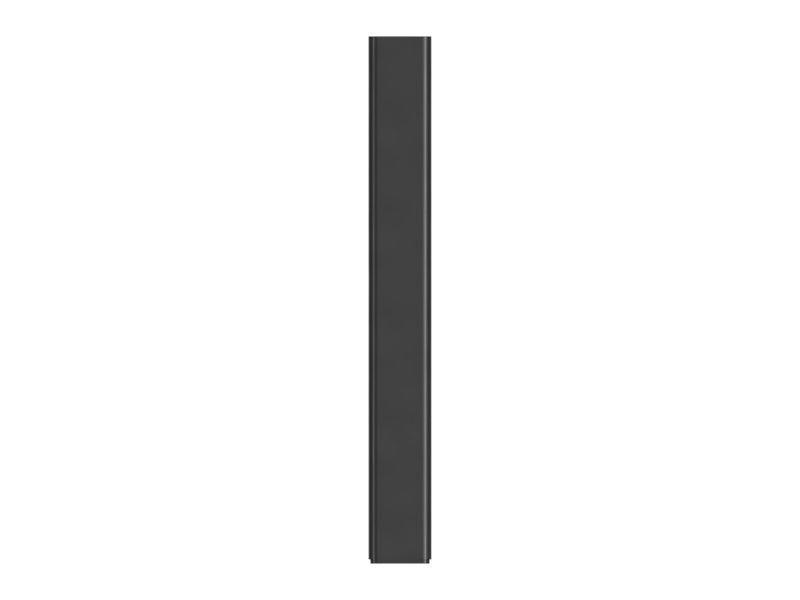

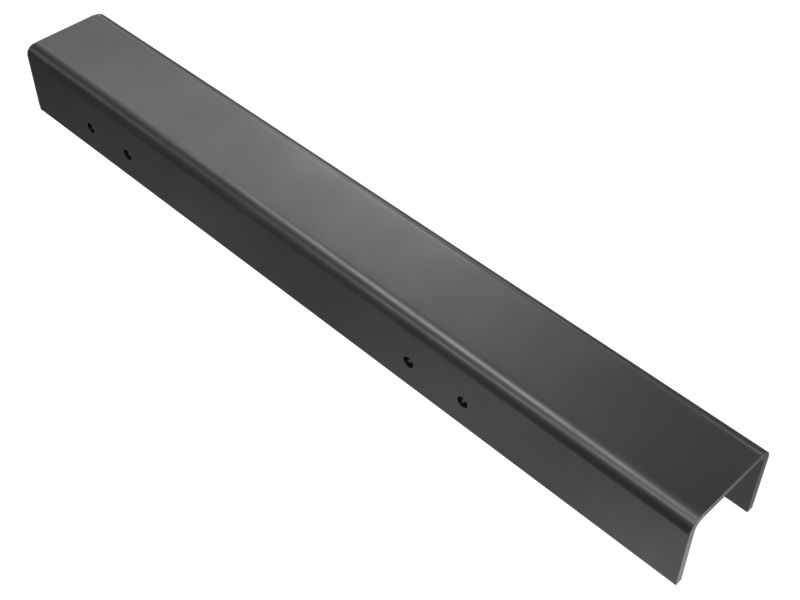

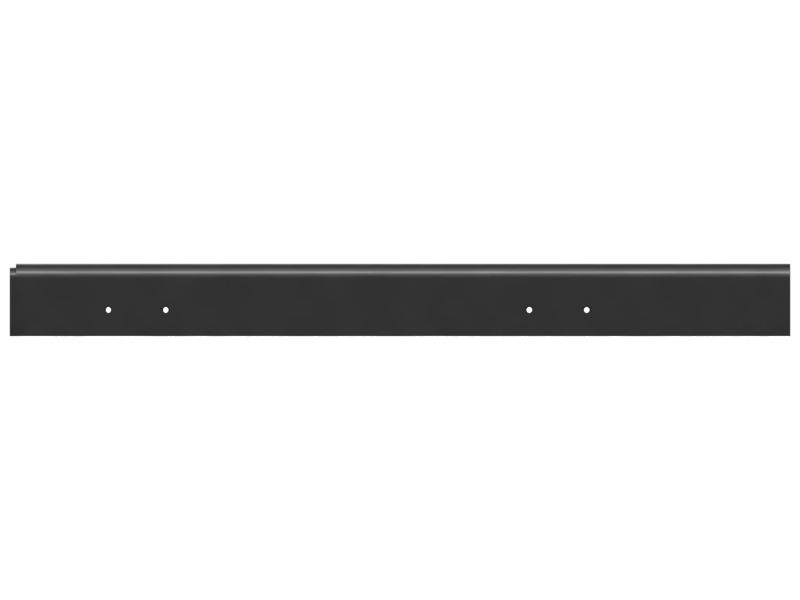

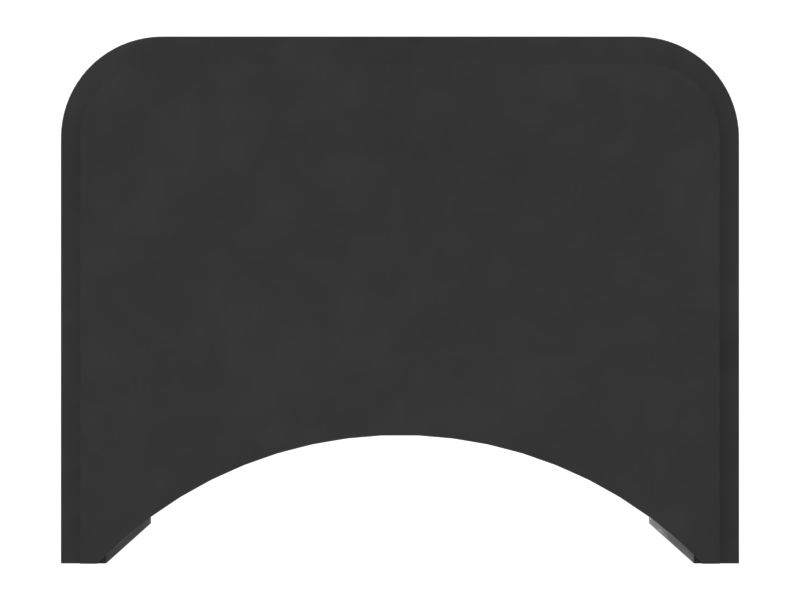

651-0225: Lift Cylinder Guard Cover

The Bucket Cylinder Piston is a component within the hydraulic cylinder assembly used in equipment. It operates by converting the hydraulic fluid's pressure into linear motion, enabling the extension and retraction of the hydraulic cylinder. The piston is located inside the cylinder and divides the cylinder into two chambers. When hydraulic fluid is directed into one chamber, it forces the piston to move, pushing or pulling the rod, which in turn moves the bucket. This allows the equipment to perform different tasks.

Attributes:
• Capable of operating under high hydraulic pressure.
• Withstands high compressive loads during operations.
• Slides within the cylinder without wobbling, providing controlled, guided motion.

Applications:
The Bucket Cylinder Piston is located inside the bucket hydraulic cylinder, and moves within the cylinder as hydraulic fluid flows, generating the force needed to control the bucket's movement.

• Hole Size (in): 0.54

• Hole Size (mm): 13.8

• Material: Steel,Alloy Steel,Alloy Mixed

• Overall Height (in): 3.7

• Overall Height (mm): 94

• Overall Length (in): 39.76

• Overall Length (mm): 1010

• Overall Width (in): 4.76

• Overall Width (mm): 121

• Thickness (in): 0.31

• Thickness (mm): 8

• Thread: M10x1.5

• Weight (kg): 18.42

• Weight (lb): 40.61
