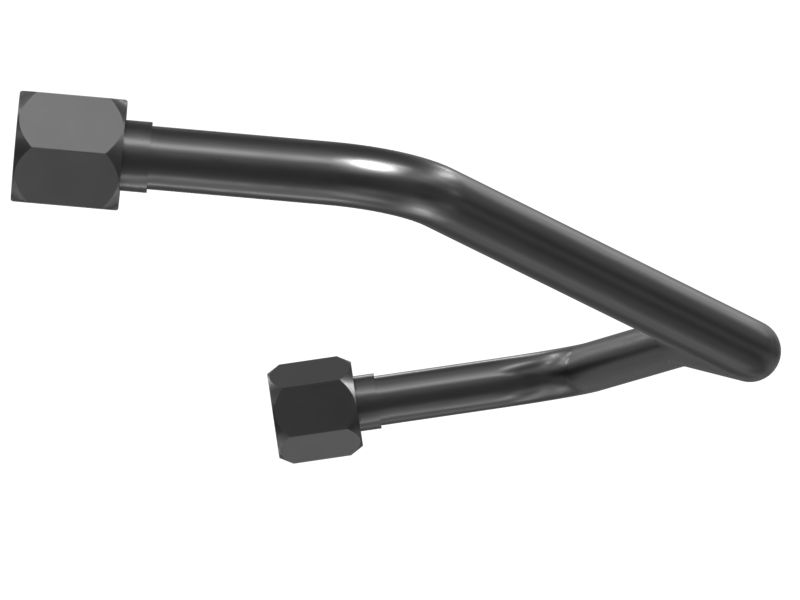

649-4993: Aftercooler Water Tube Assembly

An Aftercooler Water Tube Assembly is used in the aftercooler water lines to help regulate the temperature of the engine by circulating water throughout the unit. The water tube assembly consists of a bulk tube, 37 degrees flared sleeves, and nuts that connect the aftercooler elbow to the tee assembly, allowing coolant to flow through it. It is attached to the aftercooler core assembly to conduct water within the aftercooler water lines, effectively dissipating heat generated by the engine. These tubes are often bent and routed to fit within the available space and provide an efficient flow of water.

Attributes:
• Withstands a working pressure of 1000 kPa and a minimum burst pressure of 4000 kPa without deforming or breaking
• Provided with 37 degrees flared sleeves and nuts to create a tight and reliable seal between the tube assembly and the elbows, ensuring a leak-free connection

Applications:
An Aftercooler Water Tube Assembly serves as a conduit for the flow of water and connects with an elbow and tee fitting, allowing for the direction of water flow in the aftercooler water lines without any leaks for regulating the water temperature and preventing overheating of the engine.

• Outer Diameter (mm): 12.7

• Outer Diameter (in): 0.5

• Inner Diameter (mm): 10.92

• Inner Diameter (in): 0.43

• Length (mm): 1920

• Length (in): 75.59

• Radial Thickness (mm): 0.89

• Weight (kg): 0.574

• Weight (lb): 1.265

• Material: Carbon Steel
