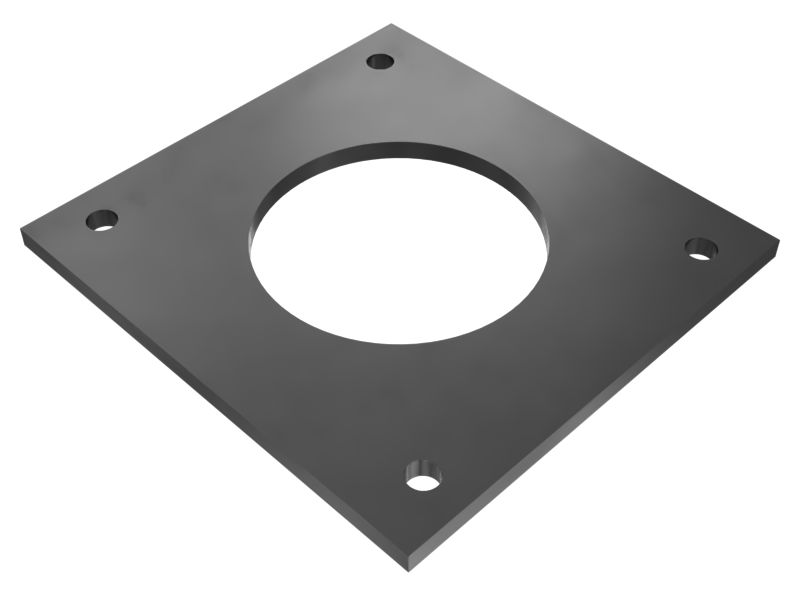

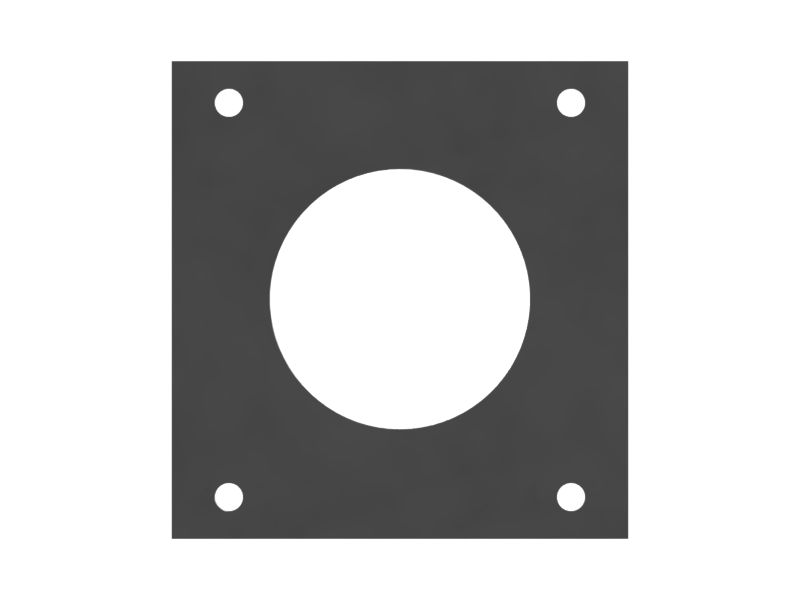

648-1969: Exhaust Bellows Plate

The Exhaust Bellows Plate is situated within the exhaust group of the machine. Its role is to maintain optimal compression on the bellows assembly. This compression creates a tighter seal between the plate, located on the dump body, and the bellows assembly itself. This tight seal is for proper exhaust flow and system performance. It is made up of strong and durable material, such as steel, to ensure strength and withstand high operating conditions.

Attributes:
• Has high strength and wear resistance
• Optimal compression of the bellows assembly by the plate contributes to efficient exhaust flow

Applications:
The Exhaust Bellows Plate functions within the exhaust system to ensure proper compression of the bellows assembly and enhance its sealing contact with the dump body.

• Material: Steel,Structural Steel

• Length (mm): 280

• Length (in): 11.023

• Width (mm): 293

• Width (in): 11.535

• Diameter (mm): 160

• Diameter (in): 6.3

• Hole Size (mm): 17.5

• Hole Size (in): 0.688

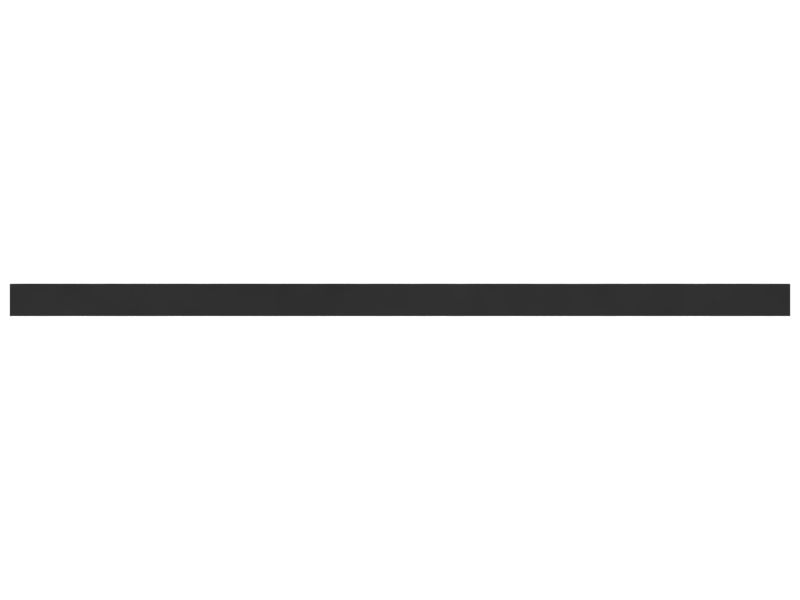

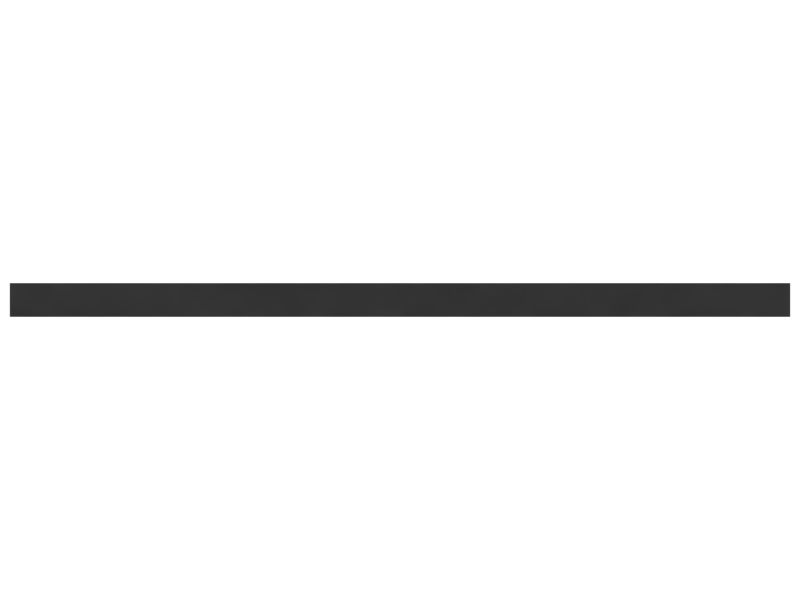

• Thickness (mm): 12

• Thickness (in): 0.472

• Weight (kg): 5.736

• Weight (lb): 12.645
