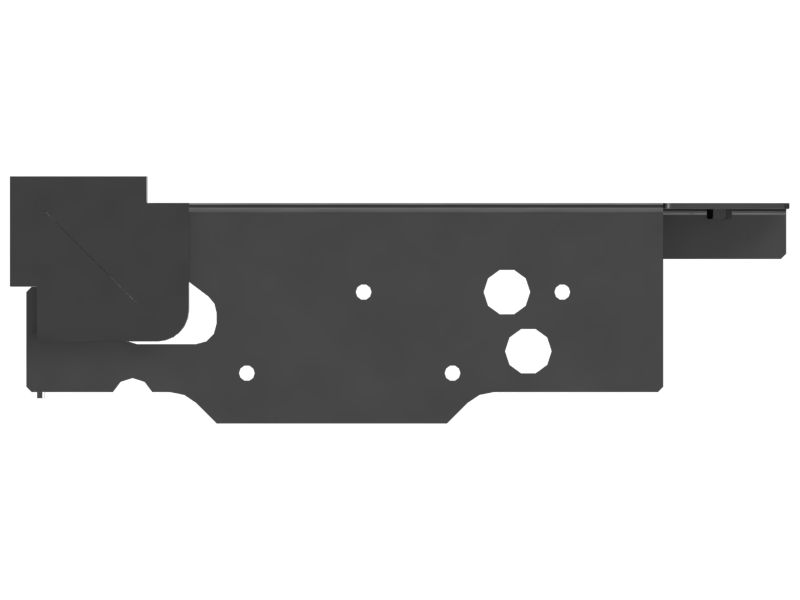

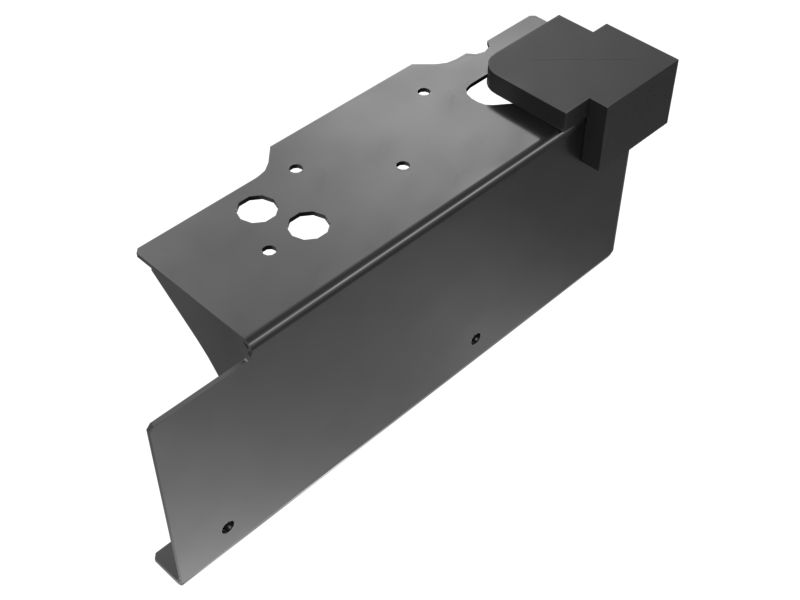

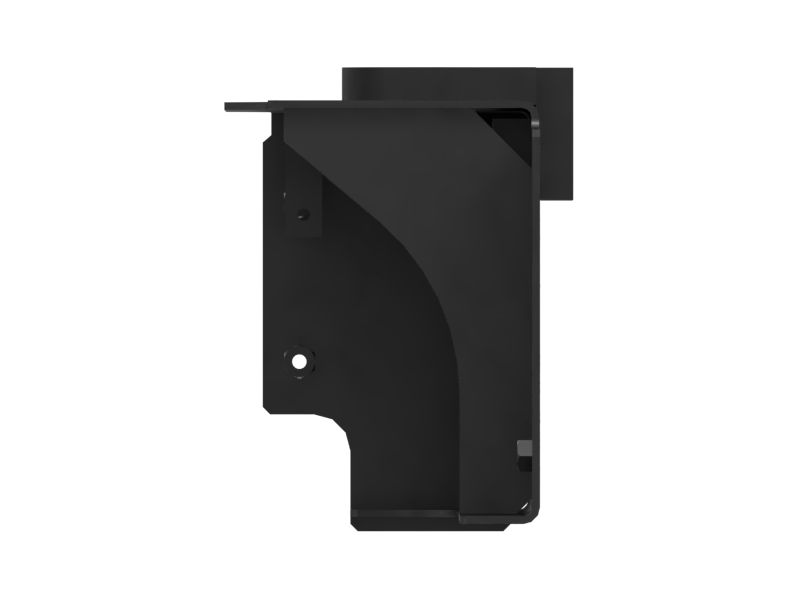

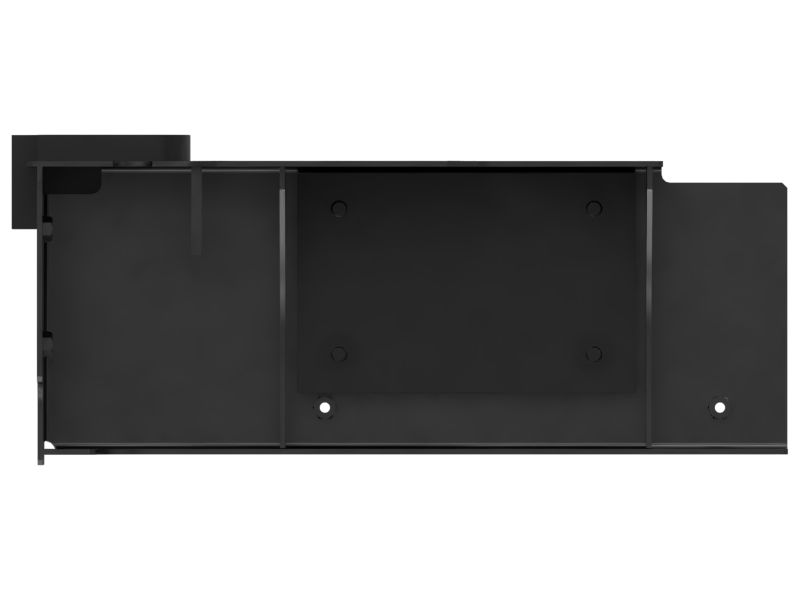

647-5198: Exhaust Support Sheet

The Radiator Inlet Pipe is used in the engine's cooling system, responsible for directing coolant from the engine to the radiator by transferring coolant, this pipe manages the engine's temperature, ensuring it operates within the optimal range. The pipe withstands high temperatures and pressures, given the demanding conditions of equipment operations. It maintains engine efficiency by ensuring that excess heat is effectively discharged through the radiator. This pipe accommodates the thermal expansion and contraction experienced during operation.

Attributes:
• Provides secure and leak-proof connections.
• Resilience to vibration and pressure fluctuations.
• Maintains structural integrity under varying temperatures.
• Provided with a smooth inner surface for optimal flow.

Applications:
The Radiator Inlet Pipe is used in the cooling system to channel coolant from the engine to the radiator. It is located between the engine and the radiator, facilitating effective engine temperature regulation.

• Overall Height (in): 12.46

• Overall Height (mm): 316.4

• Overall Length (in): 29.33

• Overall Length (mm): 745.1

• Overall Width (in): 9.29

• Overall Width (mm): 235.9

• Weight (kg): 16.59

• Weight (lb): 36.57
