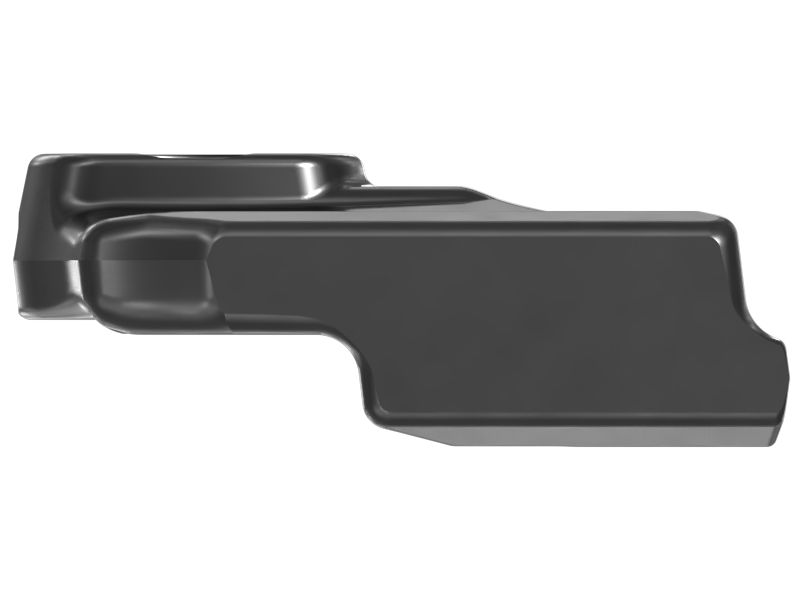

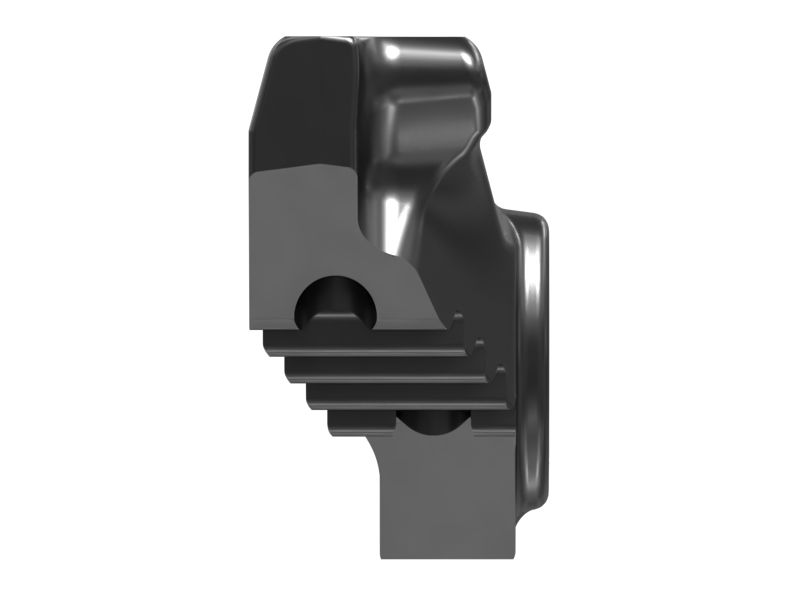

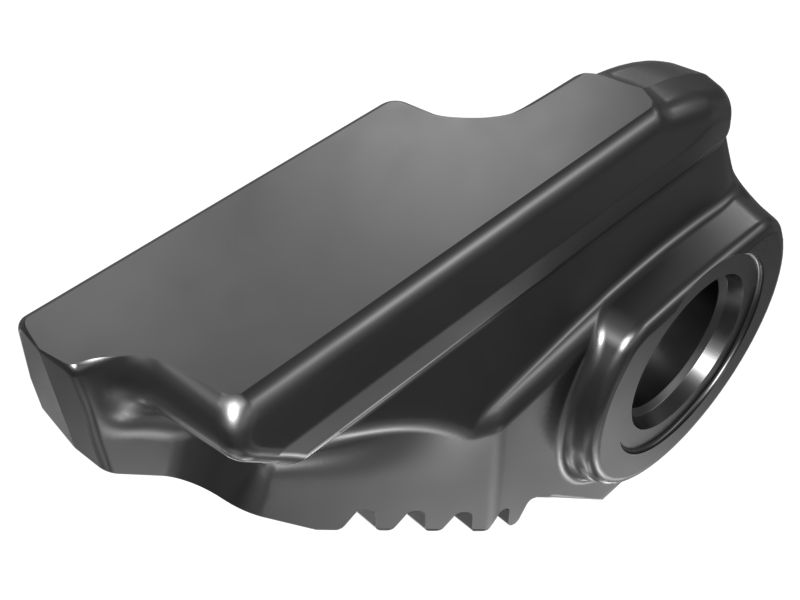

647-5006: Track Pin End Split Master Link

The Mast Guide Plate is an integral component within the mast assembly of the equipment, offering necessary reinforcement to the structure. It ensures that the mast remains stable and aligned during operations. This plate fits within the assembly, helping to distribute the load and absorb stress, thus preventing misalignment or potential damage. During the operation, the guide plate works effectively, maintaining the integrity of the mast structure, enabling smooth vertical movements, and supporting the overall functionality of the equipment.

Attributes:
• Capable of handling high pressure and loads.
• Enhances the stability of the mast during vertical movements.
• Resistant to deformation under high loads.

Applications:
The Mast Guide Plate is located within the mast assembly, providing structural reinforcement, and ensuring the stability and alignment of the mast during operations.

• Material: Steel,Boron Steel

• Weight (kg): 7.94

• Weight (lb): 17.51

• Wear Sensor: No

• Master Bolt Thread: 0.875

• Master Link Type: See Drawing
