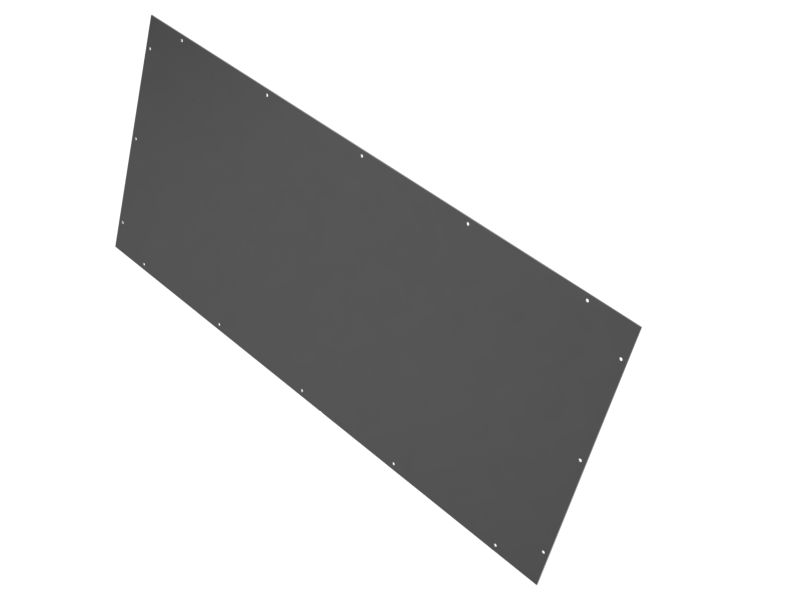

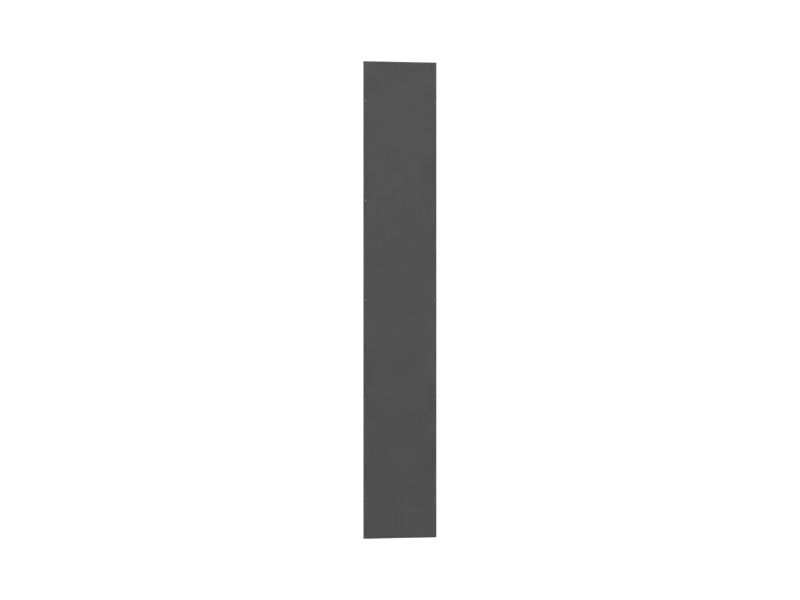

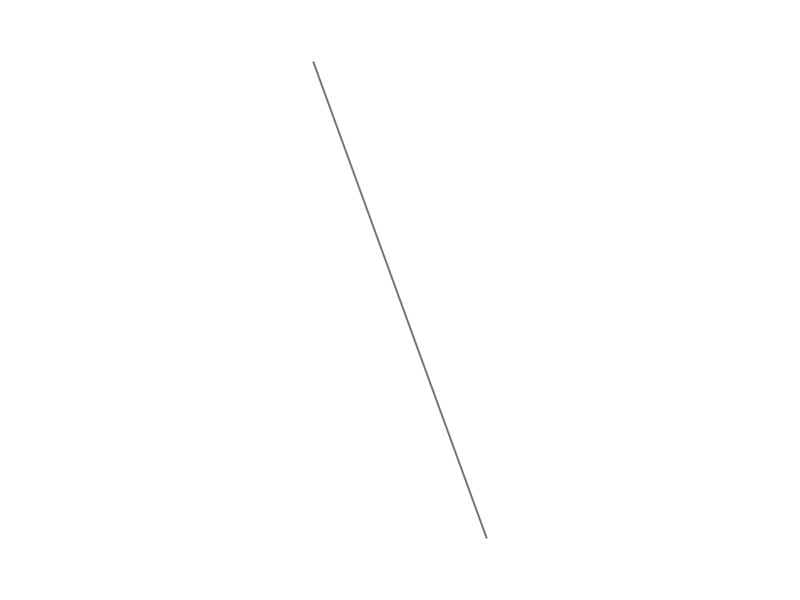

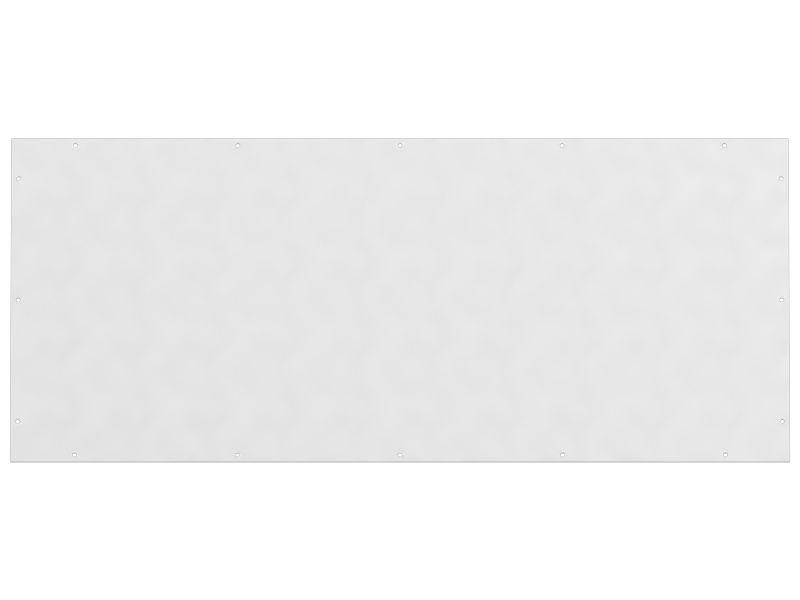

646-6715: Cabinet Door Support Plate

The Dowel Pin provides accurate alignment and positioning of mating parts. It is designed to fit snugly into pre-drilled holes in two adjacent components, such as engine blocks, transmission casings, and tool fixtures. Once inserted, the dowel pin serves as a fixed reference point, preventing any relative movement between the components. This ensures accurate alignment and assembly and maintains the desired position during operation, contributing to the overall performance and longevity of the assembly.

Attributes:
• Provides proper alignment of components.
• Ensures stability and prevents movement between parts.
• Resistant to wear and deformation.

Applications:
The Dowel Pin is positioned within the single flange roller assembly in a cylindrical alignment inserted into pre-drilled holes in mating components to ensure accurate positioning and alignment during assembly and operation.

• Hole Size (in): 0.24

• Hole Size (mm): 6

• Length (in): 41.5

• Length (mm): 1054

• Thickness (in): 0.06

• Thickness (mm): 1.5

• Weight (kg): 5.78

• Weight (lb): 12.74

• Width (in): 18.35

• Width (mm): 466

• Material: Carbon Steel
