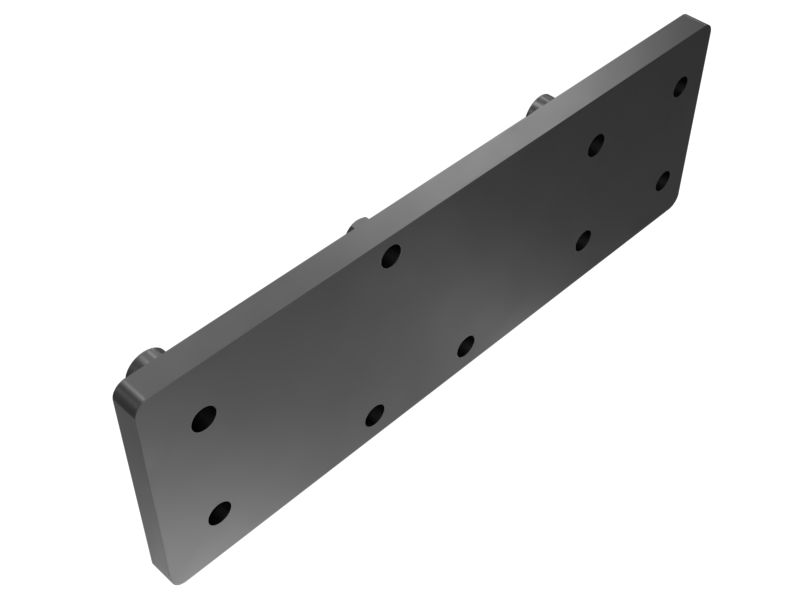

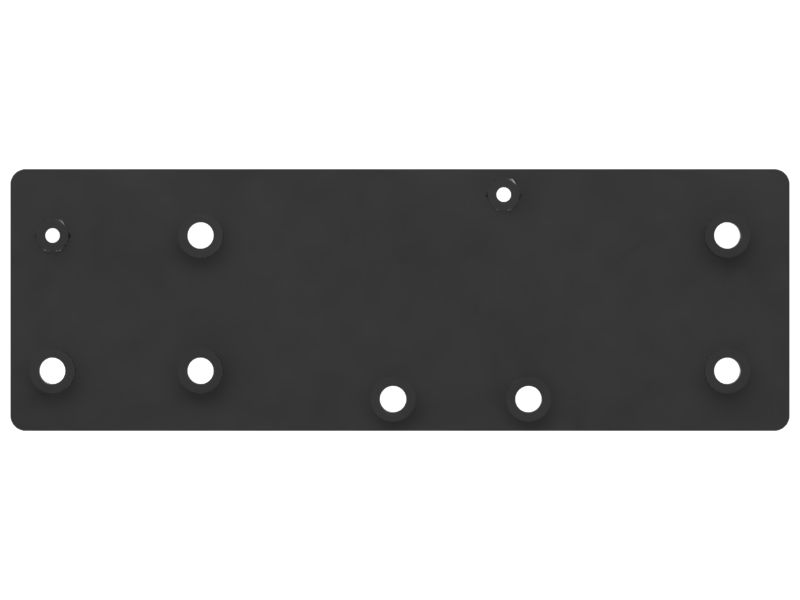

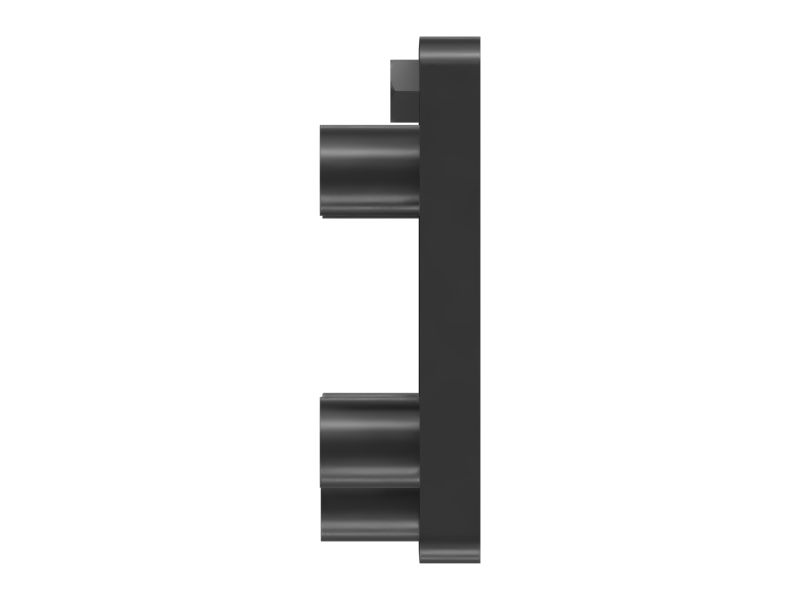

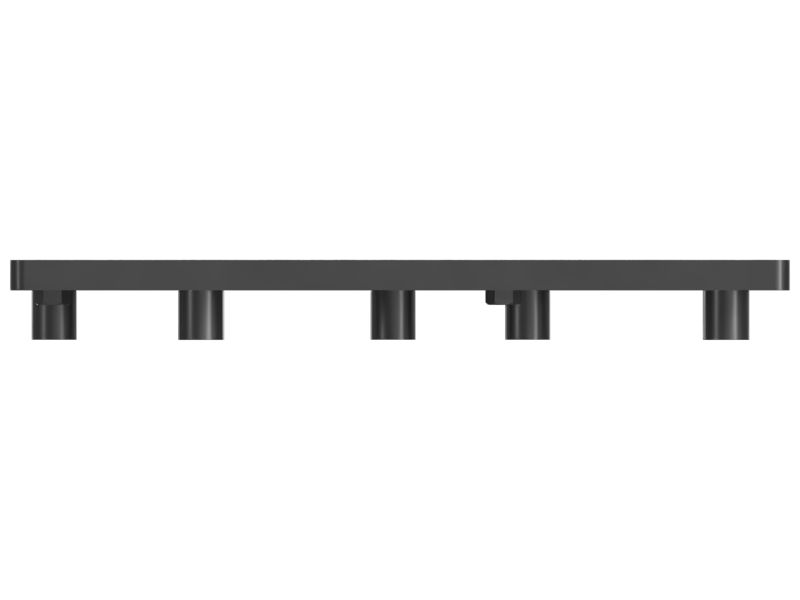

646-1703: Fuel Tank Guard Supporting Plate

A Fuel Tank Guard Supporting Plate is a long sturdy plate used to secure the guard, preventing it from loosening or falling out due to vibrations or other external forces in the fuel tank assembly. It consists of a plate, weld-on bosses, and welded nuts that support the mounting of the guard onto the fuel tank assembly, providing additional support and stability to the guard. It is made of durable metal to withstand the demanding conditions of the fender and offers resistance to impact, vibration, and environmental factors encountered during operation.

Attributes:
• Prevents the excessive movement of the guard and helps withstand external impacts, vibrations, and stresses encountered during operation
• Prevents localized stress concentrations and minimizes the risk of structural failure or deformation
• Provided with 2 weld nuts to fit the fastener of size M12

Applications:
A Fuel Tank Guard Supporting Plate is used in the fuel tank on the fender to provide support for attaching the guard to the fuel tank and help hold the guard which is subjected to vibrations, shocks, or other forces that could cause it to come loose or fall out.

• Thread: M12x1.75

• Weight (kg): 14.61

• Weight (lb): 32.209

• Material: Alloy Steel,Alloy Mixed
