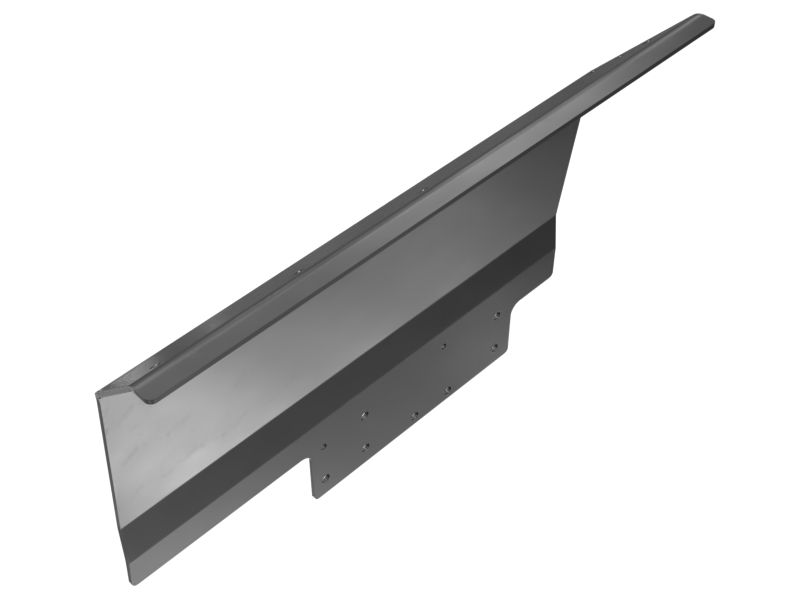

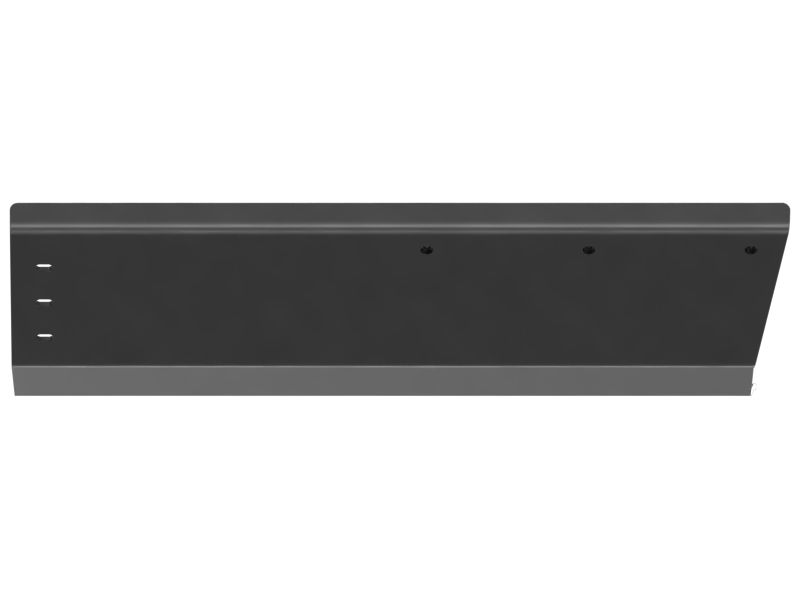

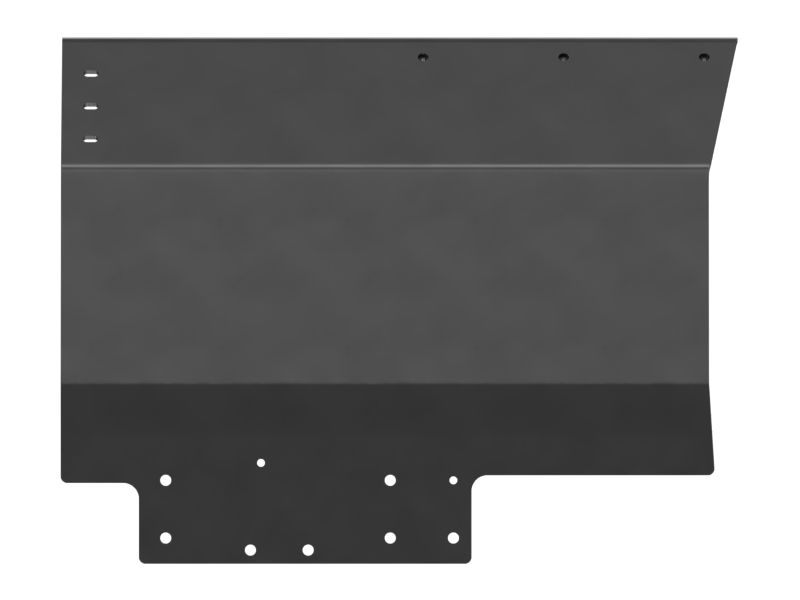

646-1702: Fuel Tank Guard Plate

A Fuel Tank Guard Plate is attached to the fuel tank assembly, covering the fuel tank and its related components that are enclosed within the guard plate. The purpose of the guard plate is to safeguard the internal components from external hazards, such as impacts, debris, or environmental factors. It is a sturdy plate with weld nuts that is bolted with the guard assembly, providing additional support and stability to the structure. It fits the specific shape and size of the fuel tank, ensuring proper coverage and protection.

Attributes:
• Withstands vibrations and shocks, ensuring a stable connection even in demanding working conditions
• Provided with 3 weld nuts to fit the fastener of size M12
• Provided with high strength, wear resistance, and impact resistance

Applications:
A Fuel Tank Guard Plate is used to provide a protective shield to secure the fuel tank and protect the components from the ingress of dirt or other contaminants, ensuring the proper function of the fuel tank.

• Material: Steel,Alloy Mixed

• Thread: M12x1.75

• Overall Length (mm): 1057.8

• Overall Length (in): 41.645

• Overall Height (mm): 822

• Overall Height (in): 32.362

• Thickness (mm): 8

• Thickness (in): 0.31

• Weight (kg): 52.53

• Weight (lb): 115.808
